LQR Series Plate Type Regulator Suppliers

LQR Series Plate Type Regulator

LQR Series Plate Type Regulator

Product Details

0
Views: 160

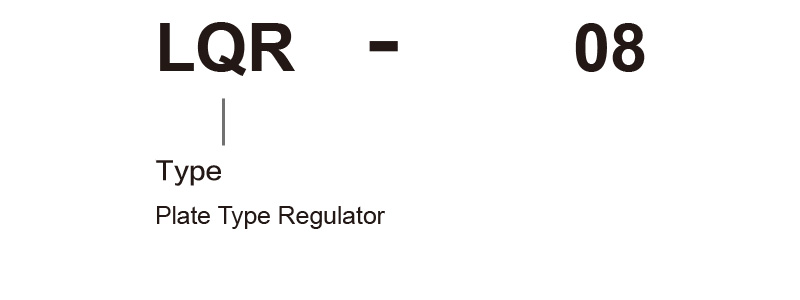

Ordering Code

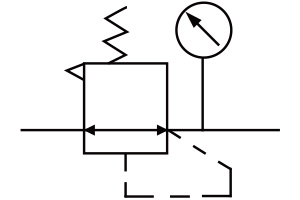

GraPhic symbol





Specification



Model

LQR-08

Operating Fluid

Air

Range of Adjustable Pressure

0.05~0.8MPa

Max. Adjustable Pressure

0.95MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

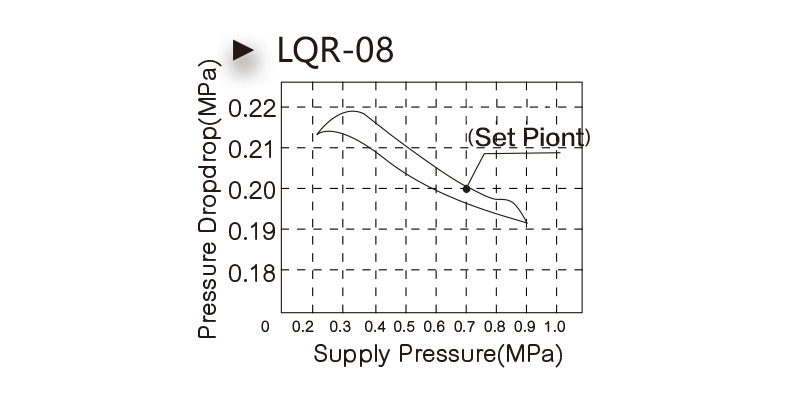

Pressure Character

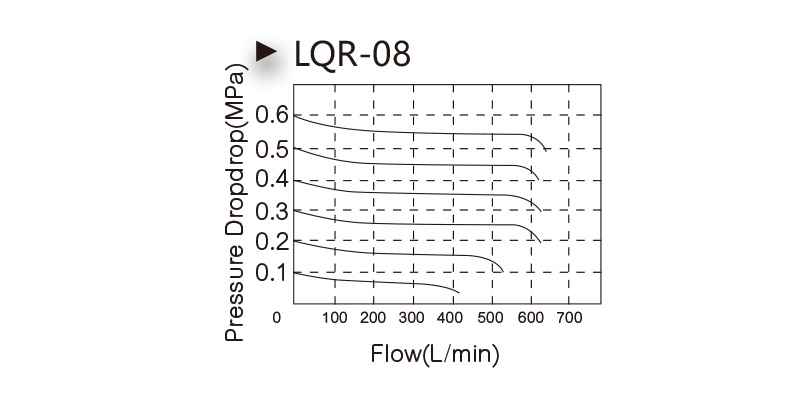

Flowing Character

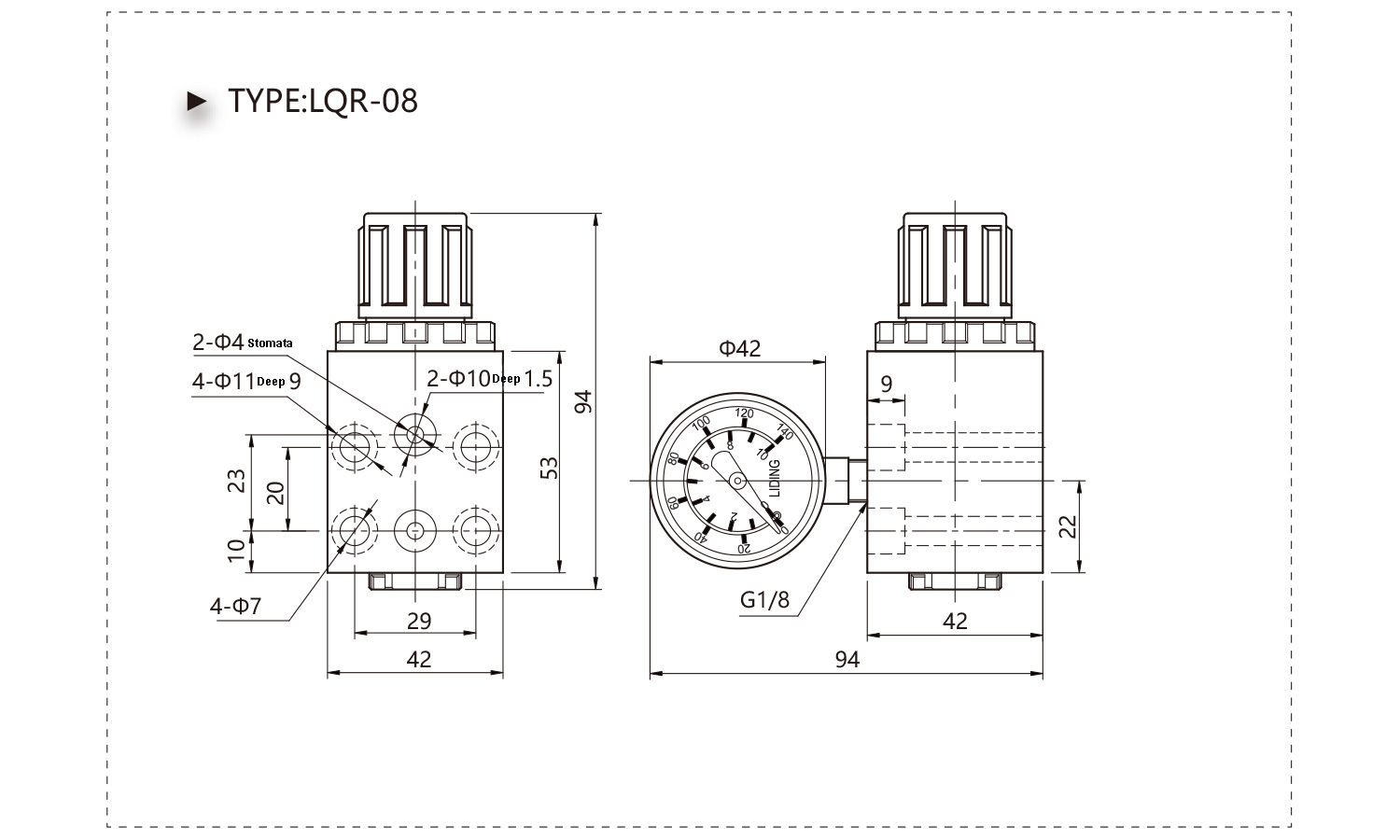

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LQR Series Plate Type Regulator Suppliers and LQR Series Plate Type Regulator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LQR Series Plate Type Regulator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
