LQWS Series Double-Action Cylinder

LQWS Series Double-Action Cylinder

Product Details

0
Views: 129

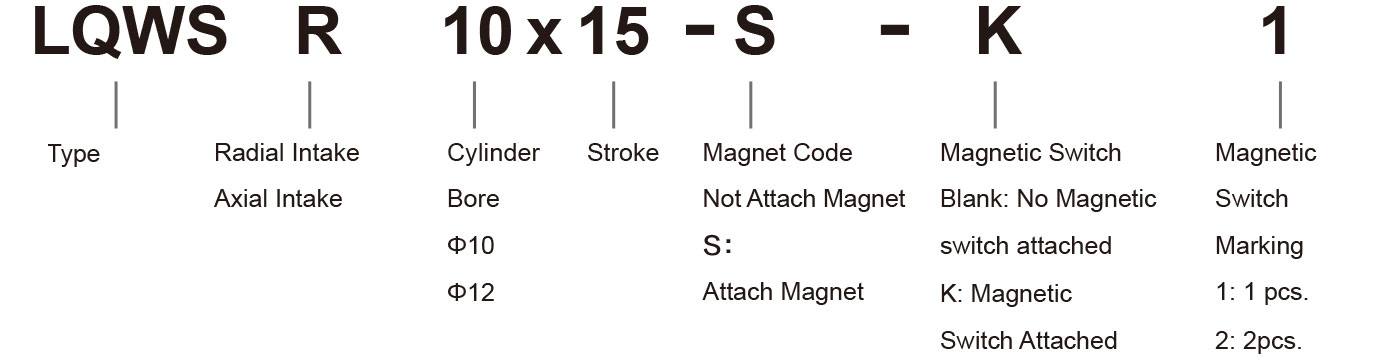

Ordering Code







Specification



Bore (mm)10
Motion PatternDouble Action
Working MediumAir
Buffer FormBuffer Spacer
OperatingVoltage Range2~7Kgf/cm²
Ensured Pressure Resistance10.5Kgf/cm²
Operating Temperature Range0~60℃
LubricationNot Lubrication
Stroke15、30
Joint Pipe BoreM5

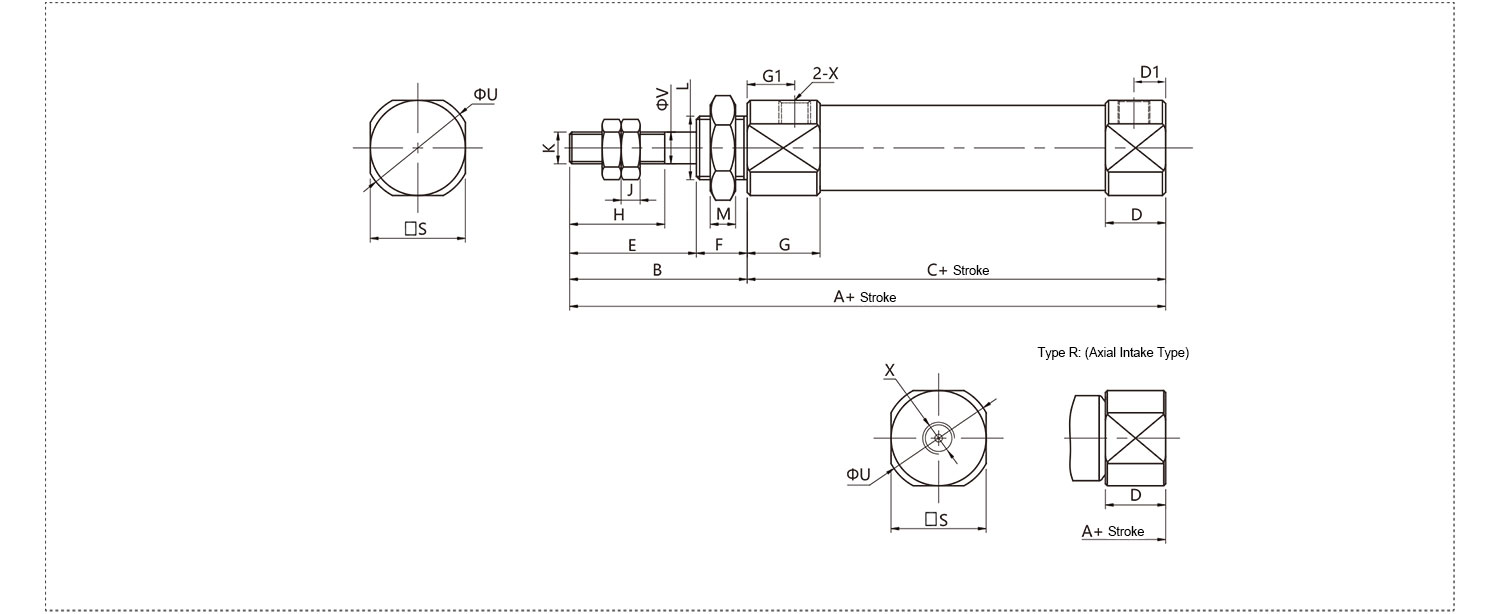

Overall Dimension







Dimension Sheet



Bore (mm)

A

A1

B

C

D

D1

E

F

G

G1

H

I

J

K

L

M

S

U

V

X

10

75

75

28

47

9.5

5

20

8

11.5

7.5

15

11

2.2

M4

M8x1

4

12

14

4

M5

12

74

74

28

46

9.5

5

20

8

11.5

7.5

15

14

4

M5

M10x1

4

15

17

5

M5

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Double Acting Pneumatic Cylinders Manufacturers and Double Acting Pneumatic Cylinders suppliers,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Double Acting Pneumatic Cylinders are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
