QKGFH-1/2 Resistant to LPG High Pressure Pneumatic Control Pipe Valve Suppliers

QKGFH-1/2 Resistant to LPG High Pressure Pneumatic Control Pipe Valve

QKGFH-1/2 Resistant to LPG High Pressure Pneumatic Control Pipe Valve

Product Details

0
Views: 91

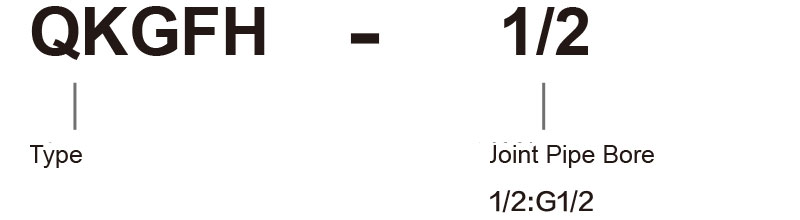

Ordering Code







Synopsis



This is a specially designed two-ventilation control valve for LPG pipeline control with pressure ranging from 0 to 2.5 MPa. The valve is made of high-quality high-pressure resistant material and special sealing material. The control part is made of compact cylinder with effective cross-section area of 78 mm2 and CV value greater than 4.





Specification



ModelQKGFH-1/2
Working MediumLPG
Working-Pressure0~2.5MPa
Operating Temperatur0~55℃
Relative Humidity<85%
Controling-Pressure0.3~0.8MPa
Joint Pipe BoreG1/2

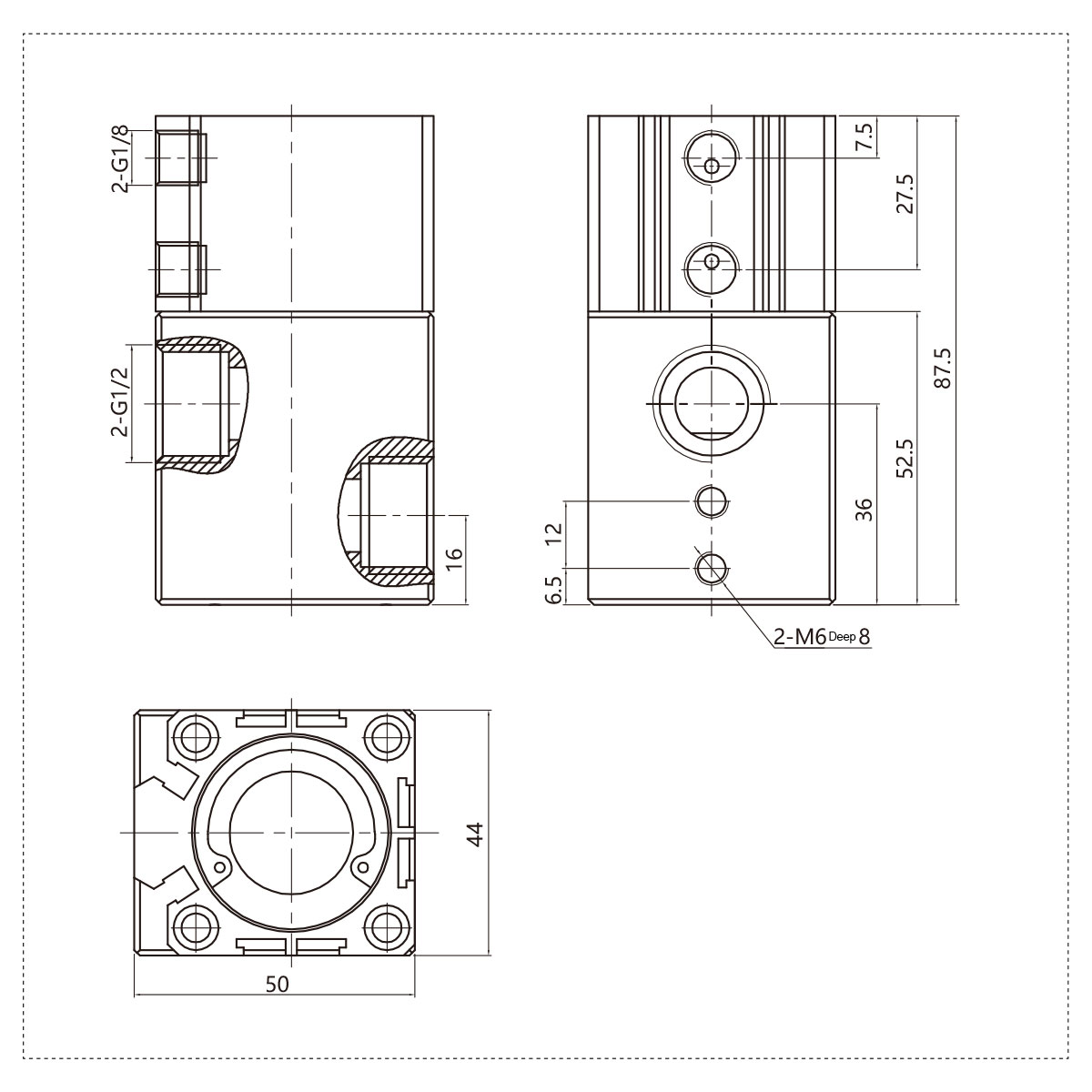

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China QKGFH-1/2 Resistant to LPG High Pressure Pneumatic Control Pipe Valve Suppliers and QKGFH-1/2 Resistant to LPG High Pressure Pneumatic Control Pipe Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our QKGFH-1/2 Resistant to LPG High Pressure Pneumatic Control Pipe Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
