LAL SERIES LUBRICATOR
+
  • LAL SERIES LUBRICATOR

Category:

Air treatment

LAL SERIES LUBRICATOR

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

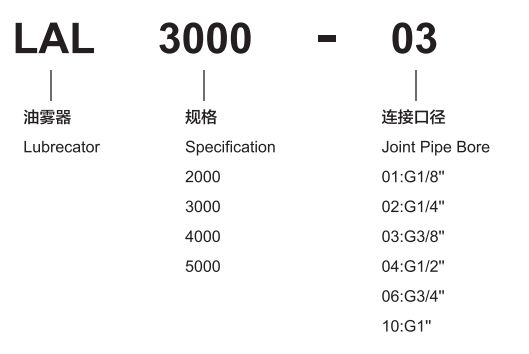

Ordering Code



GraPhic symbol



Specification
Model LAL2000
-01		   LAL2000
   -02		   LAL3000
   -02		 LAL3000
-03		 LAL4000
-03		 LAL4000
-04		 LAL4000
-06		 LAL5000
-06		 LAL5000
-10
Rated Flow 800  800  1700  1700  5000  5000  6300  7000  7000
Joint Pipe Bore G1/8 G1/4 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
Max.Adjustable Pressure 1.0MPa
Ensured Pressure Resistance 1.5MPa
Operating Temperature Range 5~60℃
Recommended Oil Use ISOVG32
Container Material Polycarbonate
Protective Cover Not Available Available

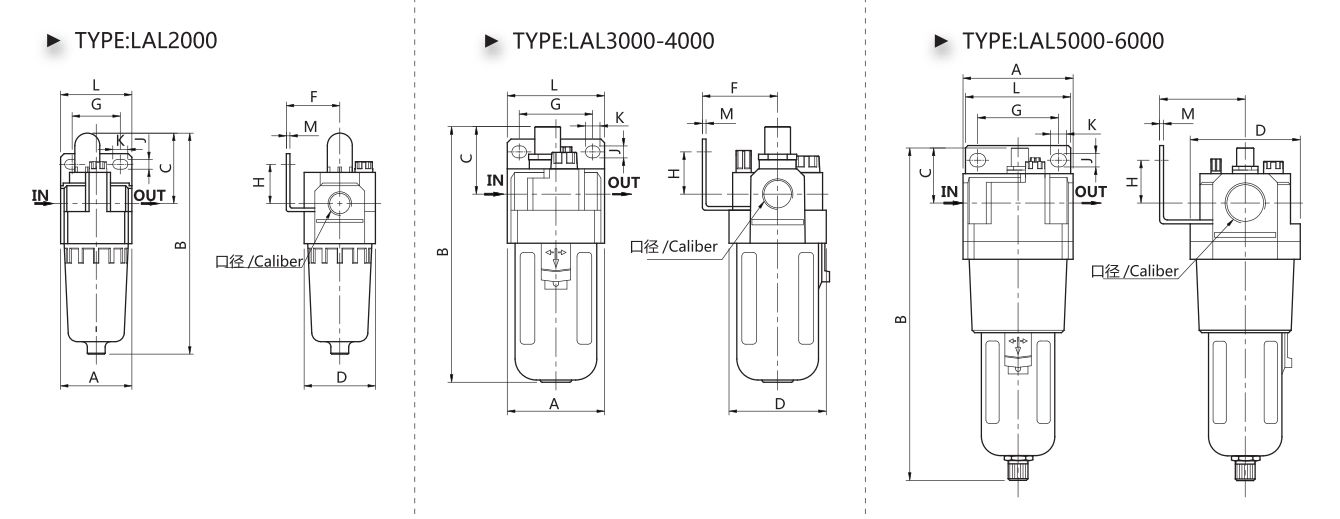

Overall Dimension





Model Bore A B C D F G H J K L
LAL2000 1/8 • 1/4 40  122  38  40  30  27  22  5.4  8.4  40
LAL3000 1/4 • 3/8 53  142  38  53  41  40  23  6.5  8  53
LAL4000 3/8 • 1/2 70  177  41  70  50  54  26  8.5  10.5  70
LAL4000-06 3/4 75  177  39  70  50  54  25  8.5  10.5  70
LAL5000 3/4 • 1 90  254  45  90  70  66  35  11  13  90

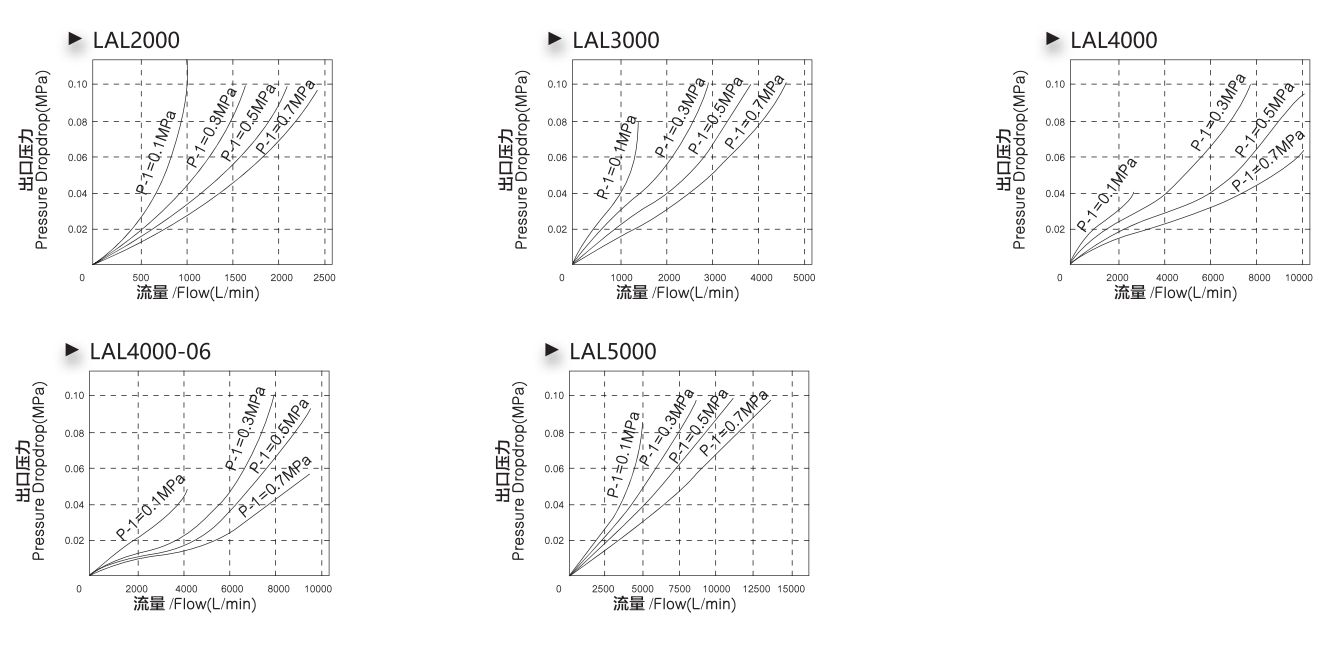

Flowing Character
