QTYH SERIES HIGH PRESSURE REGULATOR

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

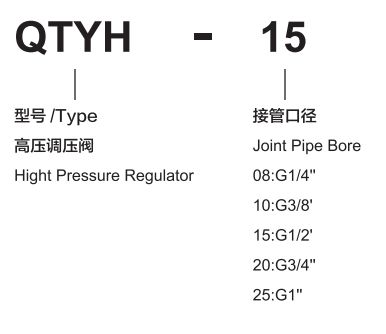

Ordering Code

GraPhic symbol

Specification

Model	QTYH-08	QTYH-10	QTYH-15	QTYH-20	QTYH-25
Operating Fluid	Air
Joint Pipe Bore	G1/4	G3/8	G1/2	G3/4	G1
Range of Adjustable Pressure	0.05~3.0MPa
Max.Adjustable Pressure	4.0MPa
Operating Temperature Range	5~80℃

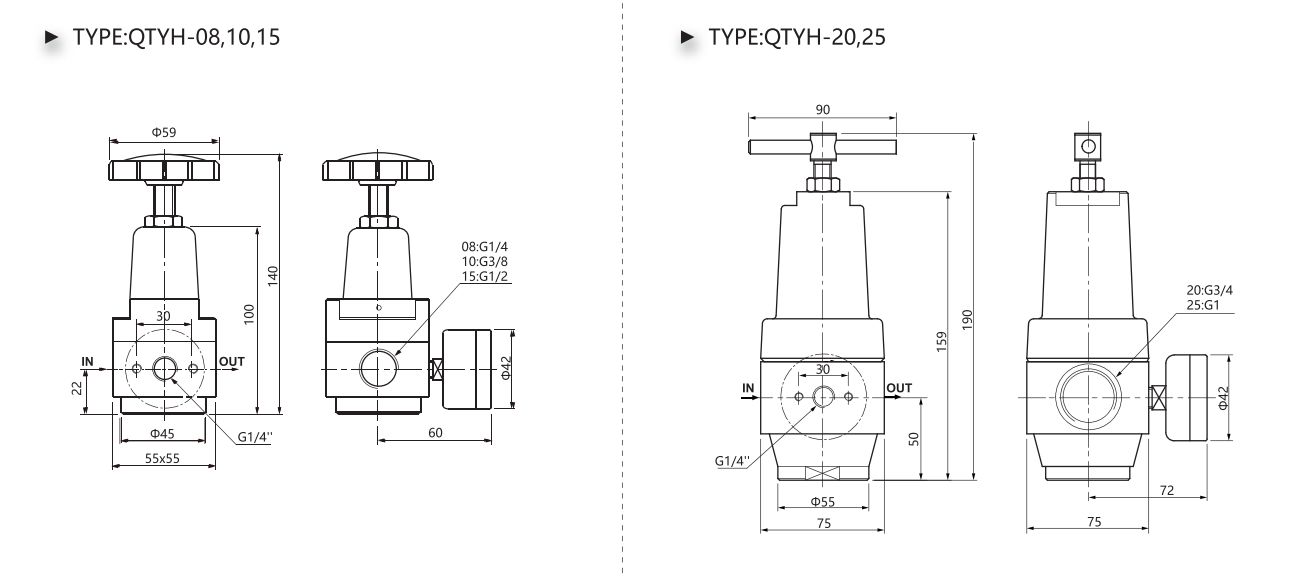

Overall Dimension
