LAF SERIES FILTER
+
  • LAF SERIES FILTER

Category:

Air treatment

LAF SERIES FILTER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

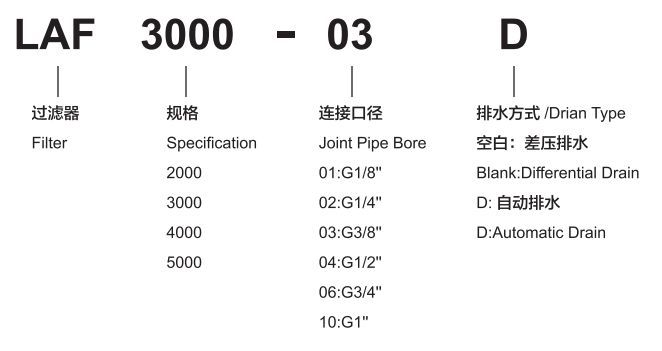

Ordering Code



GraPhic symbol



Specification
Model LAF2000
-01		 LAF2000
-02		 LAF3000
-02		 LAF3000
-03		 LAF4000
-03		 LAF4000
-04		 LAF4000
-06		 LAF5000
-06		 LAF5000
-10
Rated Flow 750  750  1500  1500  4000  4000  6000  7000  7000
Joint Pipe Bore G1/8 G1/4 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
Fitering Eliment Roughness 25μ
Max.Adjustable Pressure 1.0MPa
Ensured Pressure Resistance 1.5MPa
Operating Temperature Range 5~60℃
Container Material Polycarbonate
Protective Cover Not Available Available
Drain Function Differential Drain Differential Drain、Automatic Drain

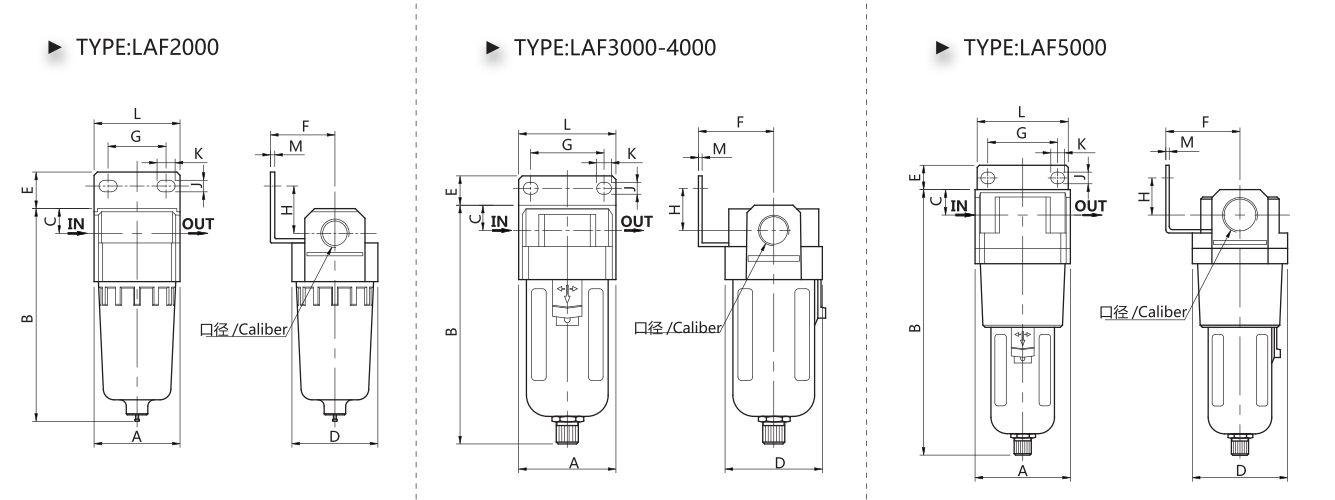

Overall Dimension





Model Bore A B C D E F G H J K L
LAF2000 1/8 • 1/4 40  97.5  11  40  17  30  27  22  5.4  8.4  40
LAF3000 1/4 • 3/8 53  132.5  14  53  16  41  40  23  6.5  8  53
LAF4000 3/8 • 1/2 70  168.5  18  70  17  50  54  26  8.5  10.5  70
LAF4000-06 3/4 75  172.5  20  70  14  50  54  25  8.5  10.5  70
LAF5000 3/4 • 1 90  247.5  24  90  23  70  60  35  11  13  90

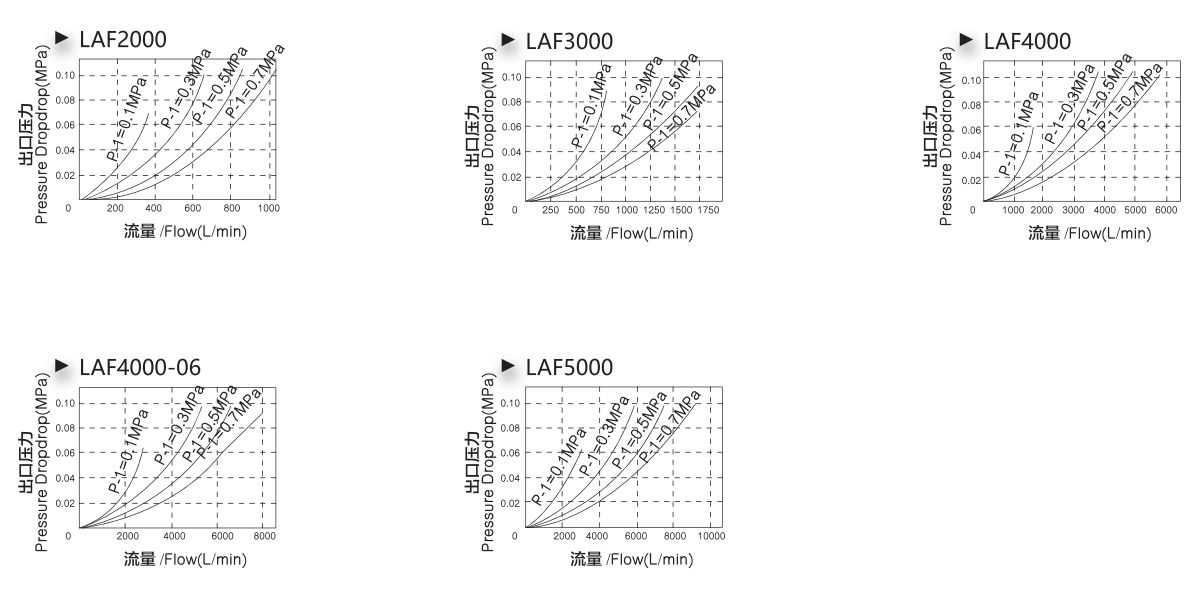

Flowing Character
