LAC SERIES COMBINATION(LAF.LAR.LAL COMBINATION)
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

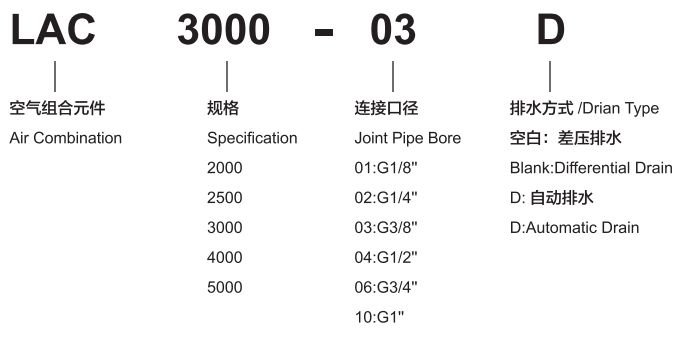

Ordering Code
GraPhic symbol
Specification
| Model | LAC2000 -01 |
LAC2000 -02 |
LAC2500 -02 |
LAC2500 -03 |
LAC3000 -02 |
LAC3000 -03 |
LAC4000 -03 |
LAC4000 -04 |
LAC4000 -06 |
LAC5000 -06 |
LAC5000 -10 |
|
| Rated Flow | 500 | 500 | 1500 | 1500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | G3/8 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G3/4 | G1 | |
| Filtering Eliment Roughness | 25μ | |||||||||||
| Highest Working Pressure | 1.0MPa | |||||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||||
| Operating Temperature Range | 5~60℃ | |||||||||||
| Range of Adjustable Pressure | 0.05~0.85MPa | |||||||||||
| Recommended Oil Use | ISOVG32 | |||||||||||
| Container Material | Polycarbonate | |||||||||||
| Protective Cover | Not Available | Available | ||||||||||
| Drain Function | Differential Drain | Differential Drain、Automatic Drain | ||||||||||
| Nalve Type | With Overflow | |||||||||||
| Assembly | Filter | LAF2000-01 | LAF2000-02 | LAF3000-02 | LAF3000-03 | LAF3000-02 | LAF3000-03 | LAF4000-03 | LAF4000-04 | LAF4000-06 | LAF5000-06 | LAF5000-10 |
| Regulator | LAR2000-01 | LAR2000-02 | LAR2500-02 | LAR2500-03 | LAR3000-02 | LAR3000-03 | LAR4000-03 | LAR4000-04L | LAR4000-06 | LAR5000-06 | LAR5000-10 | |
| Lubricator | LAL2000-01 | LAL2000-02 | LAL3000-02 | LAL3000-03 | LAL3000-02 | LAL3000-03 | LAL4000-03 | LAL4000-04 | LAL4000-06 | LAL5000-06 | LAL5000-10 | |

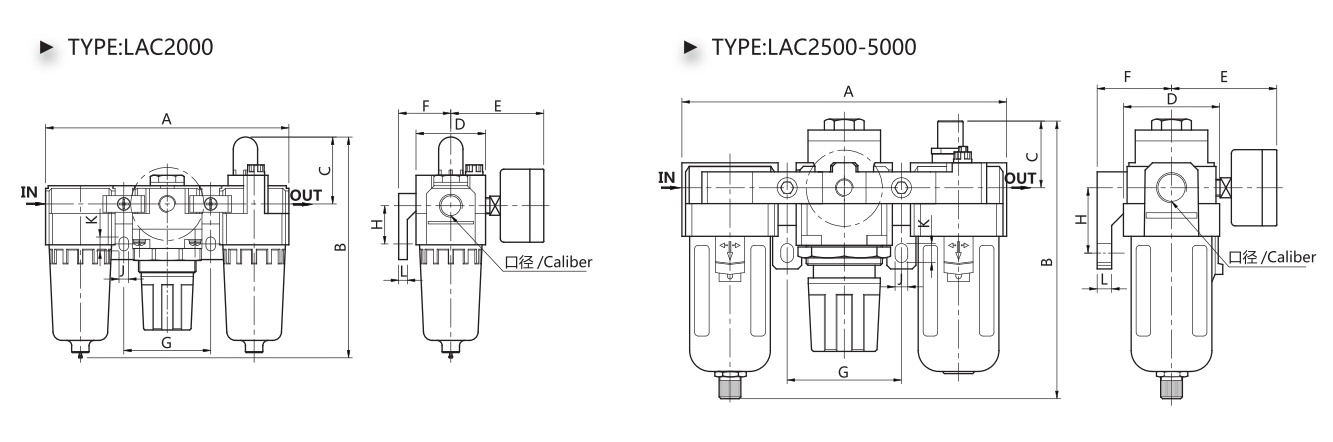

Overall Dimension
| Model | Bore | A | B | C | D | E | F | G | H | J | K | L |
| LAC2000 | 1/8 • 1/4 | 140 | 125 | 38 | 40 | 56.8 | 30 | 50 | 24 | 5.5 | 8.5 | 5 |
| LAC2500 | 1/4 • 3/8 | 181 | 156.5 | 38 | 53 | 60.8 | 41 | 64 | 35 | 7 | 11 | 7 |
| LAC3000 | 1/4•3/8 | 181 | 156.5 | 38 | 53 | 60.8 | 41 | 64 | 35 | 7 | 11 | 7 |
| LAC4000 | 3/8•1/2 | 238 | 191.5 | 41 | 70 | 65.5 | 50 | 84 | 40 | 9 | 13 | 7 |
| LAC4000-06 | 3/4 | 253 | 193 | 40.5 | 70 | 69.5 | 50 | 89 | 40 | 9 | 13 | 7 |
| LAC5000 | 3/4•1 | 300 | 271.5 | 48 | 90 | 75.5 | 70 | 105 | 50 | 12 | 16 | 10 |

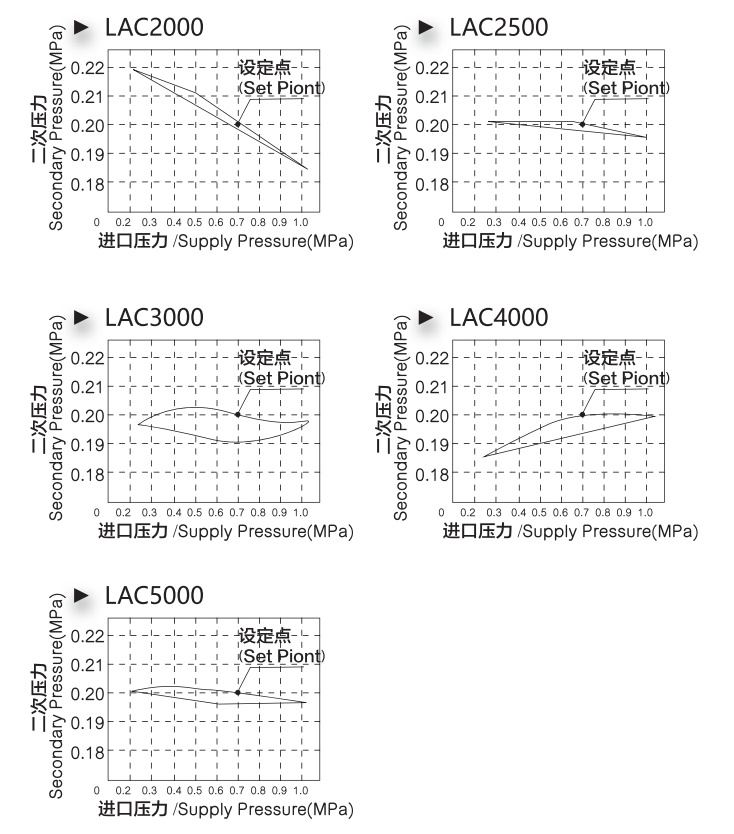

Pressure Character

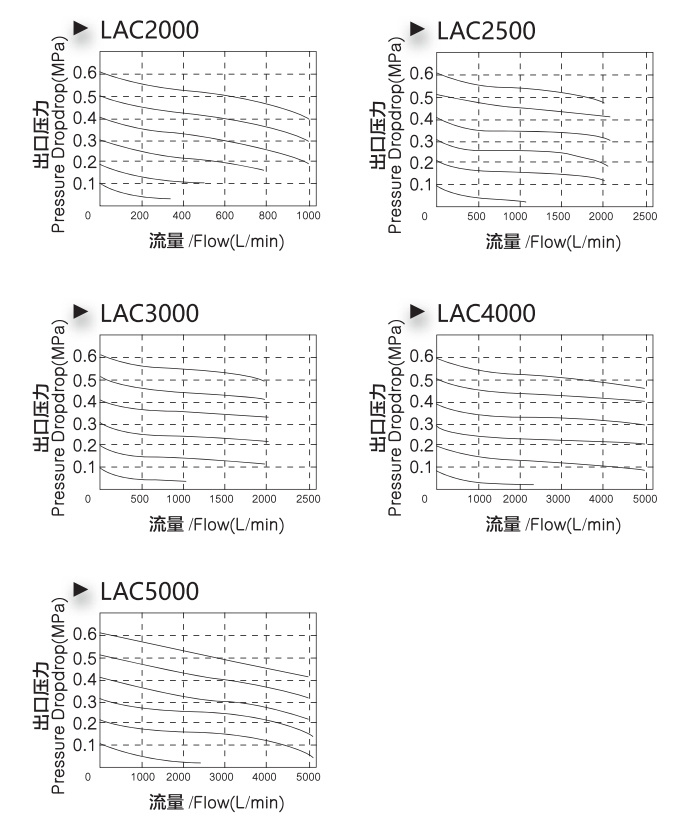

Flowing Character
