WL SERIES INK DEDICATED MINIATURE SOLENOID VALVEWL SERIES INK DEDICATED MINIATURE SOLENOID VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

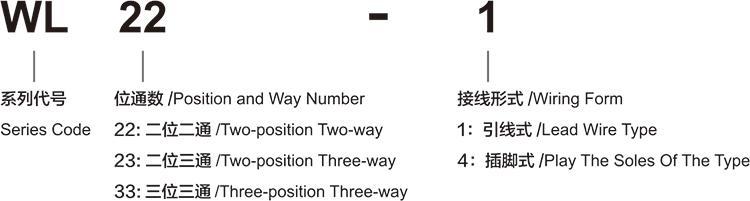

Ordering Code
Synopsis
The valve is a new product designed by our company.It is a direct-acting solenoid valve.Its plastic parts,seals and ink contacts are made of special ink-resistant materials.It is refined by advanced technology.It has a concise appearance,beautiful appearance,sensitive switch,good stability,large flow rate,long service life.It is widely used in special inks such as textiles in the field.
Specification
| Model | WL22-1 | WL23-4 | WL33-1 |
| Working Medium | Ink | ||
| Operating Temperature | -5~50℃ | ||
| Nominal Diameter | Ø0.8mm | ||
| Medium Temperature | 5~50℃ | ||
| 0.5MPa Flow Rate | ≥25L/min | ||
| Min.Operating Frequency | Cycle/Day | ||
| Lubrication | Not Lubrication | ||
| Working-Pressure | 0~0.5MPa | ||
| Voltage Range | DC24V | ||
| Allowable Voltage | ±10% | ||
| Power | 4W±0.2W | ||
| Electrical Entry | Lead Wire Type、Play The Soles Of The Type | ||
| Connection Mode | Plate Connection Type | ||

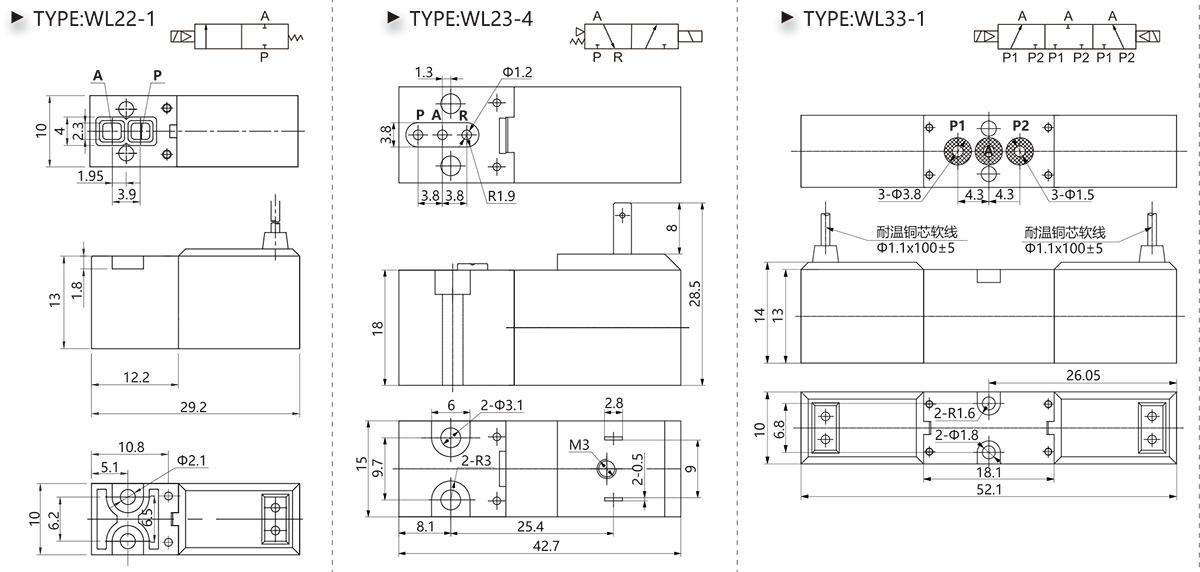

Overall Dimension

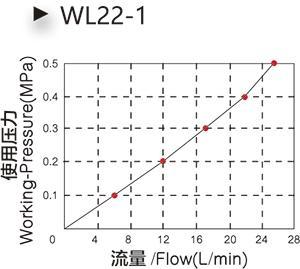

Flowing Character
