WZA EMBEDDING TYPE MINIATURE SOLENOID VALVE

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

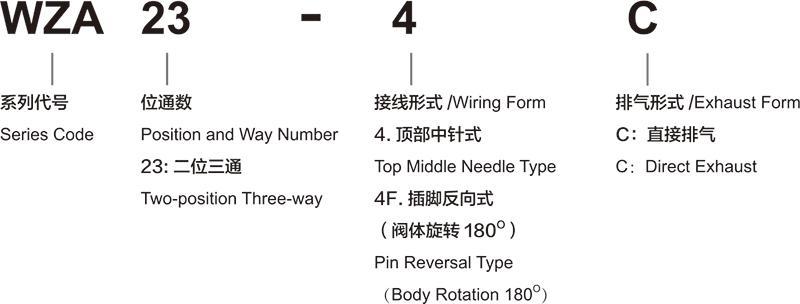

Ordering Code

Graphic Symbol

Synopsis

The valve is a two-position three-way direct-acting miniature solenoid valve,which uses high-quality materials,reasonable structure design and advanced technology to make the product more stable,lower power consumption,more concise appearance,and is widely used in mechanical manufacturing,textile and other air control fields.

Model	WZA23-4C
Working Medium	40 Micron Filtered Air
Operating Temperature	-5~50℃
Nominal Diameter	00.7mm
Response time(ms)	≤10ms
Max Operating Fequency	Cycle/Sec
Min.Operating Frequency	Cycle/Day
Lubrication	Not Lubrication
Working-Pressure	0.2~0.7MPa
Voltage Range	DC24V
Allowable Voltage	±10%
Power Consumption	0.7W
Connection Mode	Embedding Type

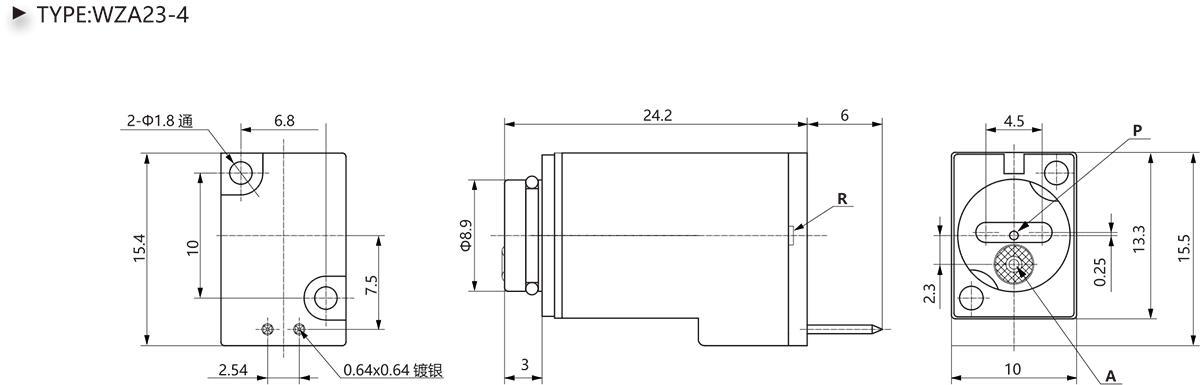

Overall Dimension

Keywords:

Air treatment

Control components

Actuators

Gas control valves

Auxiliary components

Needle Textile Machinery

Micro Solenoid Valves
