WZ SERIES MINI-VALVE WITH LOW POWER AND LARGE FLUX
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

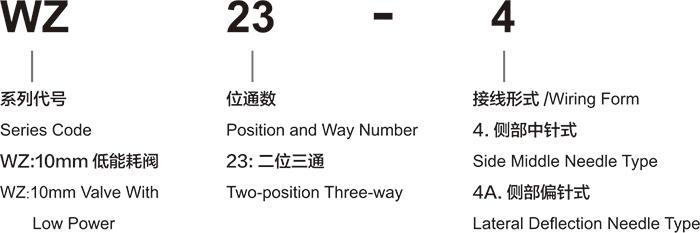

Ordering Code
Graphic Symbol
Synopsis
The valve is a new product designed by our company.It is a WI valve with ultra-low energy consumption.The coil power is reduced to (4W)0.3W after saving energy by high frequency square wave.The valve body is made of high-quality engineering plastics.It is refined by special sealing material and selection process.It has simple appearance,beautiful appearance,small volume,sensitive reversal,good stability and high frequency.Low power consumption,lower temperature rise,large flow,long life,widely used in machinery manufacturing,textile and other fields.
Specification
| Model | WZ23-4 | WZ23-4A |
| Working Medium | 40 Micron Filtered Air | |
| 工作温度/Operating Temperature | -5~50℃ | |
| Nominal Diameter | Ø1mm | |
| 0.5 MPa Flow Rate | ≥30L/min | |
| Response time(ms) | ≤10ms | |
| Max Operating Frequency | Cycle/Sec | |
| Min.OperatingFrequency | Cycle/Day | |
| Lubrication | Not Lubrication | |
| Manual Override | Not Lubrication | |
| Working-Pressure | 0~0.7MPa | |
| Voltage Range | DC24V | |
| Alowable Voltage | ±10% | |
| Power Consumption | 4W/0.3W | |
| Connection Mode | Plate Connection Type | |

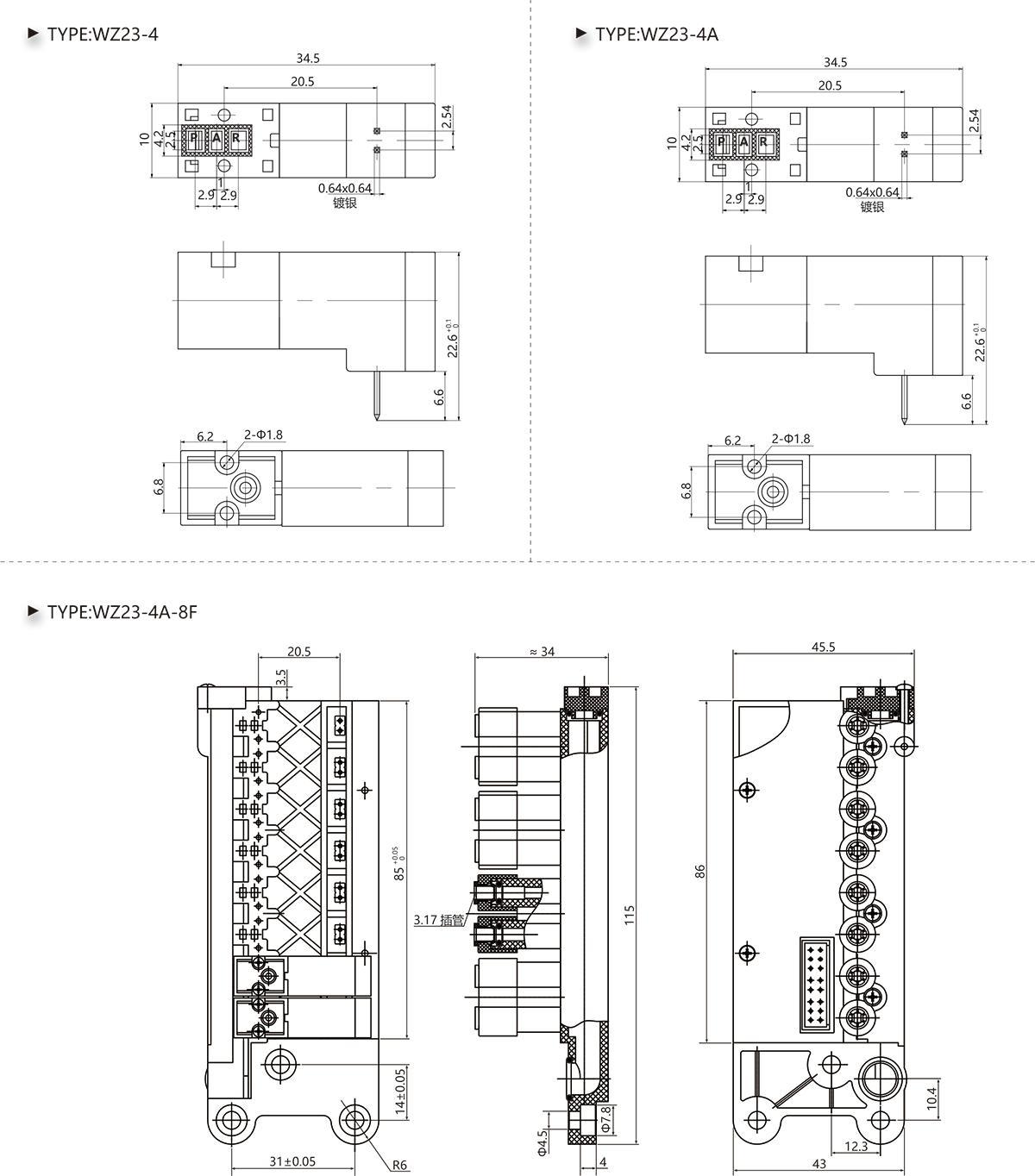

Overall Dimension
