WI SERIES MINI-VALVE WITH LOw POWER AND LARGE FLUX
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

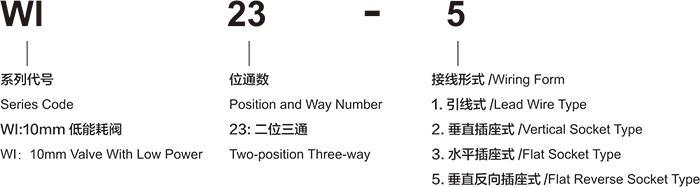

Ordering Code
Graphic Symbol
synopsis
The valve is a two-position three-way 10mm miniature solenoid valve.Its intake direction is different from that of the conventional WF23 series valves.There are many different connection modes.When the power of the valve is 1W and the flow rate is more than 30L/min at 0.5MPa,the temperature rise is low,the performance is stable and the service life is long.
Specification
| Model | W123-2 | Wl23-3 | Wl23-5 |
| Working Medium | 40 Micron Filtered Air | ||
| Operating Temperature | -5~50℃ | ||
| Medium Temperature | 5~50℃ | ||
| Nominal Diameter | O1mm | ||
| 0.5 MPa Flow Rate | ≥30L/min | ||
| Response time(ms) | ≤10ms/10ms orLess | ||
| Max.Operating Frequency | Cycle/Sec | ||
| Min.Operating Frequency | Cycle/Day | ||
| Lubrication | Not Lubrication | ||
| Manual Override | Not Lubrication | ||
| Electrical Entry | Lead Wire Type | ||
| Working-Pressure | 0~0.7MPa | ||
| Voltage Range | DC24V | ||
| Allowable Voltage | ±10% | ||
| Power Consumption | <1W | ||
| Connection Mode | Plate Connection Type | ||

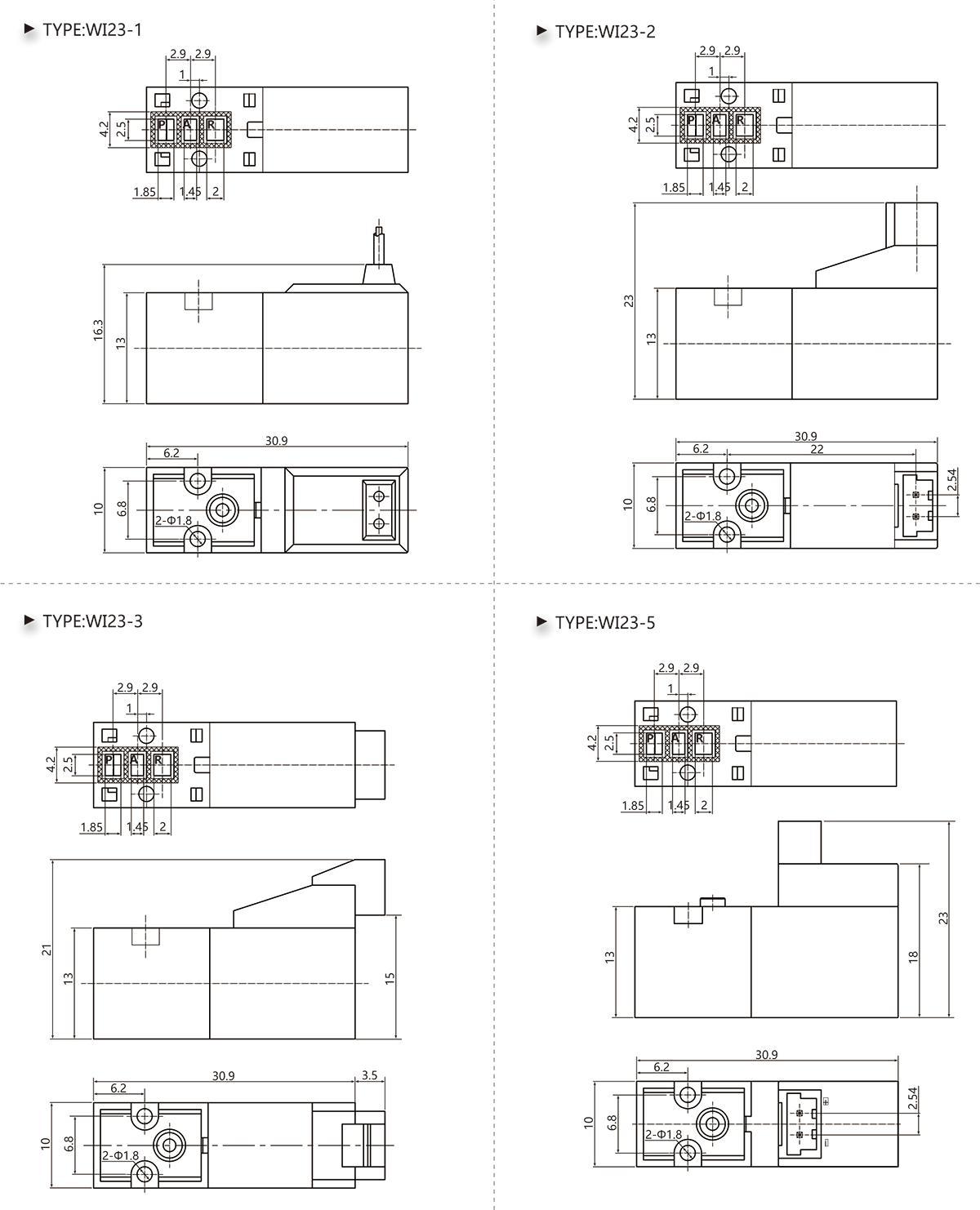

Overall Dimension

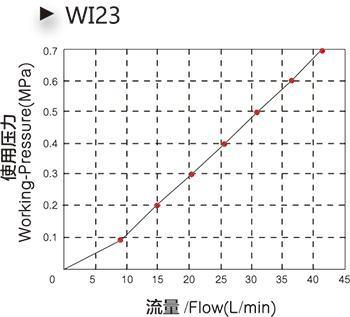

Flowing Character
