WF SERIES MINI-VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

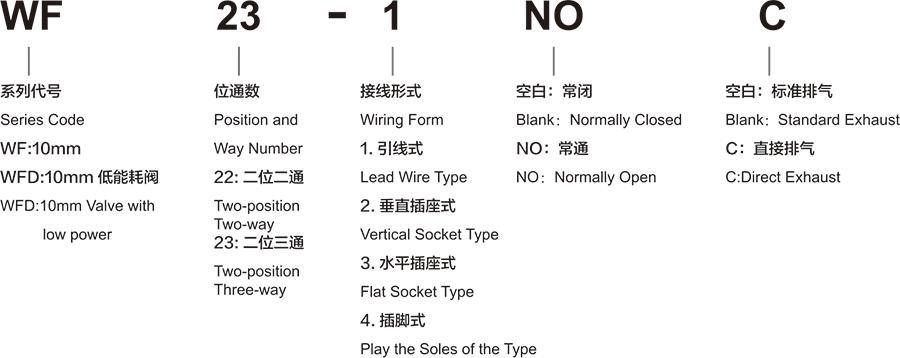

Ordering Code
Synopsis
WF series micro-valve is a new type of direction control component designed and manufactured by our company.It belongs to our patented product.Patent No.ZL200810163094.9.The micro-valve is refined with high-quality materials and advanced technology.It has beautiful appearance,small power,low energy consumption and stableperformance.It is widely used in the field of air-way direction control such as textile machinery.
Specification
| Model | WF23-1C | WF23-1NO | WFD23-2C | |
| WF23-2C | WF23-2NO | |||
| WF23-3C | WF23-3NO | WFD23-3C | ||
| WF23-4C | WF23-4NO | |||
| Working Medium | 40 Micron Filtered Air | |||
| Operating Temperature | -5~50℃ | |||
| Response time(ms) | ≤10ms/10ms or Less | |||
| Max.Operatng Frequency | Cycle/Sec | |||
| Min.OperatingFrequency | Cycle/Day | |||
| Lubrication | Not Lubrication | |||
| Manual Override | Not Lubrication | |||
| Enclosure | Dust-Proof | |||
| Electrical Entry | Lead Wire Type/Vertical Socket Type/Flat Socket Type/Play the Soles of the Type | |||
| Working-Pressure | 0~0.7MPa | |||
| Standard Voltage | DC24V.12V.6V | DC24V.12V | ||
| Alowable Voltage | ±10% | |||
| Power Consumption | 1.3W | ≤0.7W | ||
| Joint Pipe Bore | Plate Connection Type | |||

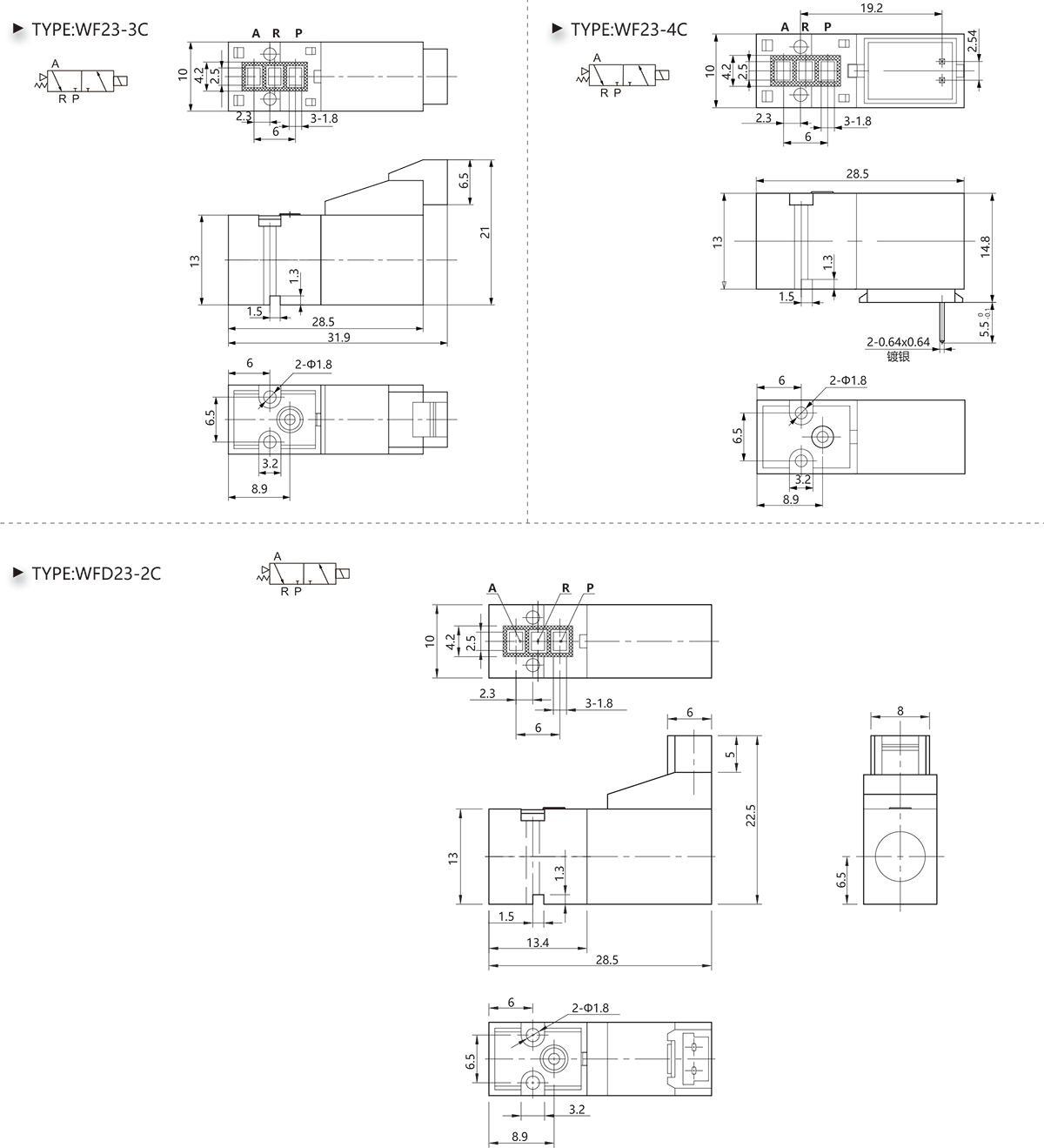

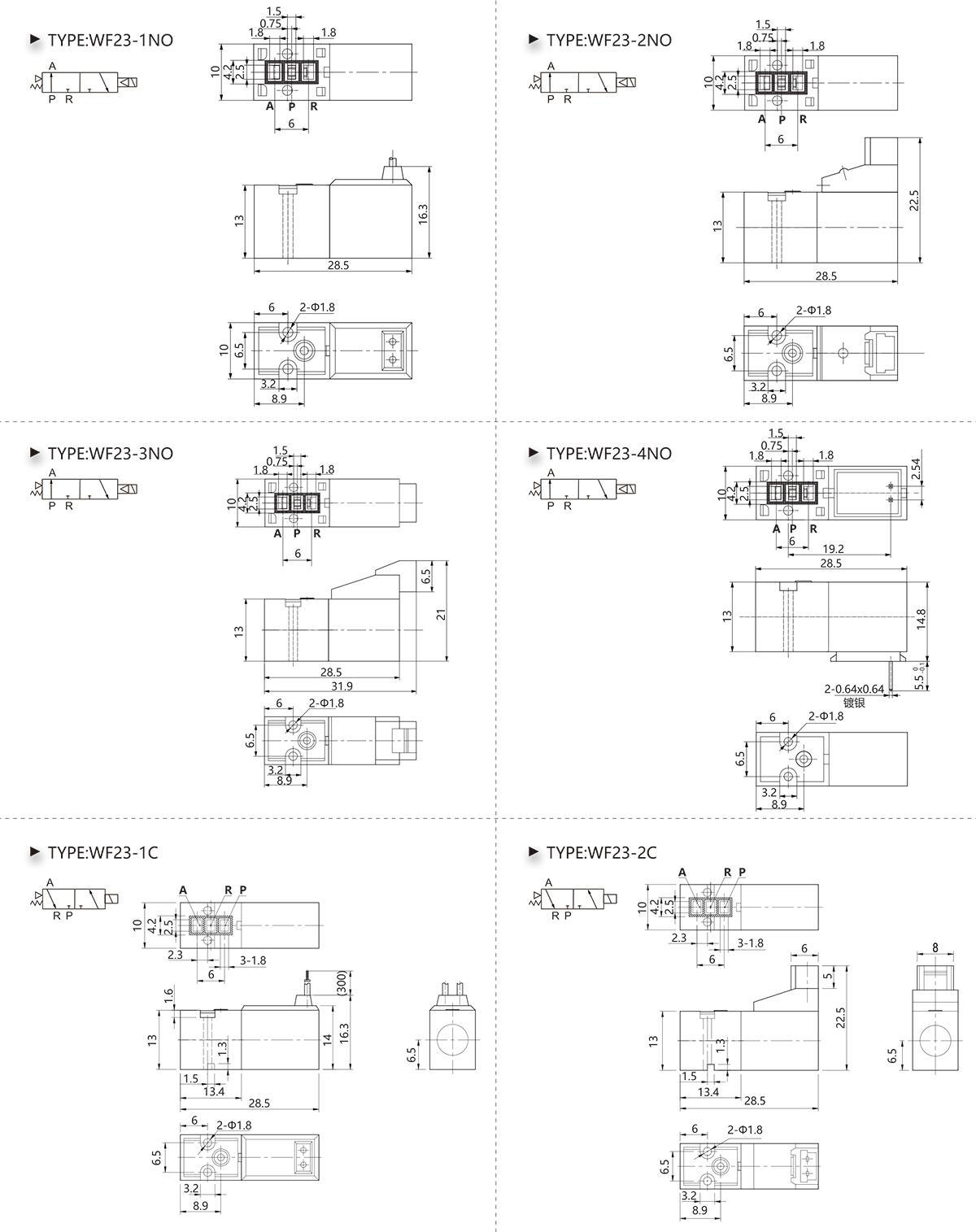

Overall Dimension

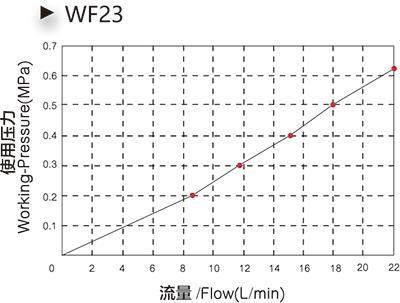

Flowing Character
