WS SERIES MINI-VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

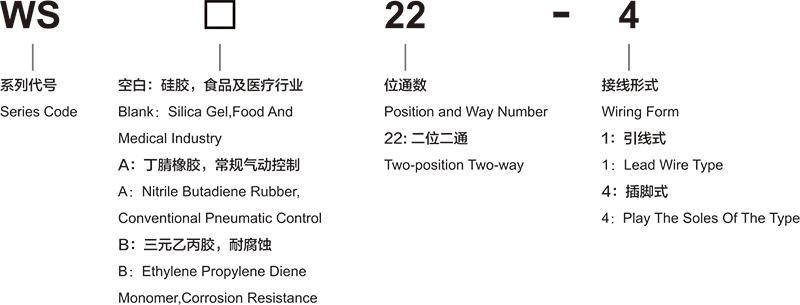

Ordering Code
Graphic Symbol
Synopsis
The valve is a two-position two-way direct-acting large flow miniature solenoid valve.It uses high-quality materials,reasonable structure design and advanced manufacturing technology to make the product performance more stable.The 3 mm diameter guarantees its flow rate of more than 140 L/min a 0.5MPa.it is widely used in textile machinery manufacturing,medical machinery and food industry.ink spraying and other air control fields.
Specification
| Model | WS22-1 | WS22-4 | WSA22-1 | WSB22-1 |
| Working Medium | Water | |||
| Operating Temperature | -5~50℃ | |||
| Medium Temperature | 5~50℃ | |||
| Nominal Diameter | O3mm | |||
| 0.5 MPa Flow Rate | ≥140L/min | |||
| Min.Operating Frequency | Cycle/Day | |||
| Lubrication | Not Lubrication | |||
| Electrical Entry | Lead Wire Type Play the Soles of the Type | |||
| Working-Pressure | 0~0.5MPa | |||
| NVoltage Range | DC24V | |||
| Alowable Voltage | ±10% | |||
| Power | 8W±10% | |||
| Connection Mode | Plate Connection Type | |||
| Sealing Material | Si | NBR | EPDM | |

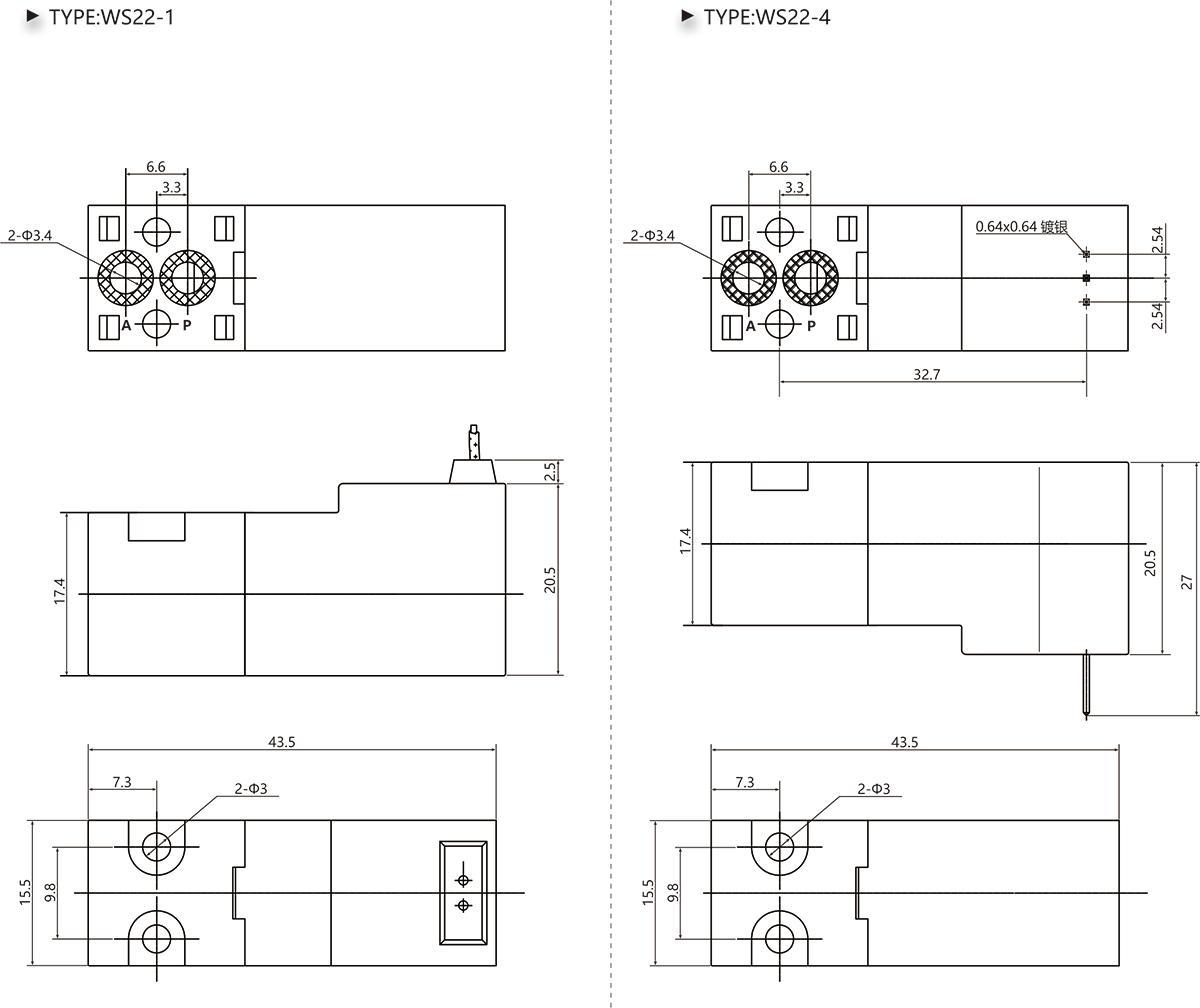

Overall Dimension

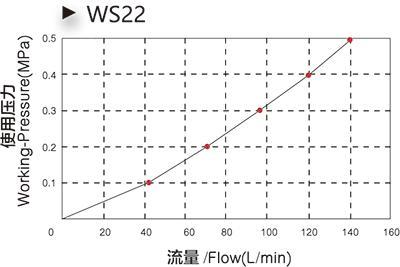

Flowing Character
