LQ110 SERIES GROUP VALVE
LQ110 SERIES GROUP VALVE
+
  • LQ110 SERIES GROUP VALVE
  • LQ110 SERIES GROUP VALVE

Category:

Control components

LQ110 SERIES GROUP VALVE

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

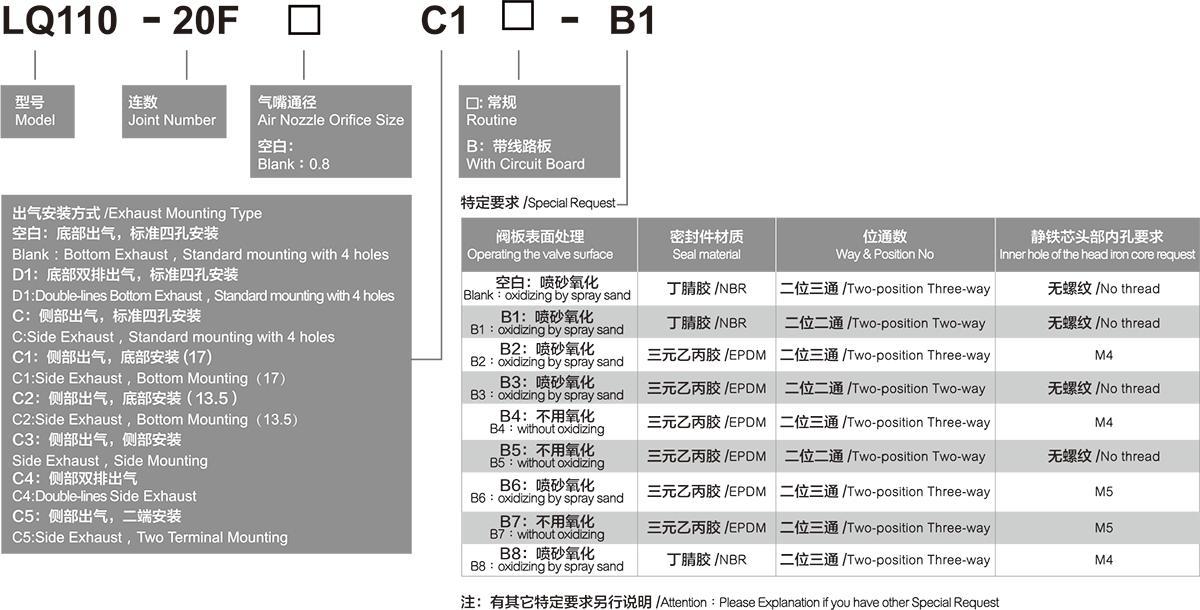

Ordering Code





Specification

ModelLQ110-□FLQ110-□FC3
Working Medium40 Micron Filtered Air
The Position CountingTwo-position Three-way
Joint Pipe BoreM5
Operating Temperature-5~60℃
Working-Pressure0~0.8MPa
Max.Pressure Resistance1.2MPa
Standard VoltageAC220V& DC24V
Noltage Range±15%
Max. Testing Voltage1500V
Proterction ClassIP65(DIN40050)
InsulationGrade F
HighestAction Frequency5 Times Per Second
Use Life5 Million Times

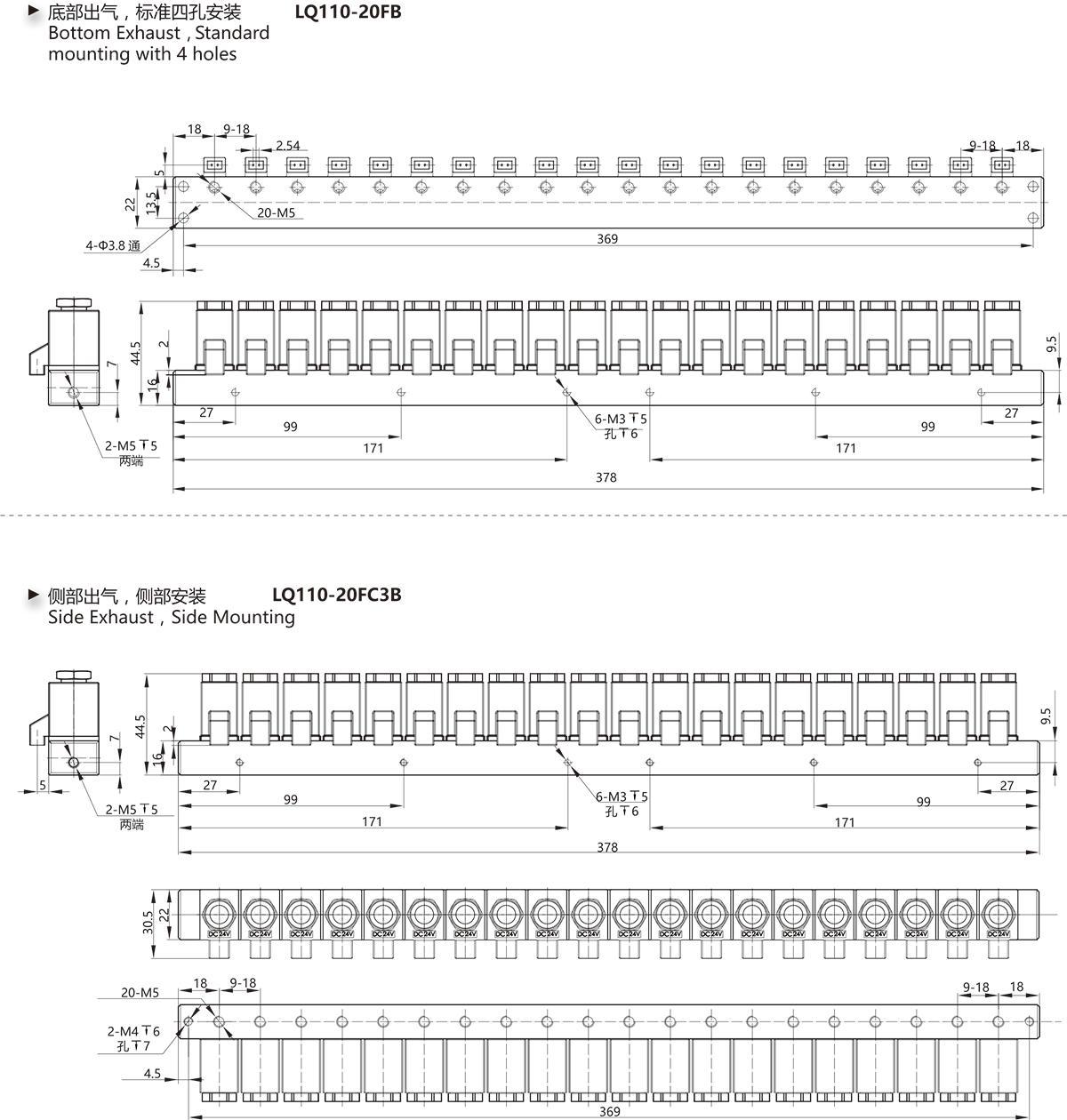

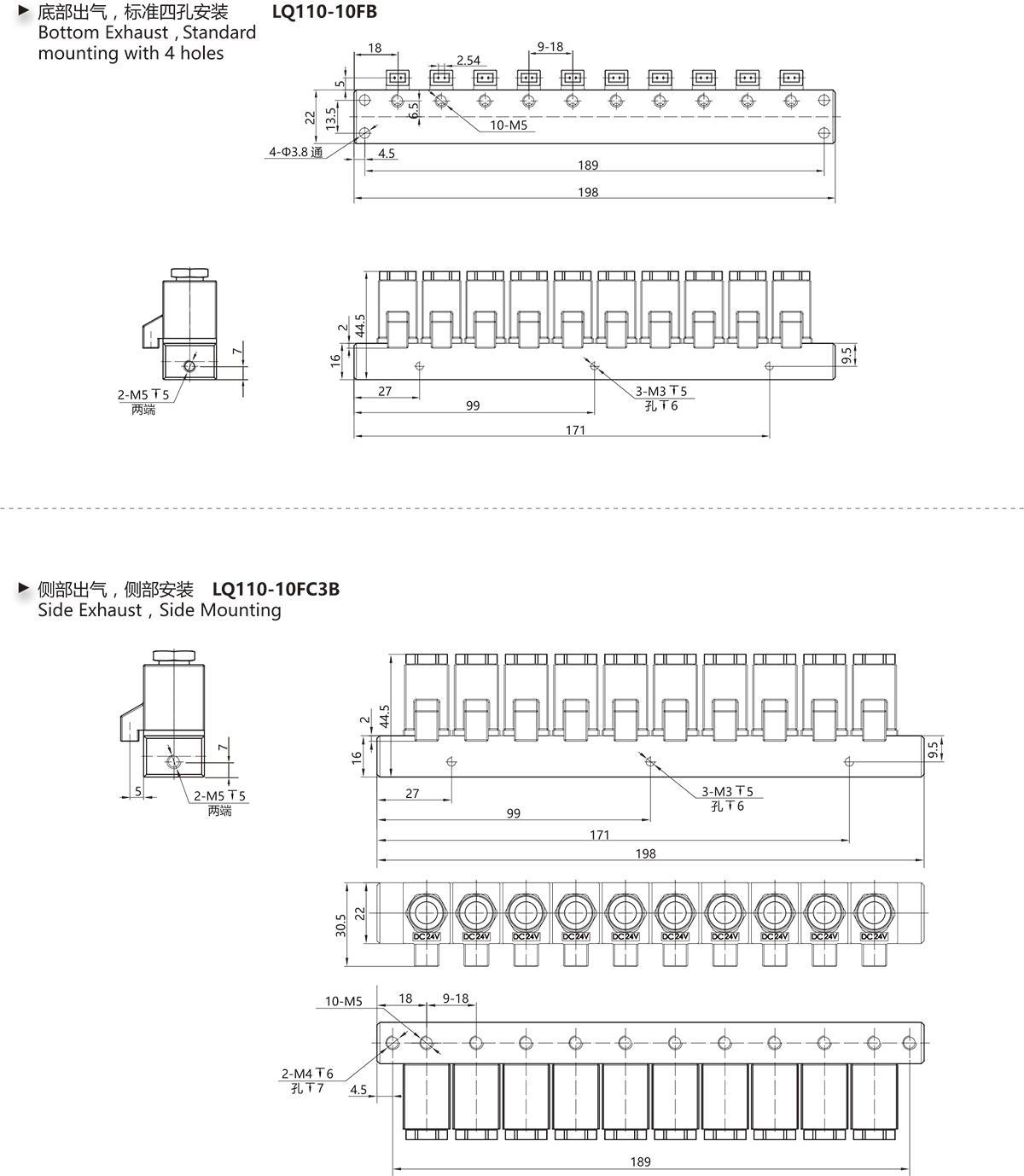

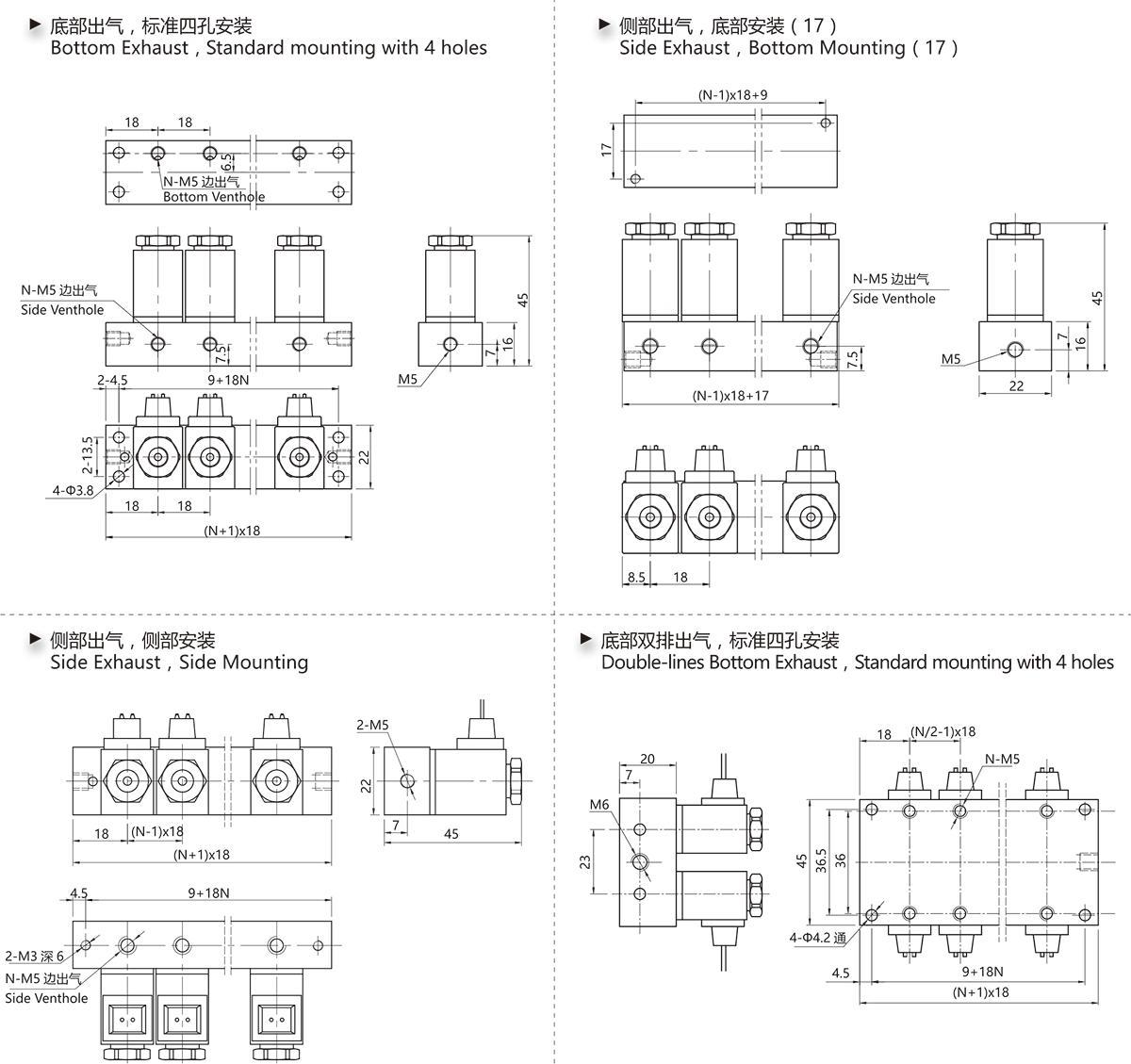

Overall Dimension

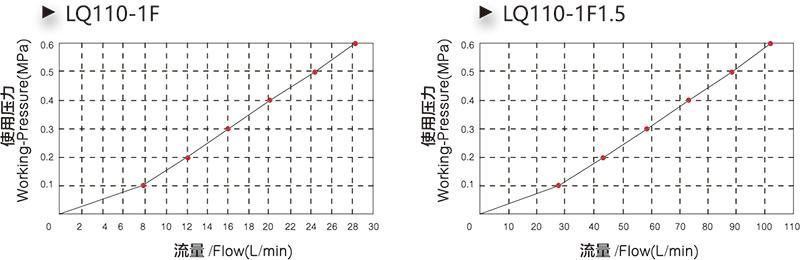

Flowing Character
