LVF、VZ SERIES SOLENOID VALVE,PNEUMATIC CONTROL VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

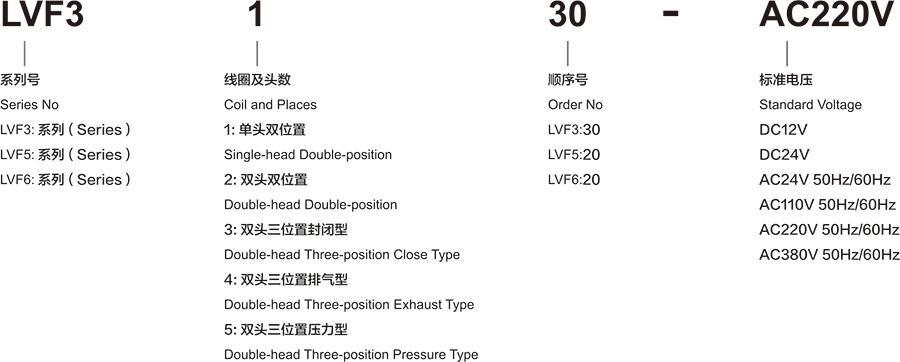

Ordering Code
Specification
| Model | LVF3130 | LVF3230 | LVF33(4/5)30 | LVF5120 | LVF5220 | LVF53(4/5)20 | LVZ5120 | LVZ5220 | LVZ53(415)20 |
| Working Medium | 40 Micron Filtered Air | ||||||||
| Motion Pattern | Inner Guide Type | ||||||||
| Joint Pipe Bore | Inlet air = Outlet air=G1/4 Exhaust=G1/8 | Inlet air = Outlet air=Exhaust=G3/8 | Inlet air = Outlet air=Exhaust=G1/8 | ||||||
| The Position Counting | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||
| Effective Sectional Area | 14mm²(Cv=0.78) | 12mm²(Cv=0.69) | 25mm²(Cv=1.39) | 18mm²(Cv=1.00) | 12mm²(Cv=0.67) | 9mm²(Cv=0.50) | |||
| Operating Temperature | 5~50℃(41~122°F) | ||||||||
| Working-Pressure | 0.15~0.8MPa | ||||||||
| Max.Pressure Resistance | 1.2MPa | ||||||||
| Power Consumption | AC:4.5VA DC:3W | ||||||||
| Protection Class | IP65(DIN40050) | ||||||||
| Insulation | Grade F | ||||||||
| Wiring Form | Lead Wire Type or Connector Type | ||||||||
| Voltage Range | ±10% | ||||||||
| HighestAction Frepuency | 5 Cycle/Sec | ||||||||
| Shortest Excitation Time | 0.05 Second | ||||||||

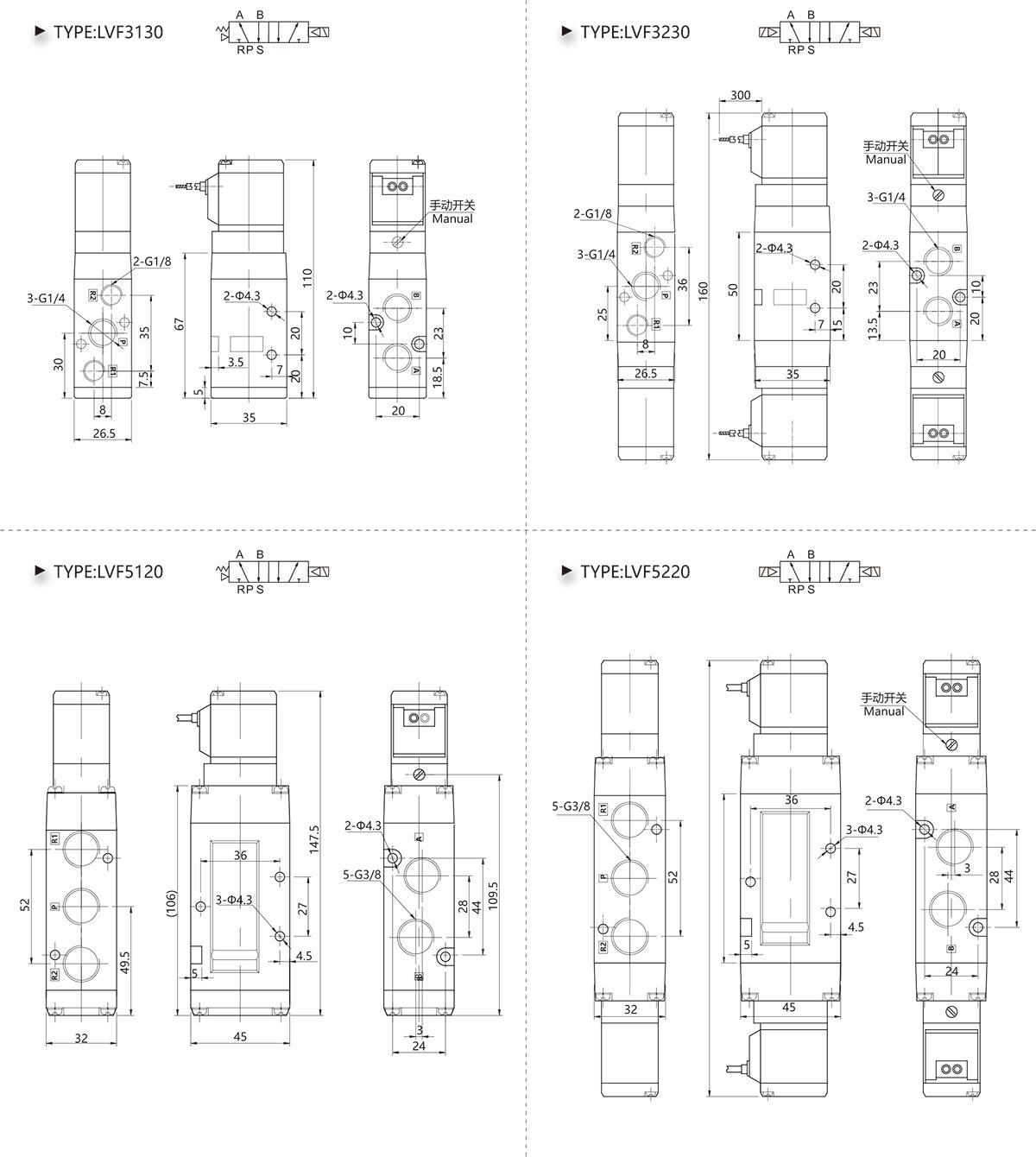

Overall Dimension
