LQ SERIES SOLENOID VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

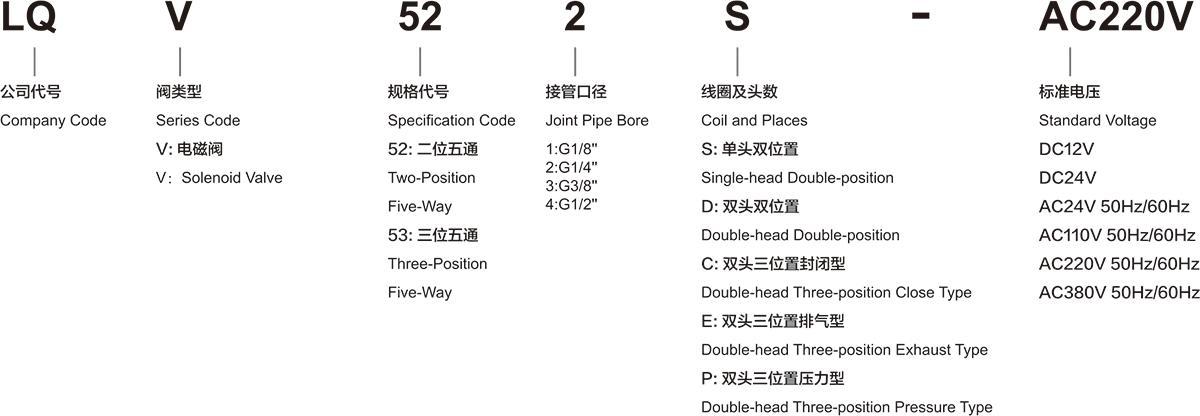

Ordering Code
Specification
| Model | LQV522S LQA522S | LQV522D LQA522D | LQV532C(E/P) | LQV523S | LQV523D | LQV533C(E/P) | LQV524S | LQV524D | LQV534C(E/P) |
| LQA532C(E/P) | LQA523S | LQA523D | LQV533C(E/P) | LQA524S | LQA524D | LQA534C(E/P) | |||
| Working Medium | 40 Micron Filtered Air | ||||||||
| Motion Pattern | inner Guide Type | ||||||||
| Joint Pipe Bore | Inlet = Outlet=G1/4 Exhaust=G1/8 | Inlet = Outlet=G3/8 Exhaust=G1/4 | Inlet = Outlet=Exhaust=G1/2 | ||||||
| The Position Counting | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-w | Two-position Five-way | Three-position Five-way | |||
| Effective SectionalArea | 14mm²(Cv=0.78) | 12mm²(Cv=0.69) | 25mm²(Cv=1.39) | 18mm²(Cv=1.00) | 50mm²(Cv=2.79) | 30mm²(Cv=1.67) | |||
| Operating Temperature | 5~50℃(41~122°F) | ||||||||
| Working-Pressure | 0.15~0.8MPa | ||||||||
| Max.Pressure Resistance | 1.2MPa | ||||||||
| Power Consumption | AC:4.5VA DC:3W | ||||||||
| 保护等级/Protection Class | IP65(DIN40050) | ||||||||
| Insulation | F级 | ||||||||
| Wiring Form | Lead Wire Type or Connector Type | ||||||||
| Noltage Range | ±10% | ||||||||
| Highest Action Frepuency | 5 Cycle/Sec | ||||||||
| Shortest Excitation Time | 0.05 Second | ||||||||

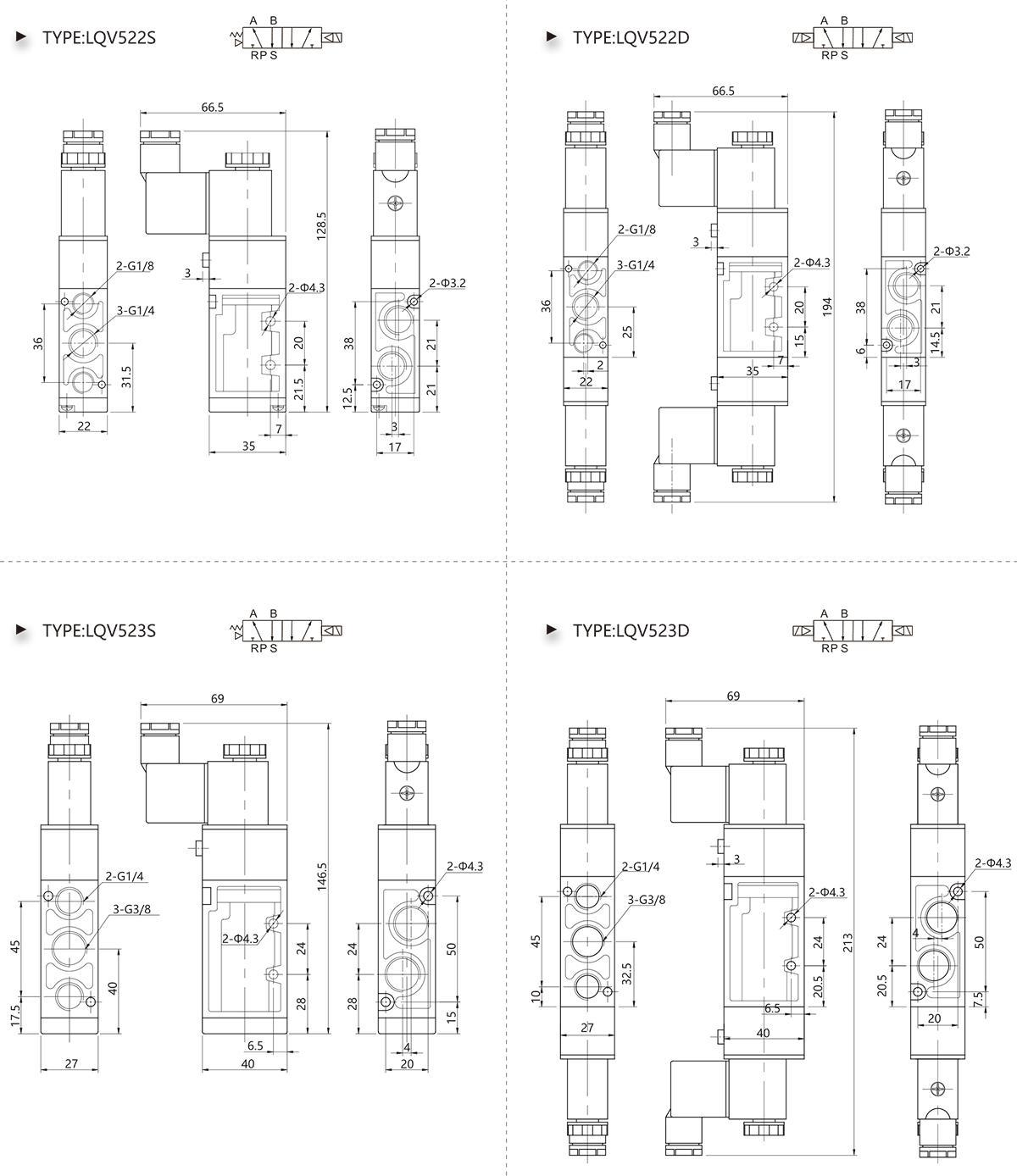

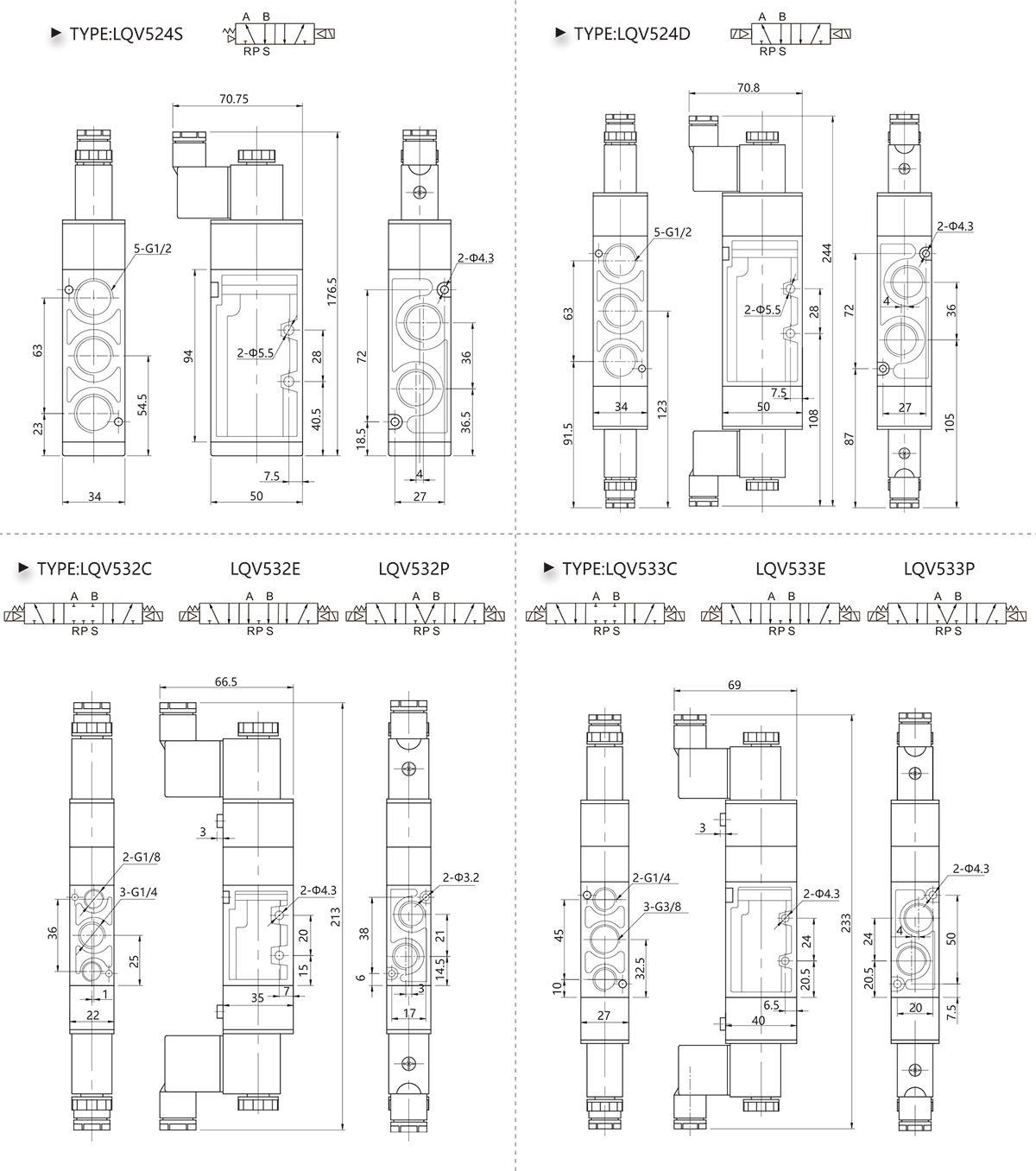

Overall Dimension
