LD22 SERIES SOLENOID VALVE
+
  • LD22 SERIES SOLENOID VALVE

Category:

Control components

LD22 SERIES SOLENOID VALVE

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

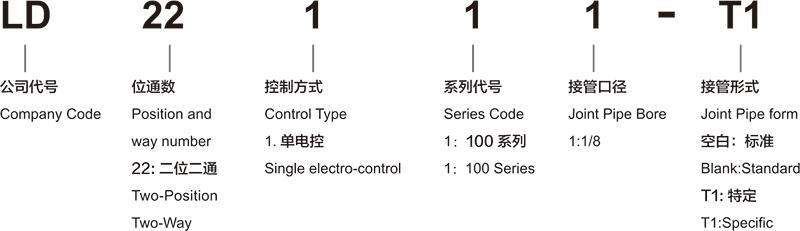

Ordering Code




Specification



Model LD22111 LD22111-T1
Working Medium 40 Micron Filtered Air
Motion Pattern Inner Guide Type
Joint Pipe Bore Air Inlet=Air Outlet=G1/8 Plate Installation
The Position Counting Two-position Two-way
Operating Temperature 5~50℃(41~122°F)
Effective SectionalArea 12mm²(Cv=0.67)
Working-Pressure 0.15~0.7MPa
Max.Pressure Resistance 1.2MPa
Power Consumption 1W
Protection Class IP65(DIN40050)
Insulation Grade F
Wiring Form Connector Type
NVoltage Range ±10%
Highest Action Frepuency 5 Cycle/Sec
Shortest Excitation Time 0.05 Second

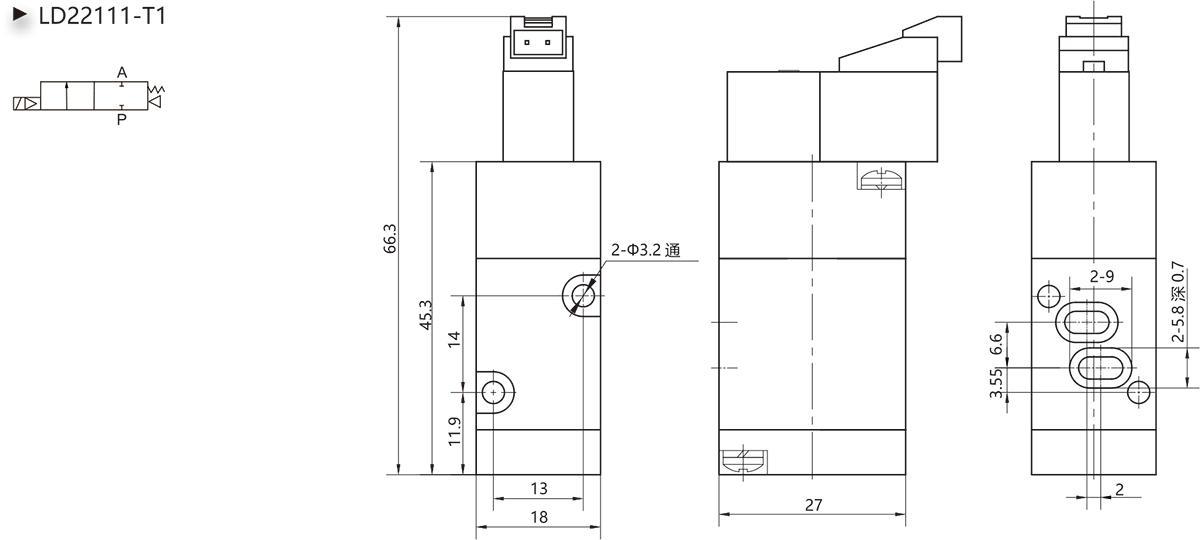

Overall Dimension
