3VM SERIES CONFLUENCE PLATE

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

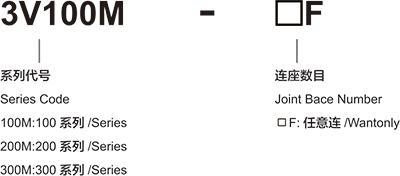

Ordering Code

【Note】
1. Single busbar base model, e.g.: 3V200M-4F
2. Replace with specific valve model for valve configuration, e.g.: 3V210-4F

Specification

Model/Symbol	A	KA	B	BA	BC	K	D	E	F	G	H	J	P
3V100M-□F	19N+19	19N+9	68	56.5	22.5	4.5	31	88	131	7.7	18.6	27	G1/8
3V200M-□F	23N+23	23N+11	83	69	24.5	4.5	45	112	166	9.5	23.5	35	G1/4
3V300M-□F	28N+26	28N+14	98	81.5	32	4.5	50	123.5	182	12	28	40	G3/8

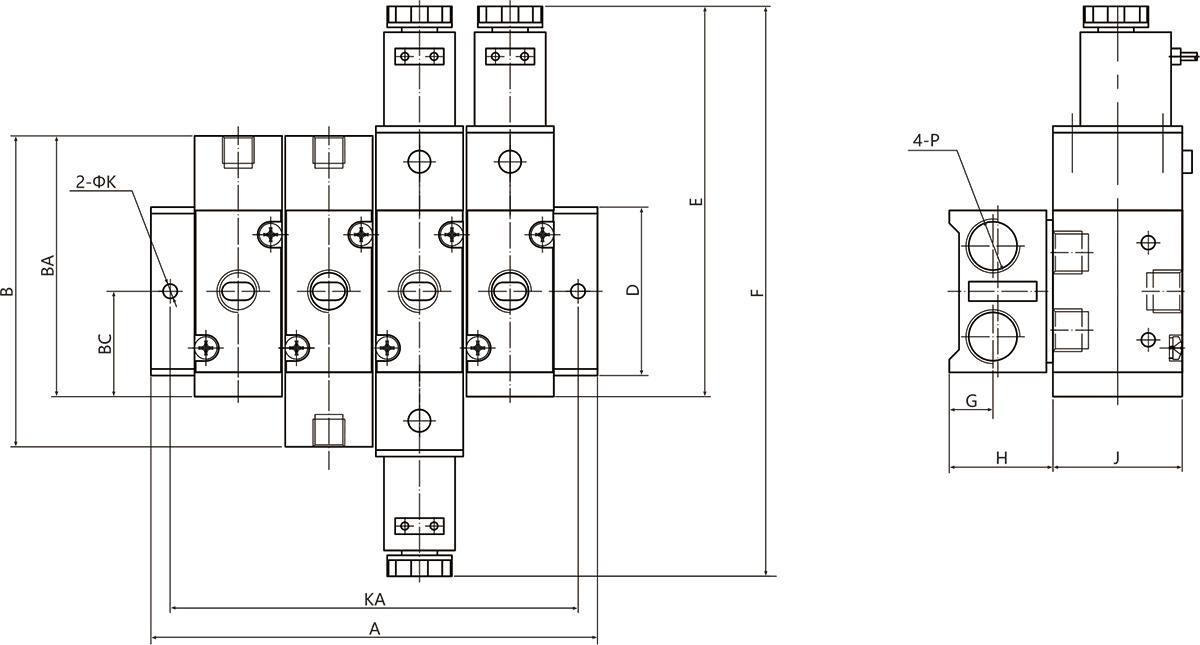

Overall Dimension
