3V/4V 400 SERIES SOLENOID VALVE,PNEUMATIC CONTROL VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

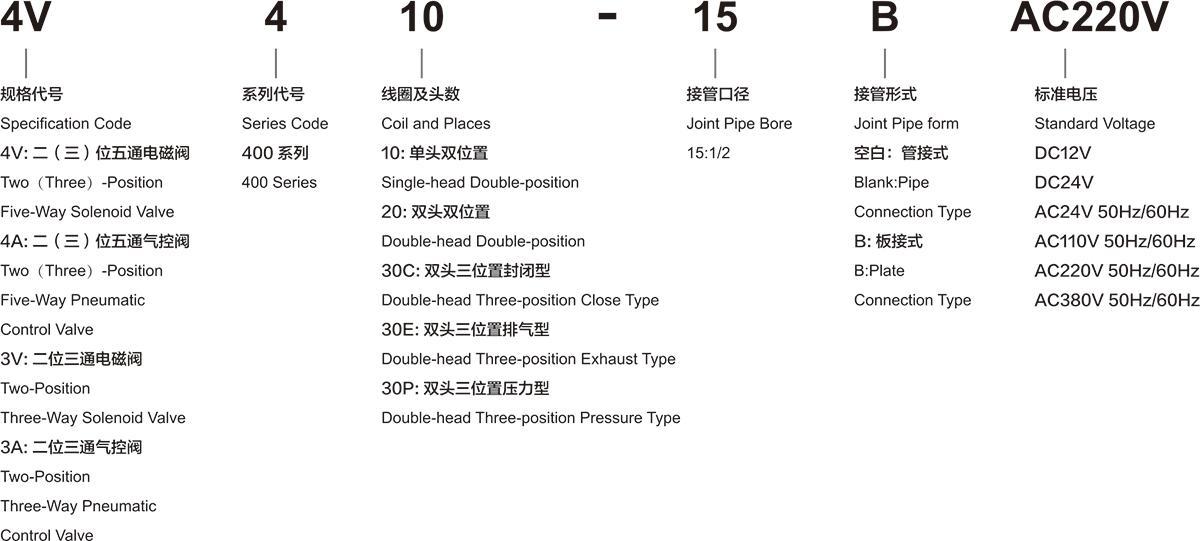

Ordering Code
Specification
| Model | 3V410-15 | 3V420-15 | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 |
| 3A410-15 | 3A420-15 | 4A410-15 | 4A420-15 | 4A430C-15 | 4A430E-15 | 4A430P-15 | |
| Working Medium | 40 Micron Filtered Air | ||||||
| Motion Pattern | Inner Guide Type | ||||||
| Joint Pipe Bore | Inlet Air = Outlet Air=Exhaust=G1/2 | ||||||
| The Position Counting | Two-position Three-way | Two-position Five-way | Three-position Five-way | ||||
| Operating Temperature | 5~50℃(41~122°F) | ||||||
| Effective Sectional Area | 50mm²(Cv=2.79) | 50mm²(Cv=2.79) | 30mm²(Cv=1.67) | ||||
| Working-Pressure | 0.15~0.8MPa | ||||||
| Max.Pressure Resistance | 1.2MPa | ||||||
| Power Consumption | AC:5.5VA DC:4.8W | ||||||
| Protection Class | IP65(DIN40050) | ||||||
| Insulation | Grade F | ||||||
| Wiring Form | Lead Wire or Connector Type | ||||||
| NVoltage Range | ±10% | ||||||
| HighestAcion Frepuency | 5 Cycle/Sec | 5 Cycle/Sec | 3 Cycle/Sec | ||||
| Shortest Excitation Time | 0.05 Second | ||||||

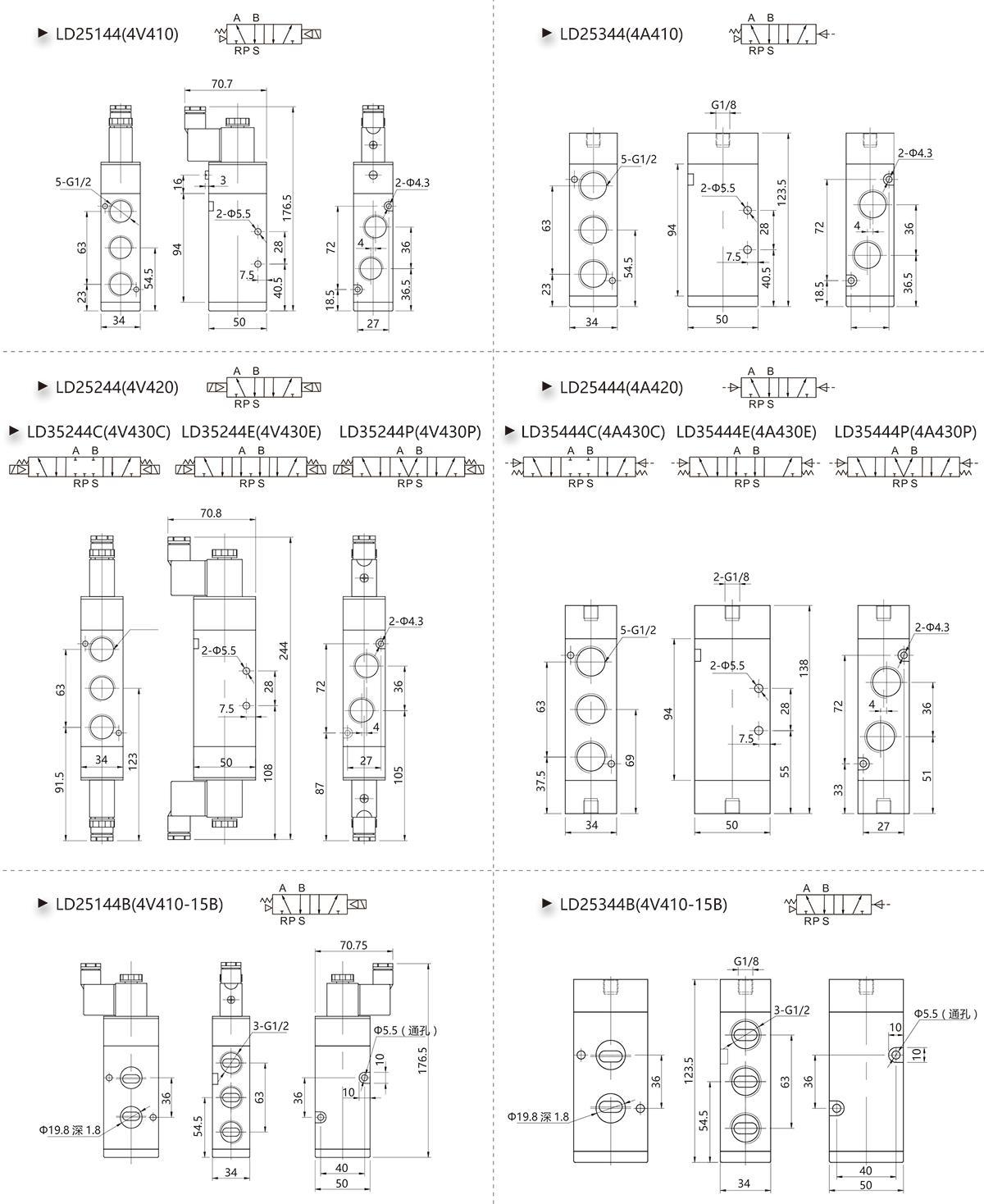

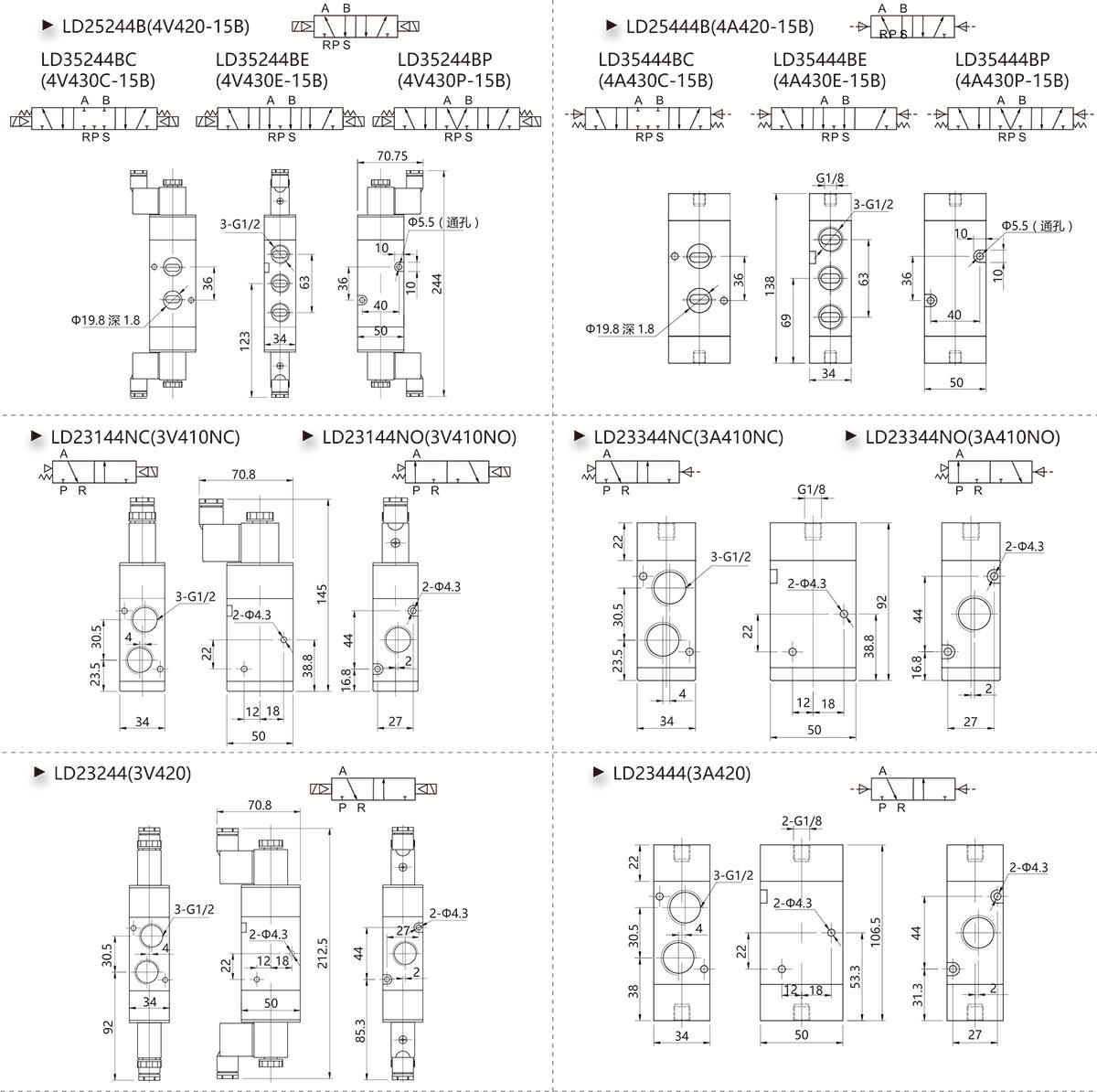

Overall Dimension

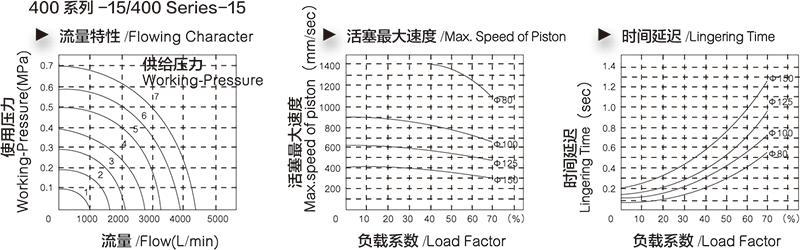

Flowing Character

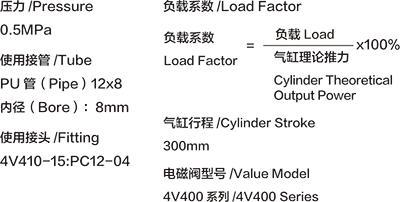

Test Condition
