3V/4V 300 SERIES SOLENOID VALVE,PNEUMATIC CONTROL VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

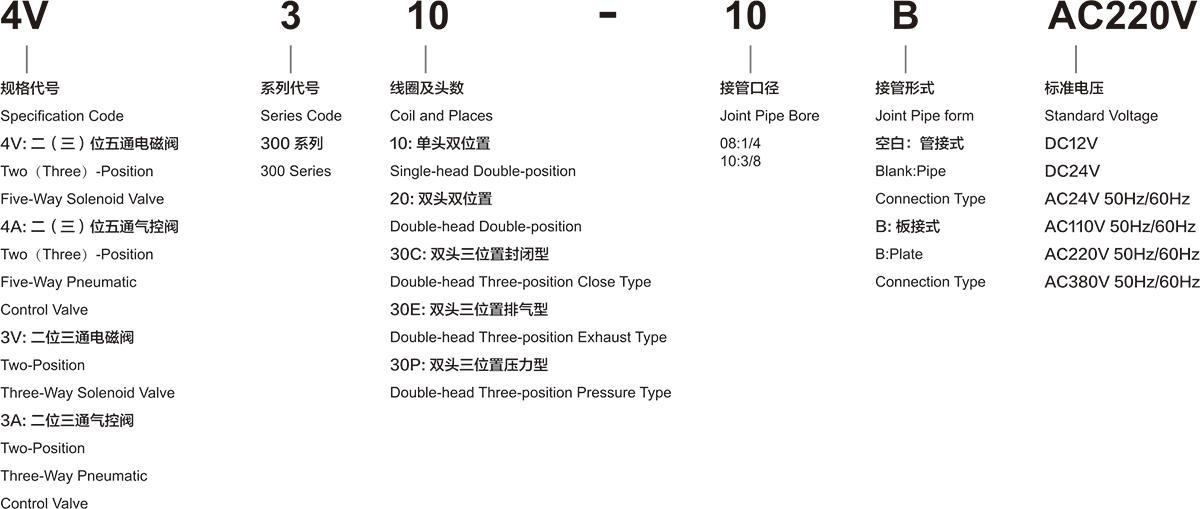

Ordering Code
| Model | 3V310-08 | 3V320-08 | 3V310-10 | 3V320-10 | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 |
| 3A310-08 | 3A320-08 | 3A310-10 | 3A320-10 | 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 | |
| Working Medium | 40 Micron Filtered Air | |||||||||||||
| Motion Pattern | Inner Guide Type | |||||||||||||
| Joint Pipe Bore | Inlet = Outlet=G1/4 | Inlet = Outlet=G3/8 | Inlet = Outlet=Exhaust=G1/4 | Inlet = Outlet=Exhaust=G3/8 Exhaust=G1/4 | ||||||||||
| The Position Counting | Two-position Three-way | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
| Operating Temperature | 5~50℃(41~122°F) | |||||||||||||
| Effective Sectional Area | 25mm²(Cv=1.39) | 30mm²(Cv=1.67) | 25mm²(Cv=1.39) | 18mm²(Cv=1.00) | 30mm²(Cv=1.67) | 18mm²(Cv=1.00) | ||||||||
| Working-Pressure | 0.15~0.8MPa | |||||||||||||
| Max.Pressure Resistance | 1.2MPa | |||||||||||||
| Power Consumption | AC:5.5 VA DC:4.8W | |||||||||||||
| Protection Class | IP65(DIN40050) | |||||||||||||
| Insulation | Grade F | |||||||||||||
| Wiring Form | Lead Wire or Connector Type | |||||||||||||
| NVoltage Range | ±10% | |||||||||||||
| Highest Action Frepuency | 5 Cycle/Sec | 3 Cycle/Sec | 5Cycle/Sec | 3 Cycle/Sec | ||||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||||||

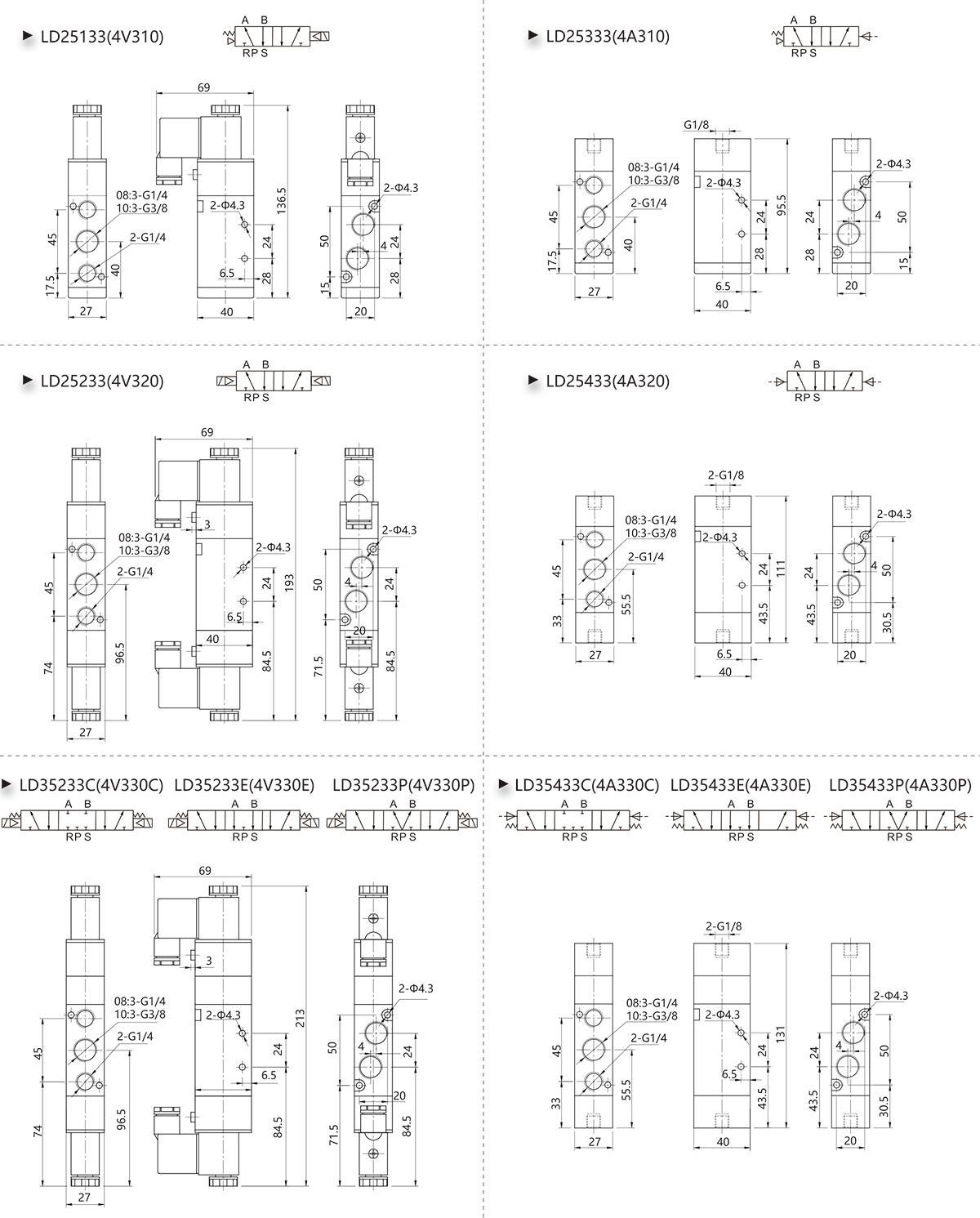

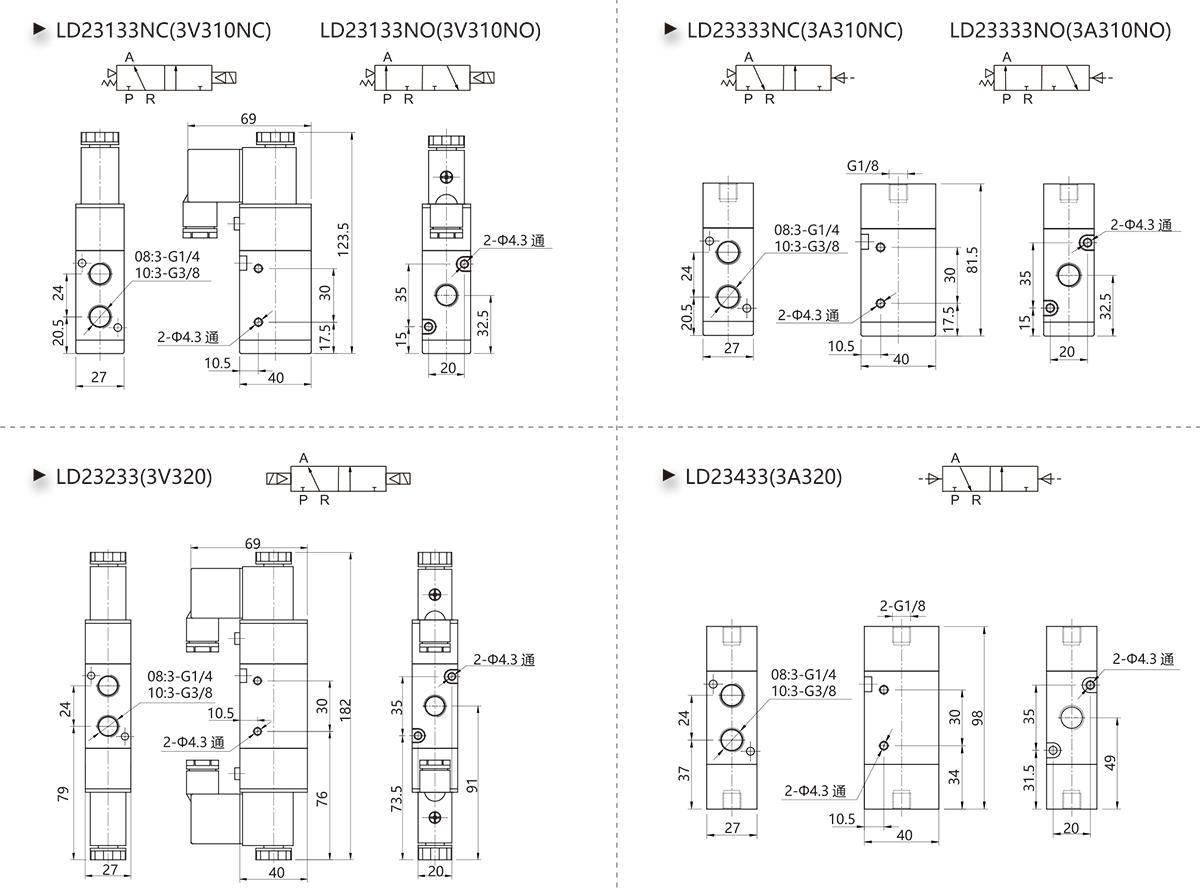

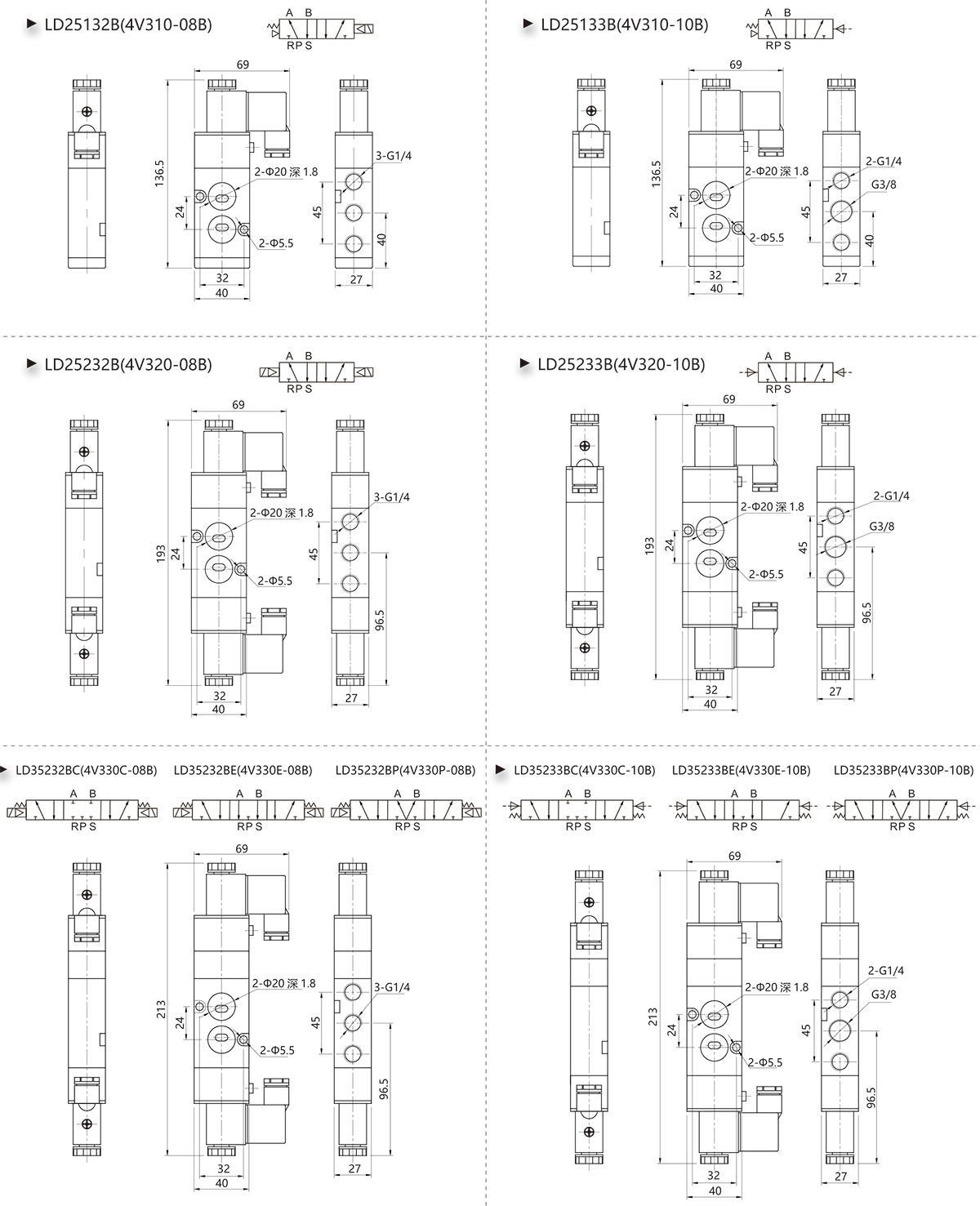

Overall Dimension

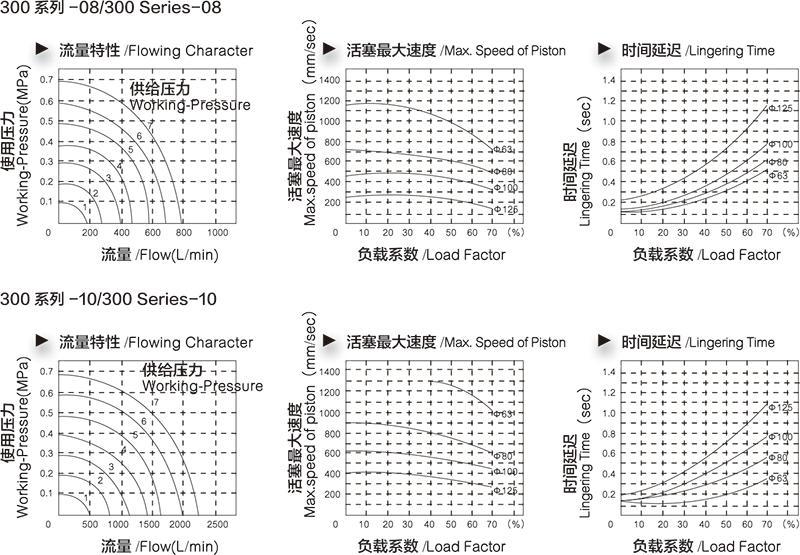

Flowing Character

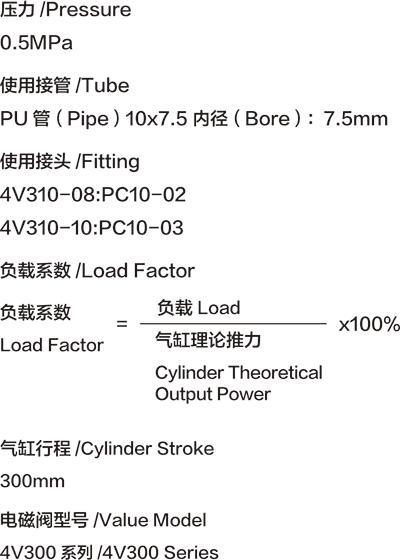

Test Condition
