LD3 SERIES SOLENOID VALVE,PNEUMATIC CONTROL VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

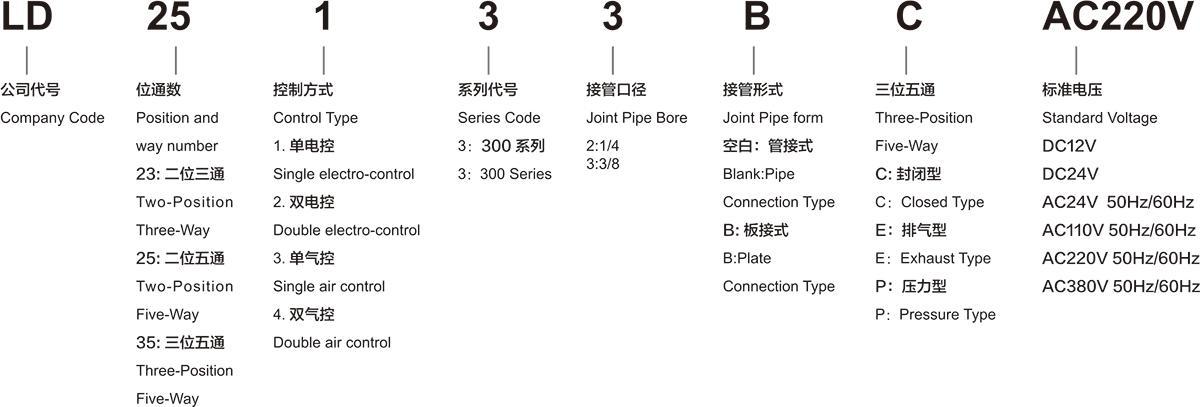

Ordering Code
Specification
| Model | LD23132 LD23332 |
LD23232 | LD23133 | LD23233 | LD25132 | LD25232 | LD35232C | LD35232E | LD35232P | LD25133 | LD25233 | LD35233C | LD35233E | LD35233P |
| LD23432 | LD23333 | LD23433 | LD25332 | LD25432 | LD35432C | LD35432E | LD35432P | LD25333 | LD25433 | LD35433C | LD35433E | LD35433P | ||
| Working Medium | 40 Micron Filtered Air | |||||||||||||
| Motion Pattern | Inner Guide Type | |||||||||||||
| Joint Pipe Bore | Inlet = Outlet =G1/4 | Inlet = Outlet =G3/8 | Inlet = Outlet =Exhaust=G1/4 | Inlet = Outlet =Exhaust=G3/8 Exhaust=G1/4 | ||||||||||
| The Position Counting | Two-position Three-way | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
| Operating Temperature | 5~50℃(41~122°F) | |||||||||||||
| Effective Sectional Area | 25mm²(Cv=1.39) | 30mm²(Cv=1.67) | 25mm²(Cv=1.39) | 18mm²(Cv=1.00) | 30mm²(Cv=1.67) | 18mm²(Cv=1.00) | ||||||||
| Working-Pressure | 0.15~0.8MPa | |||||||||||||
| Max.Pressure Resistance | 1.2MPa | |||||||||||||
| Power Consumption | AC:3.2 VA DC:3.7W | |||||||||||||
| Protection Class | IP65(DIN40050) | |||||||||||||
| Insulation | Grade F | |||||||||||||
| Wiring Form | Lead Wire or Connector Type | |||||||||||||
| Noltage Range | ±10% | |||||||||||||
| Highest Action Frepuency | 5 Cycle/Sec | 3 Cycle/Sec | 5Cycle/Sec | 3 Cycle/Sec | ||||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||||||

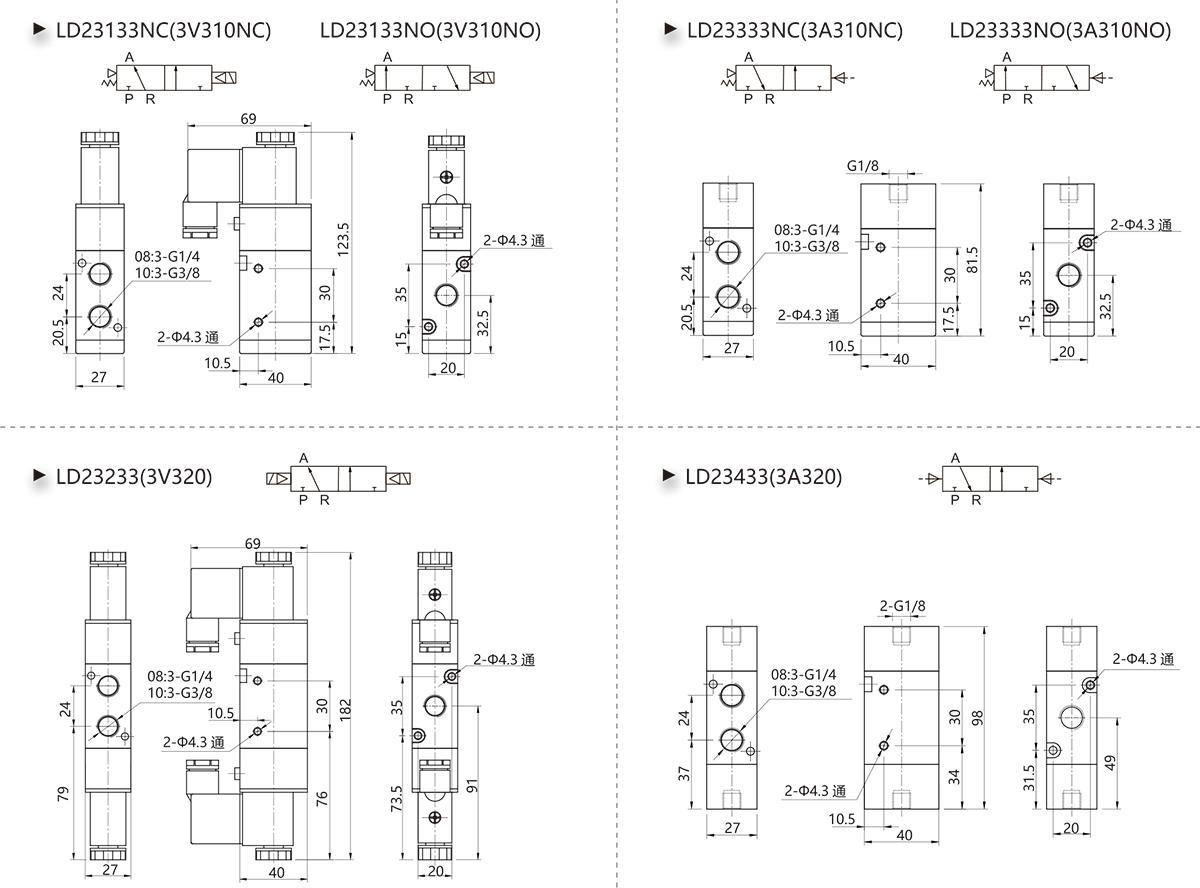

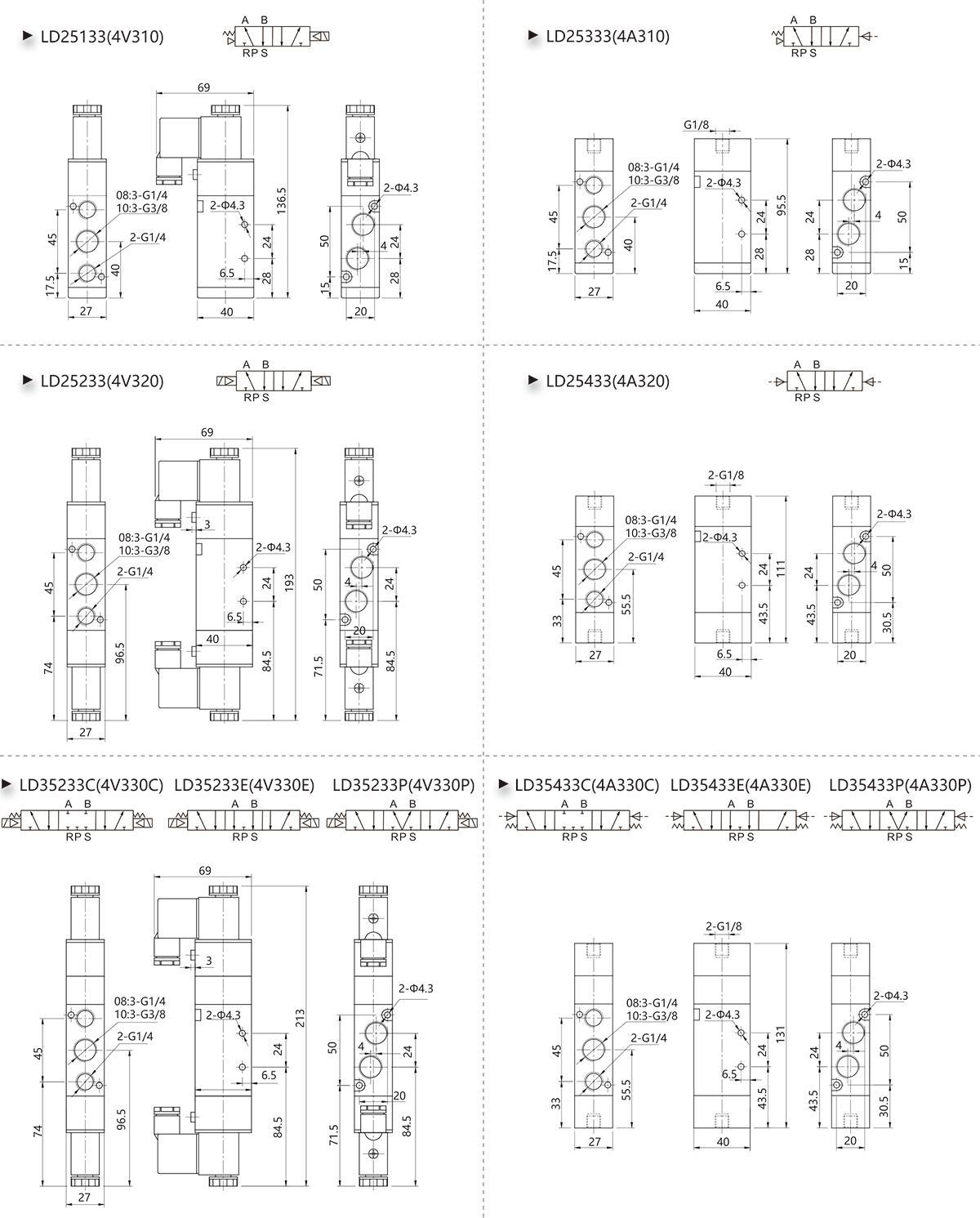

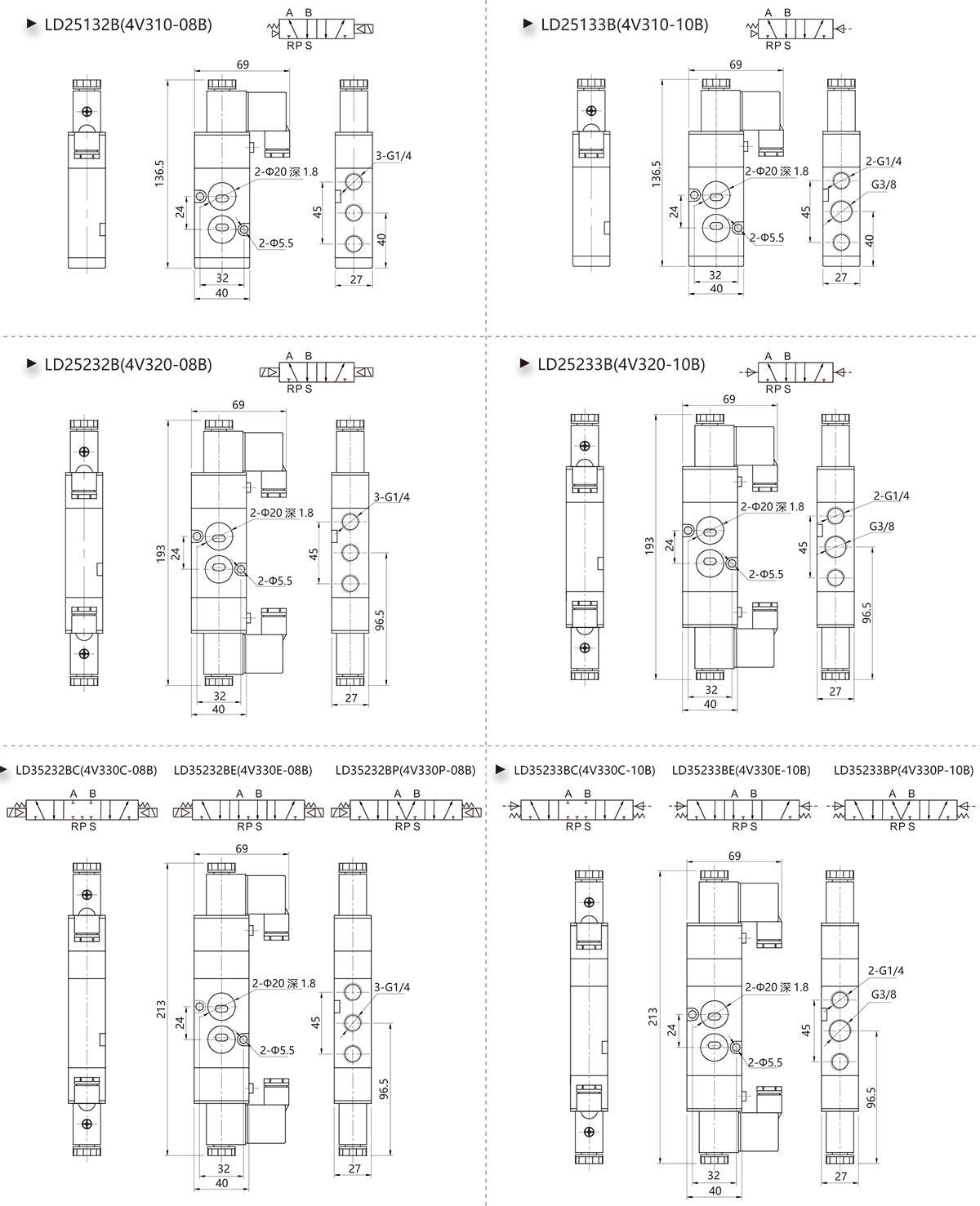

Overal Dimension

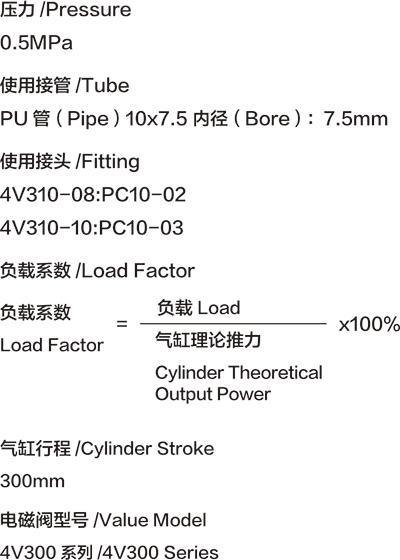

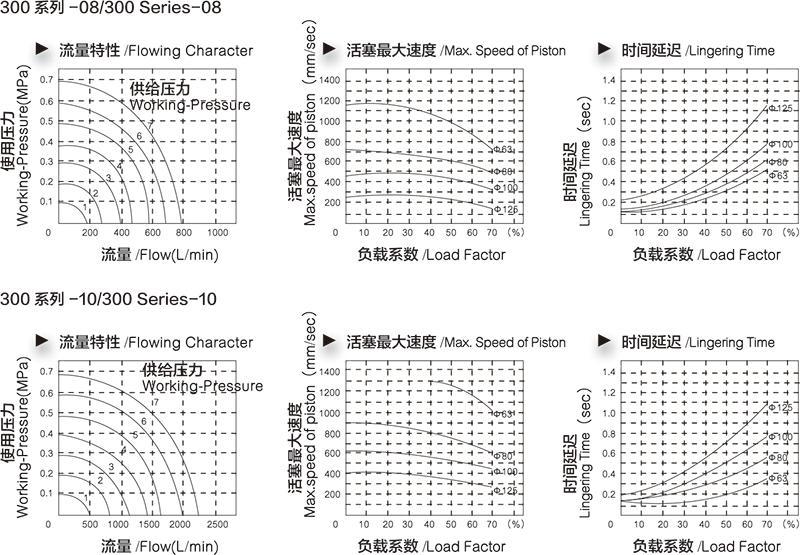

Test Condition
Test Condition
