3V/4V 200 SERIES SOLENOID VALYE,PNEUMATIC CONTROL VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

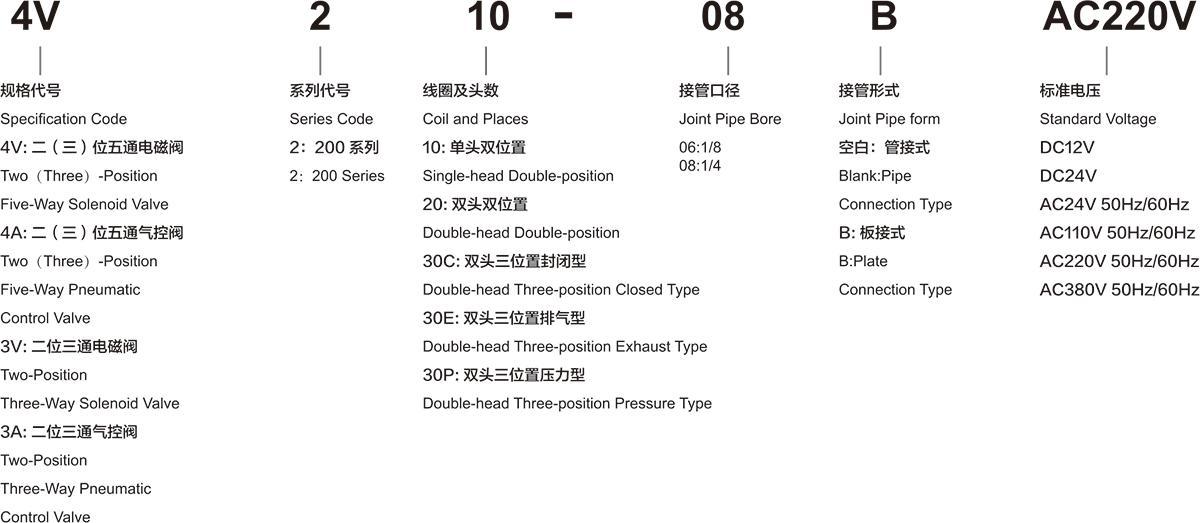

Ordeing Code
Specification
| Model | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 | 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Working Medium | 40 Micron Filtered Air | |||||||||||||
| Motion Pattern | inner Guide Type | |||||||||||||
| Joint Pipe Bore | Intake = Exhaust =G1/8 | Intake = Exhaust =G1/4 | Intake = Exhaust =Exhausting air=G1/8 | Intake = Exhaust =Exhausting air=G1/4 Exhausting air=G1/8 | ||||||||||
| The Position Counting | Two-position Three-way | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
| Operating Temperature | 5~50℃(41~122°F) | |||||||||||||
| Efective Sectional Area | 14mm²(Cv=0.78) | 16mm²(Cv=0.89) | 5.5mm²(CV=0.31) | 5mm²(Cv=0.28) | 12mm²(C=0.67) | 9mm²(Cv=0.5) | ||||||||
| Working-Pressure | 0.15~0.8MPa | |||||||||||||
| Max.Pressure Resistance | 1.2MPa | |||||||||||||
| Power Consumption | AC:5.5 VA DC:4.8W | |||||||||||||
| Protection Class | IP65(DIN40050) | |||||||||||||
| Insulation | Grade F | |||||||||||||
| Wiring Form | Lead Wire or Connector Type | |||||||||||||
| Noltage Range | ±10% | |||||||||||||
| Highest Action Frepuency | 5 Cycle/Sec | 3 Cycle/Sec | 5 Cycle/Sec | 3 Cycle/Sec | ||||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||||||

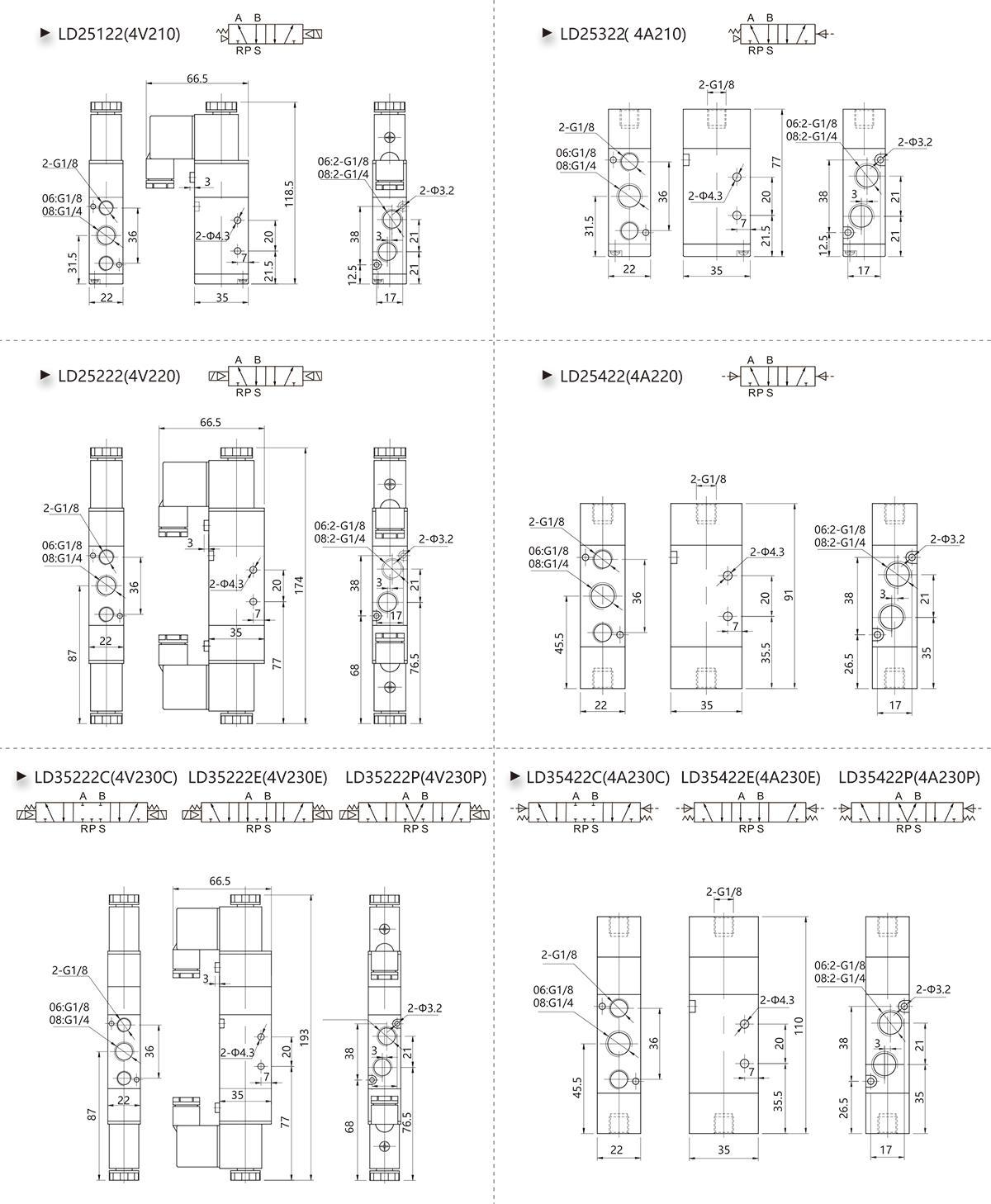

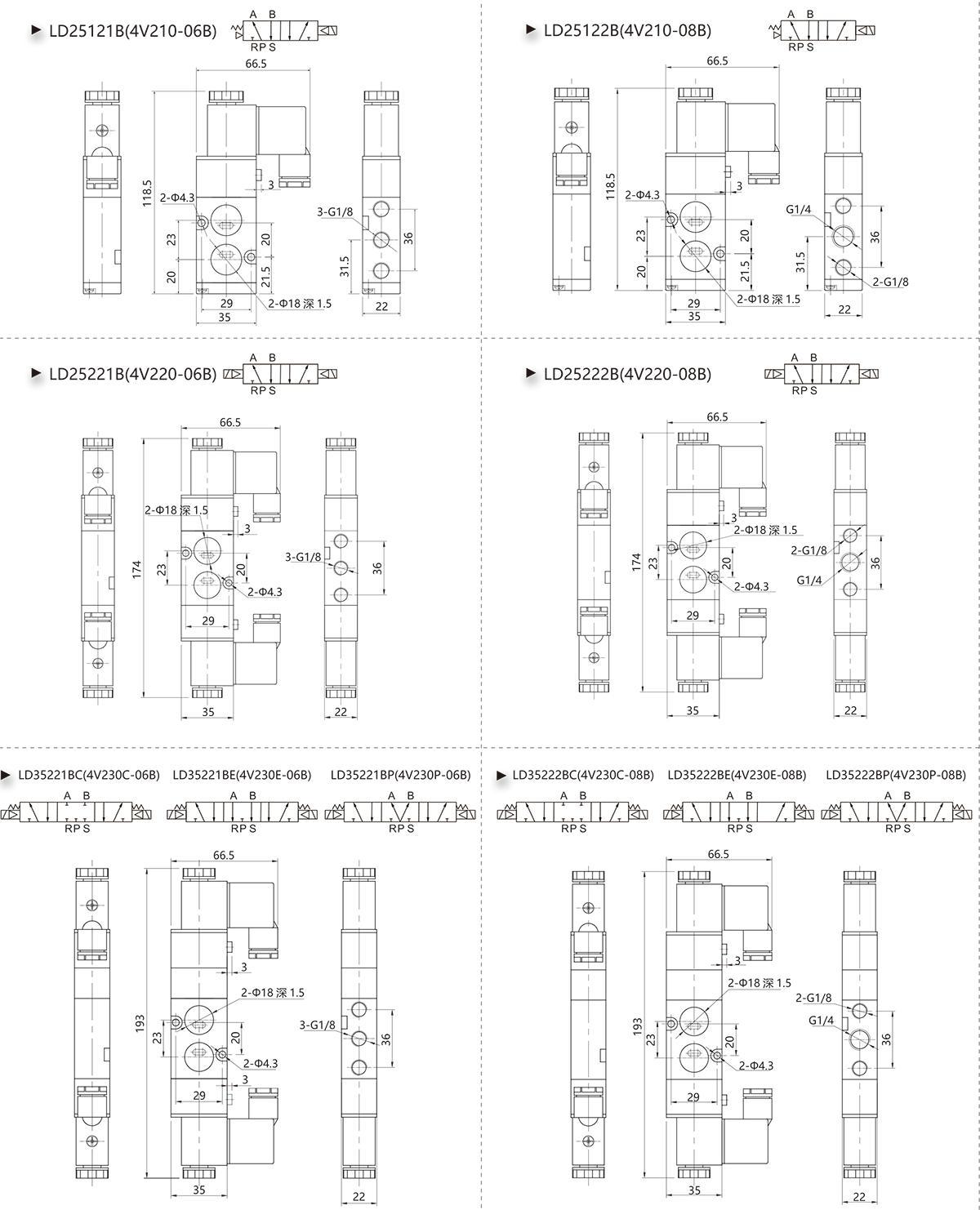

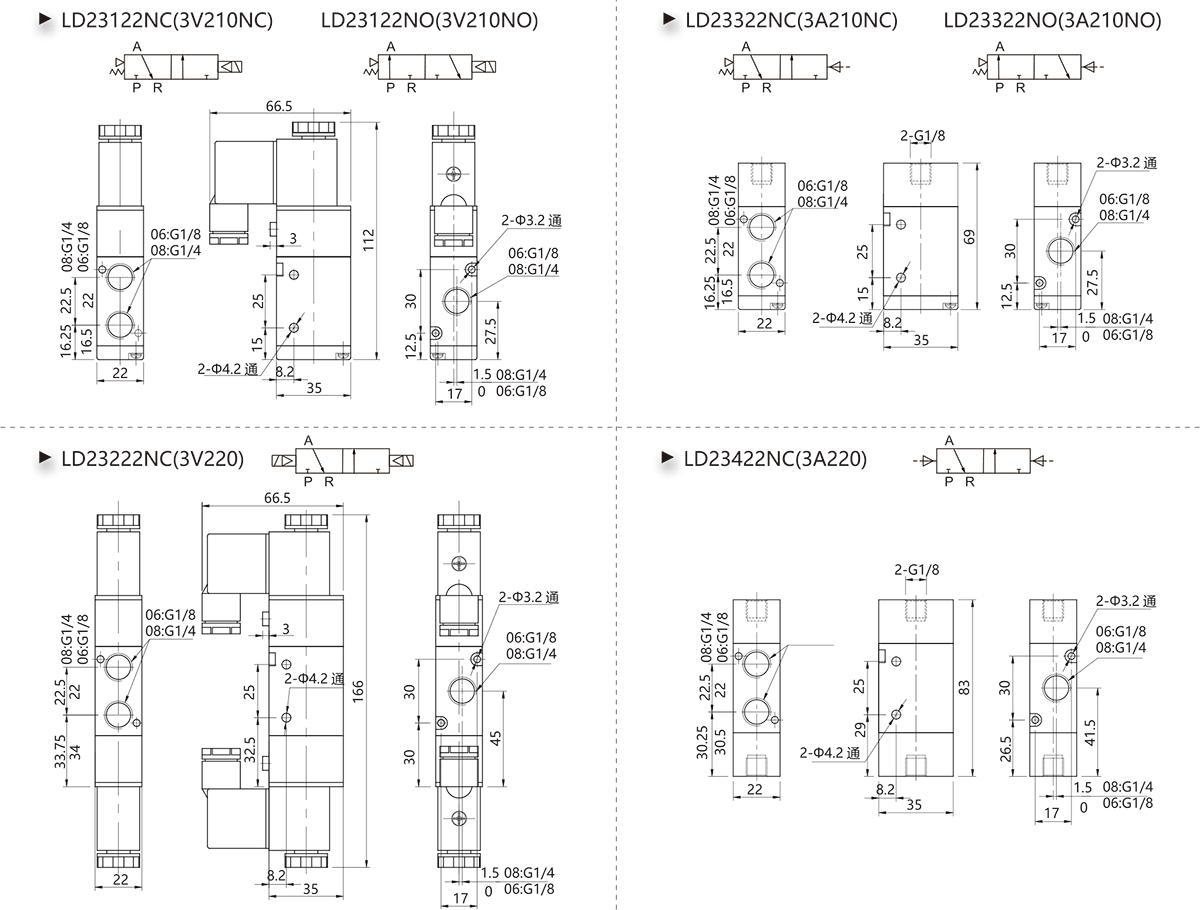

Overall Dimension

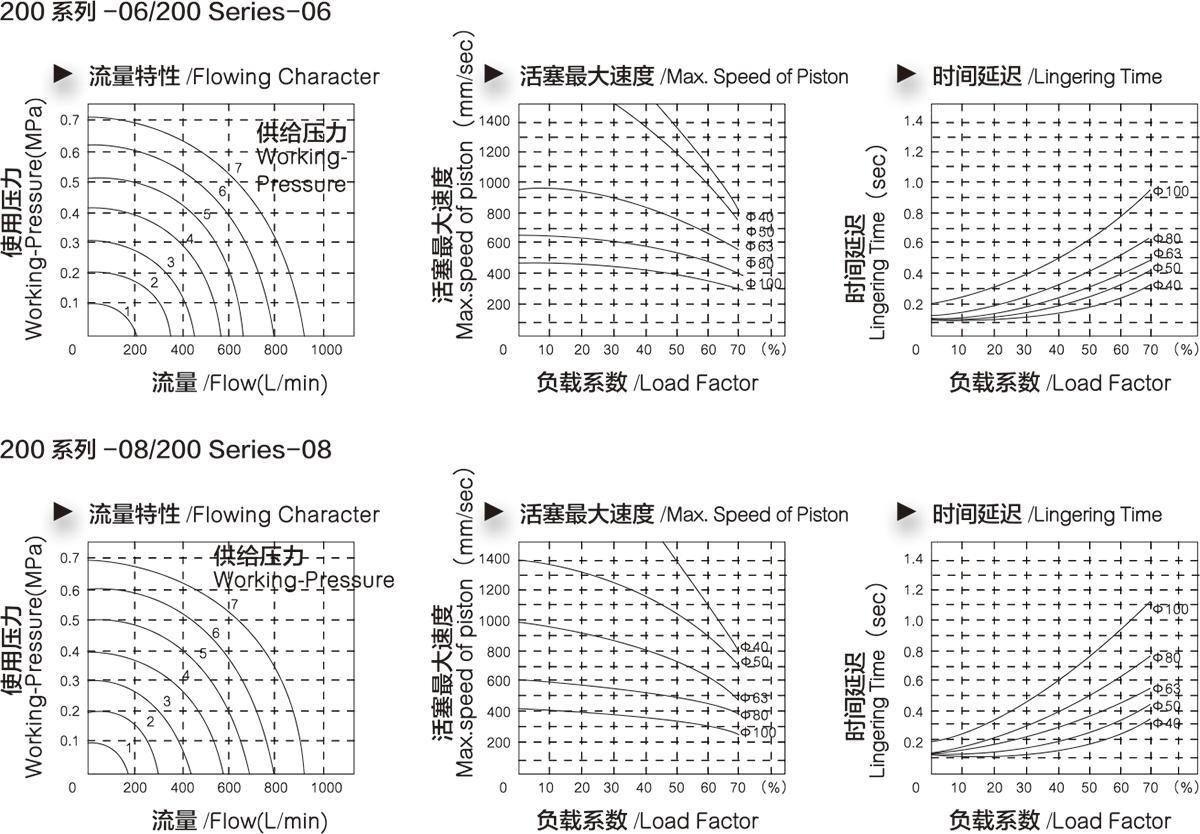

Flowing Character

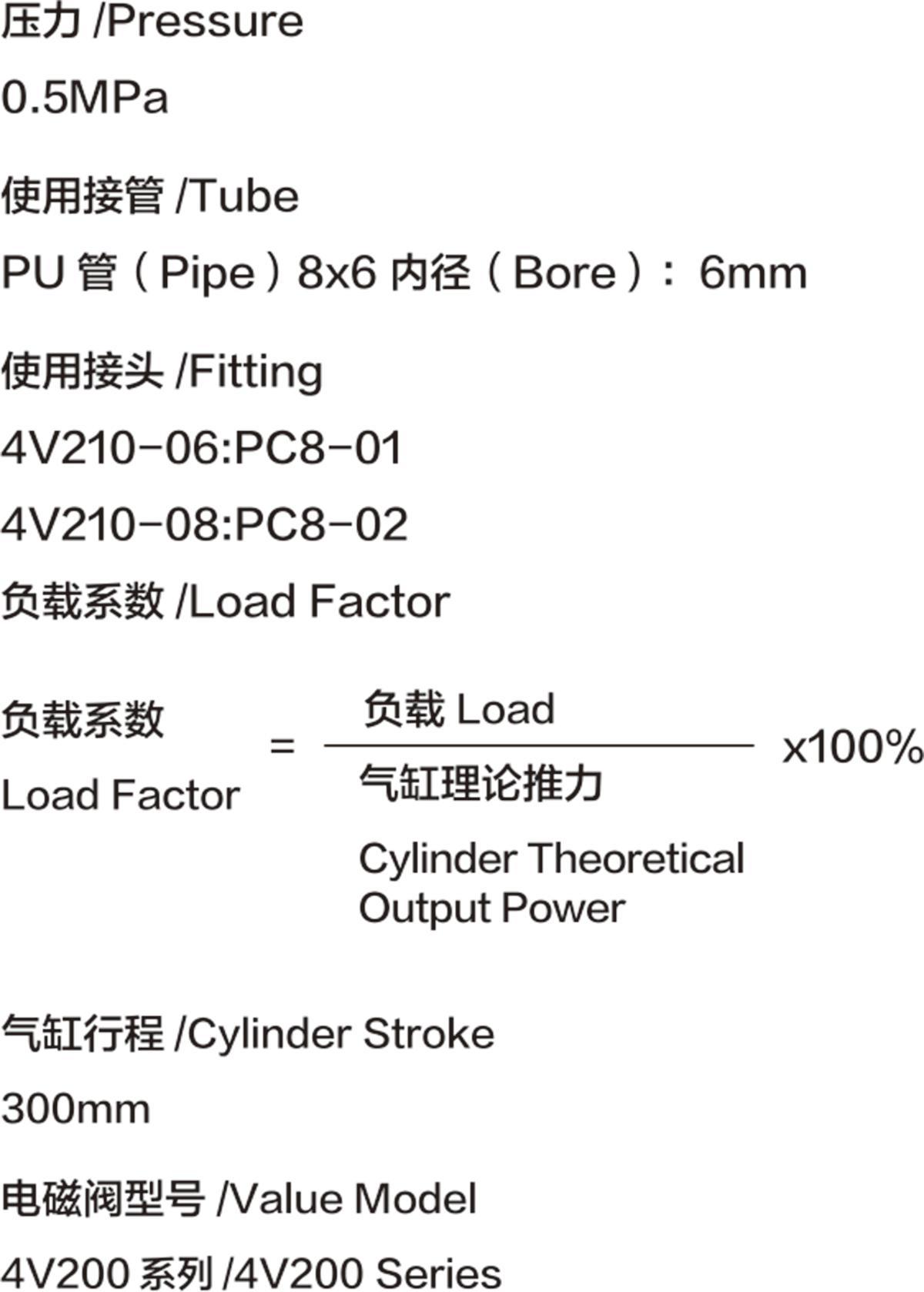

Test Condition
