LY SERIES SOLENOID VALVE

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

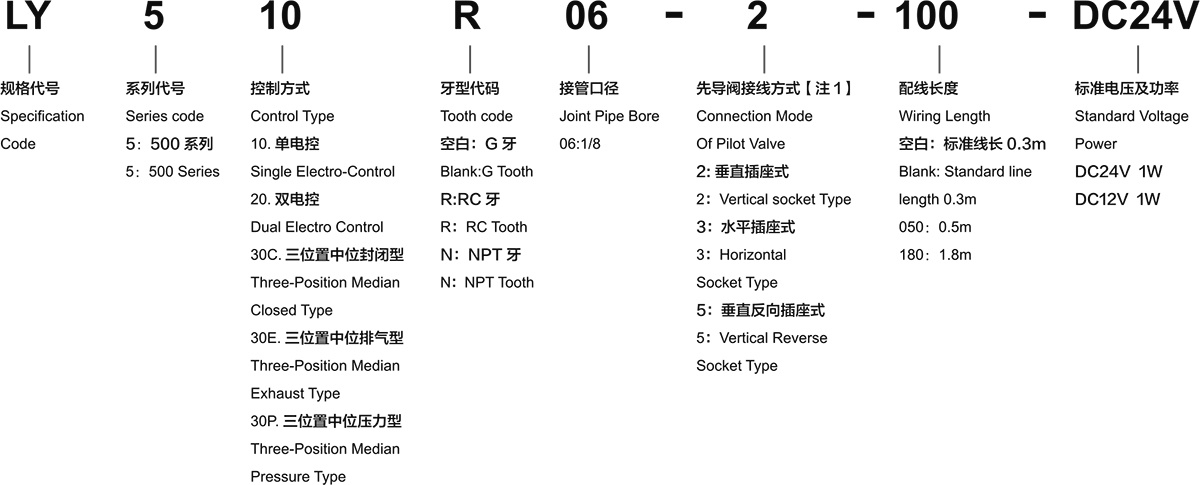

Ordering Code

Specification

Model	LY51006	LY52006	LY530C06	LY530E06	LY530P06
Working Medium	40 Micron Filtered Air
Motion Pattern	inner Guide Type
Joint Pipe Bore	Intake=vent=Exhaust=G1/8
Operating Temperature	-5~50℃
Effective Sectional Area	9.8mm²(Cv=0.57)		8.4mm²(Cv=0.5)
Working-Pressure	0.15~0.8MPa(Dual Position)		0.2~0.8MPa(Three Position)
Max.Pressure Resistance	1.2MPa
Wiring Form	Lead Wire or Connector Type
Exhaust mode	Main Valve And Pilot Valve Centralized Exhaust Type,Internal Exhaust Type
Highest Action Frepuency	5 Cycle/Sec 3 Cycle/Sec

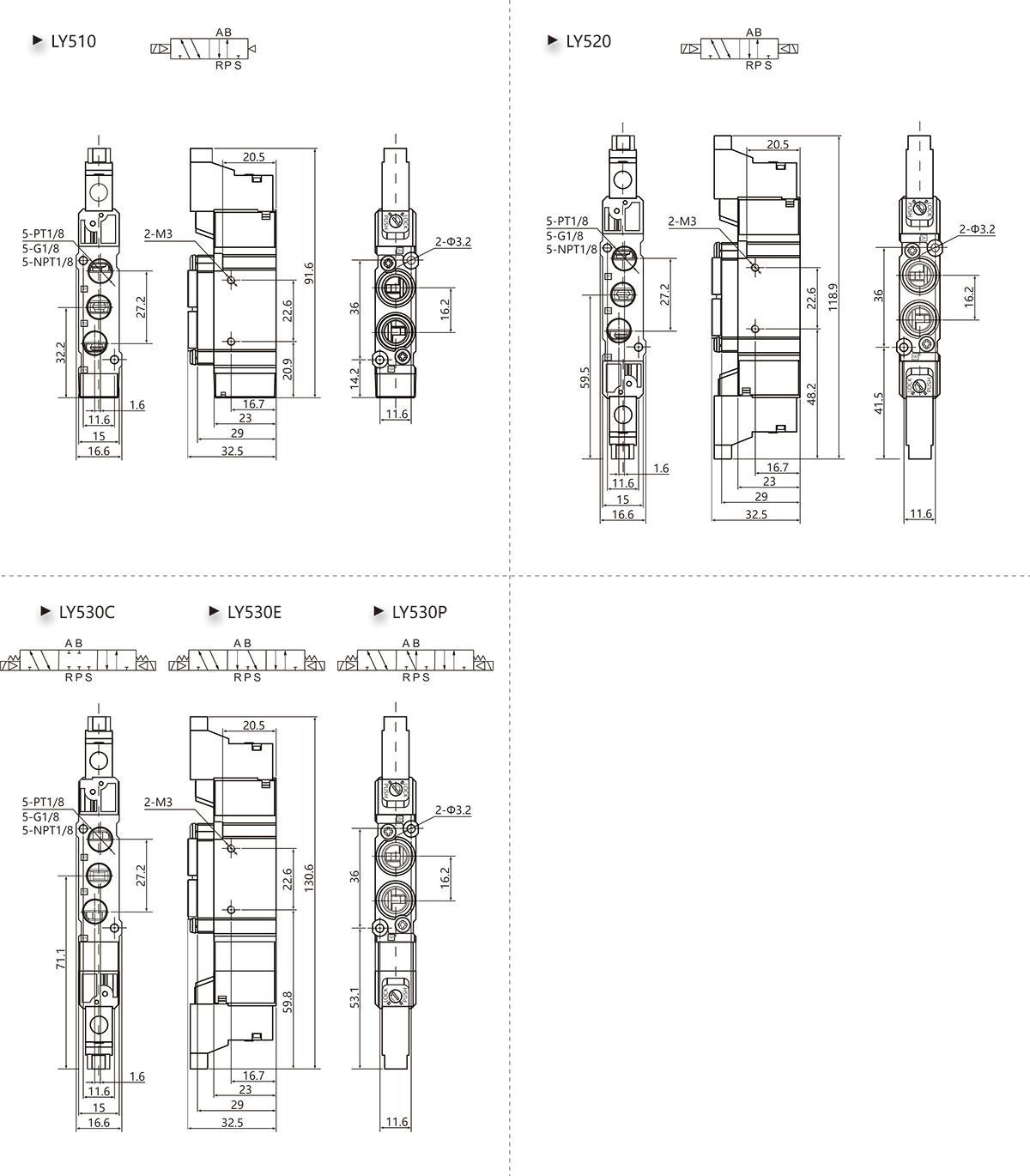

Overall Dimension

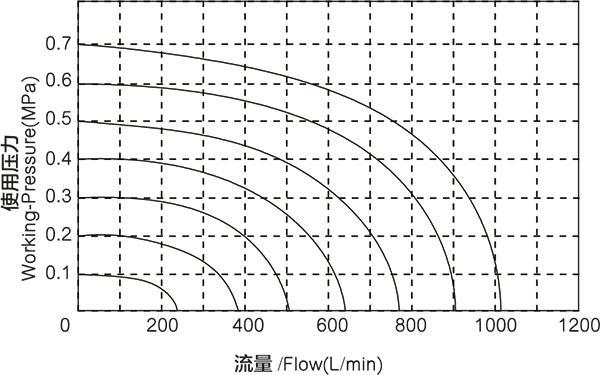

Flowing Character
