OF SERIES FILTER
+
  • OF SERIES FILTER

Category:

Air treatment

OF SERIES FILTER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

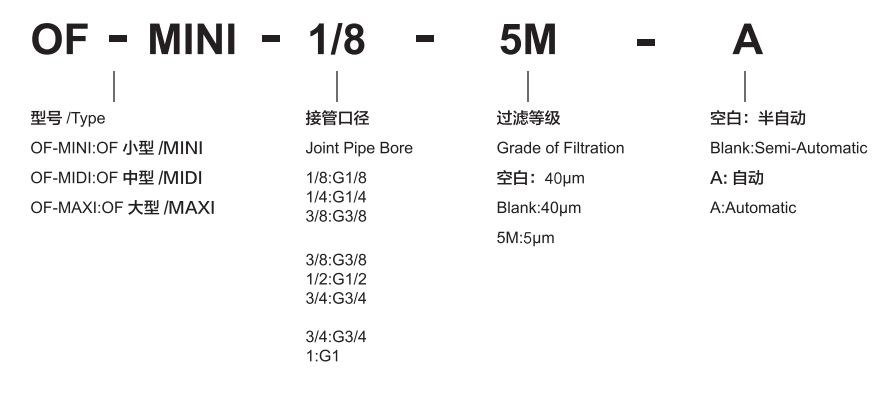

Ordering Code



GraPhic symbol





Synopsis



Filter and pressure regulator combine a single unit,and cleans the compressed air of fluid oil,condensation and dirt particles. For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.



Specification
Model OF-MINI OF-MIDI   OF-MAXI
Operating Fluid Air
Joint Pipe Bore G1/8 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
Standard Nominal Flow Rate OF-….-A) 750  1400  1600  3100  3400  3400  9700  10000
OF-…-5M-(-A) 900  1500  1700  3400  3900  4000  10000  11000
Grade Of Filtration 40μm/5μm
Primary Pressure Manual Condensate Drain Max:1.6MPa
Automatic Condensate Drain 0.15~1.2MPa
Operating Temperature Range 0~60℃
Material Housing Zinc Die-Casting
Filter Bowl PC
Adjusting Knob POM

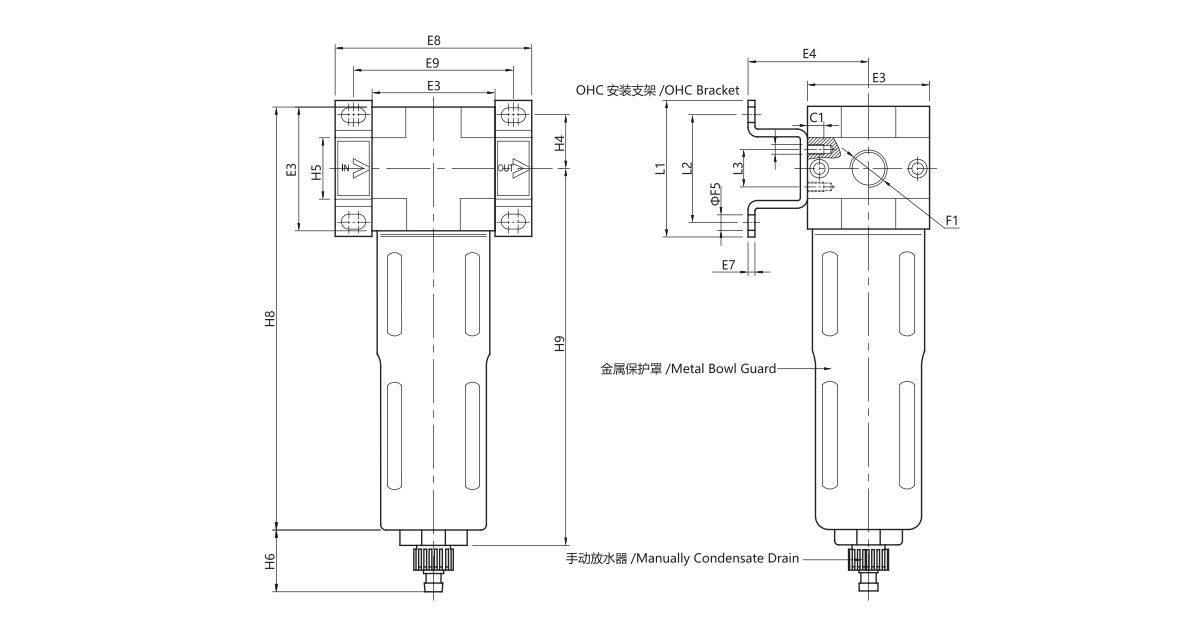

Overall Dimension

Model E3 E4 E7 E8 E9 F1 F4 F5 L1 L2 L3 H4 H5 H6 H8 H9
OF-MINl-... 40  39  2  64  52  G1/8 G1/4 G3/8 M4 4.5  44  35  11  17.5  20  15  144  129
OF-MIDl-... 55  47  3  85  70  G3/8 G1/2 G3/4 M5 5.5  71  60  22  24.5  32  15  179  156
OF-MAXI-… 66  53  3  96,116 8,091 G3/4 G1 M5 5.5  71  60  22  24.5  3,240 15  203  175

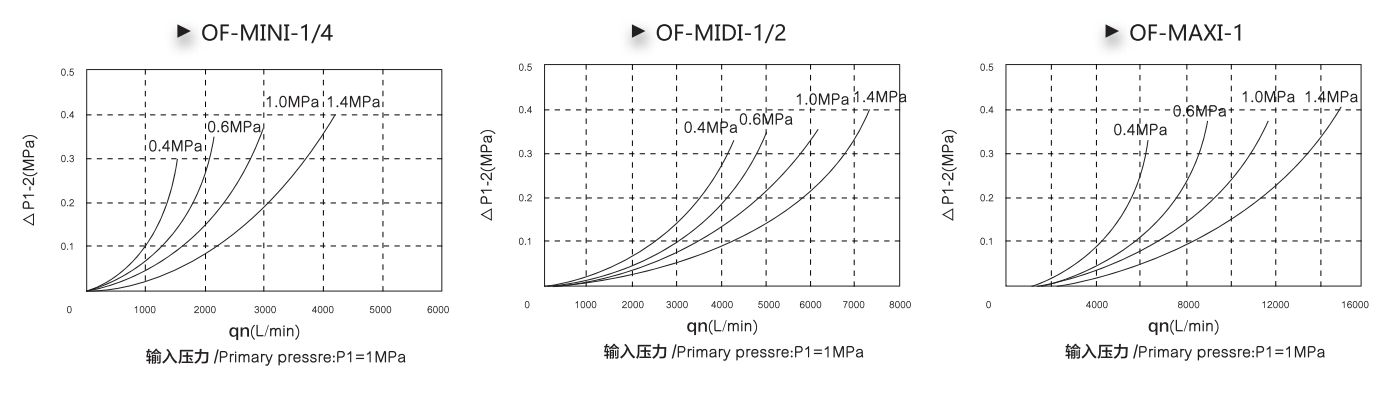

Flowing Character



Standard flow rate qn as a function of the output pressure p2
