OU SERIES FILTER&REGULATOR,LUBRICATOR

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

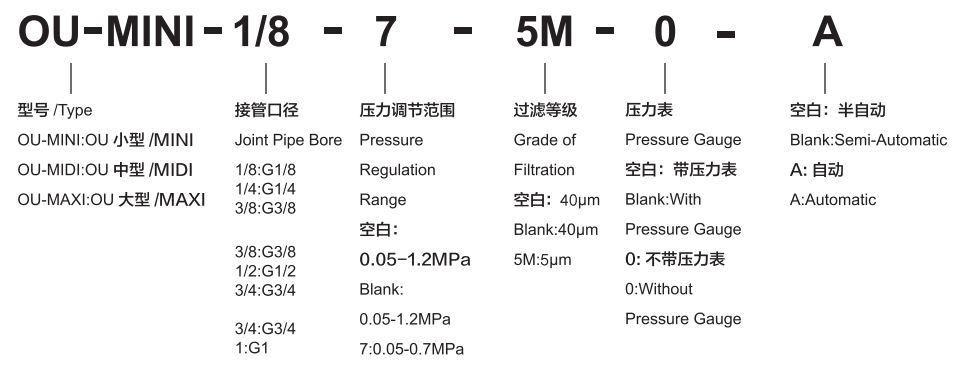

Ordering Code

GraPhic symbol

Synopsis

air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

The proportional lubricator adds a regulated quantity of oil to the filtered air. The oil-mist content proportional to the flow and oil can The OU consisted of OFR and OL， each unit can be ordered separately.The OF with water separator cleans the compressed be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1 to 12 drops/1000L of the air is sufficient.

Specification

Model		OU-MINI			OU-MIDI			OU-MAXI
Operating Fluid		Air
Joint Pipe Bore		G1/8	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Standard Nominal Flow Rate	OU...-A)	700	1000	1200	2000	2600	2600	8300	8500
	OU.…-7-(-A)	800	1350	1500	2000	2800	2800	8500	8700
	OU..-5M-(-A)	600	850	1050	1700	1800	2100	7000	7200
Min.Standard Nominal Flow Rate		3L/min			6L/min			10L/min
Capacity of Condensate Fluid		22ml			43ml			80ml
Grade Of Filtration		40μm/5μm
Primary Pressure	Manual Condensate Drain	0.1~1.6MPa
	Automatic Condensate Drain	0.15~1.2MPa
Working Pressure		0.05~1.2MPa/0.05~0.7MPa
Operating Temperature Range		0~60℃
Material	Housing	Zinc Die-Casting
	Fiter Bowl	PC
	Metal Bowl Guard	Aluminium Alloy
	Adjusting Knob	POM

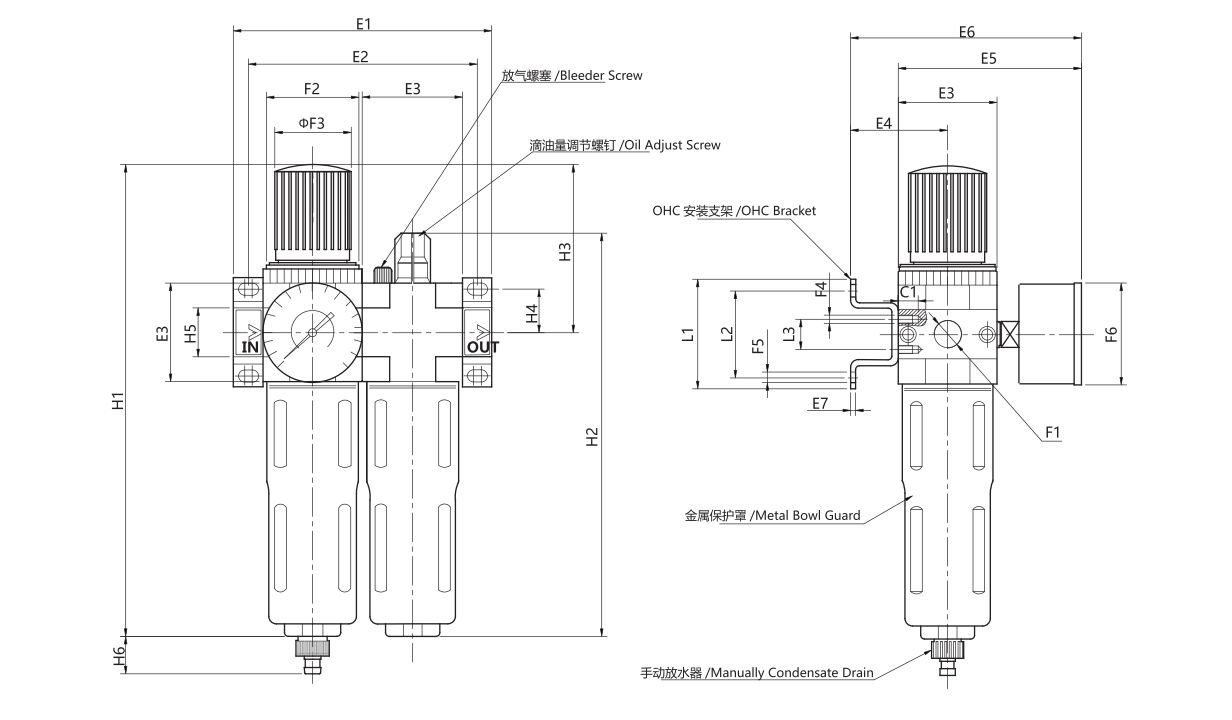

Overall Dimension

Model	E1	E2	E3	E4	E5	E6	E7	F1	F2	F3	F4	F5	F6	L1	L2	L3	H1	H2	H3	H4	H5	H6
OU-MINI-...	104	92	40	39	76	95	2	G1/8 G1/4 G3/8	M36*1.5	31	M4	4.5	40	44	35	11	194	169	69	17.5	20	15
OU-MIDI-...	140	125	55	47	93	112	3	G3/8 G1/2 G3/4	M52*1.5	50	M5	5.5	52	71	60	22	250	206	97	24.5	32	15
OU-MAXI-...	162, 182	146, 157	66	53	104	124	3	G3/4 G1	M36*1.5	31	M5	5.5	63	71	60	22	250	223	80	24.5	3,240	15

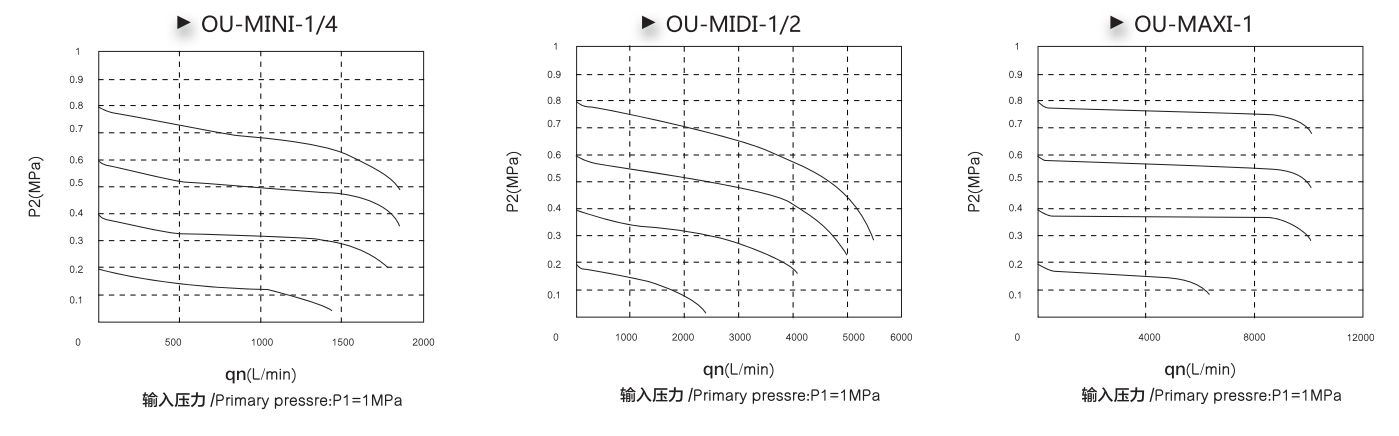

Flowing Character

Standard flow rate qn as a function of the output pressure p2
