LQWS SERIES DOUBLE ACTION-CYLINDER
+
  • LQWS SERIES DOUBLE ACTION-CYLINDER

Category:

Actuators

LQWS SERIES DOUBLE ACTION-CYLINDER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

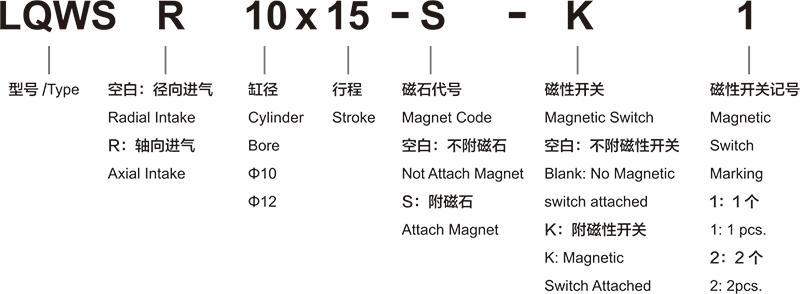

Ordering Code





Specification



Bore(mm) 10
Motion Pattern Double Action
Working Medium Air
Buffer Form Buffer Spacer
OperatingVoltage Range 2-7Kgf/cm²
Ensured Pressure Resistance 10.5Kgf/cm²
Operating Temperature Range 0~60℃
Lubrication Not Lubrication
Stroke 15、30
Joint Pipe Bore M5

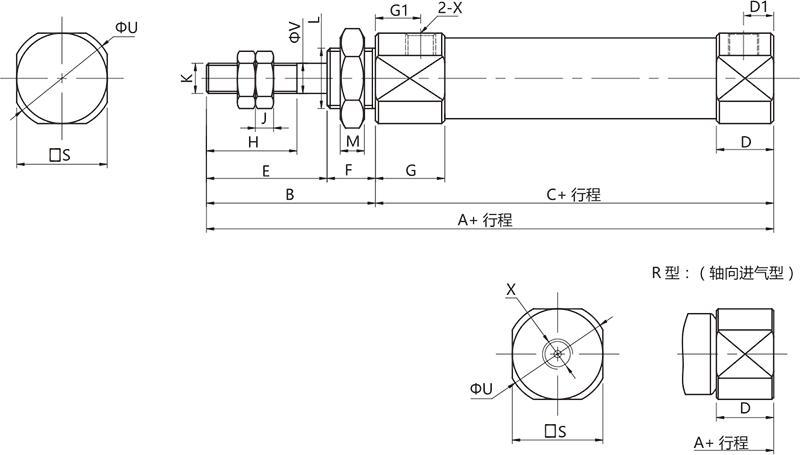

Overall Dimension





Dimension Sheet



Bore(mm) A A1 B C D D1 E F G G1 H I J K L M S U V X
10  75  75  28  47  9.5  5  20  8  11.5  7.5  15  11  2.2  M4 M8x1 4  12  14  4  M5
12  74  74  28  46  9.5  5  20  8  11.5  7.5  15  14  4  M5 M10×1 4  15  17  5  M5
