MAGNETIC SWITCH
+
  • MAGNETIC SWITCH

Category:

Actuators

MAGNETIC SWITCH

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

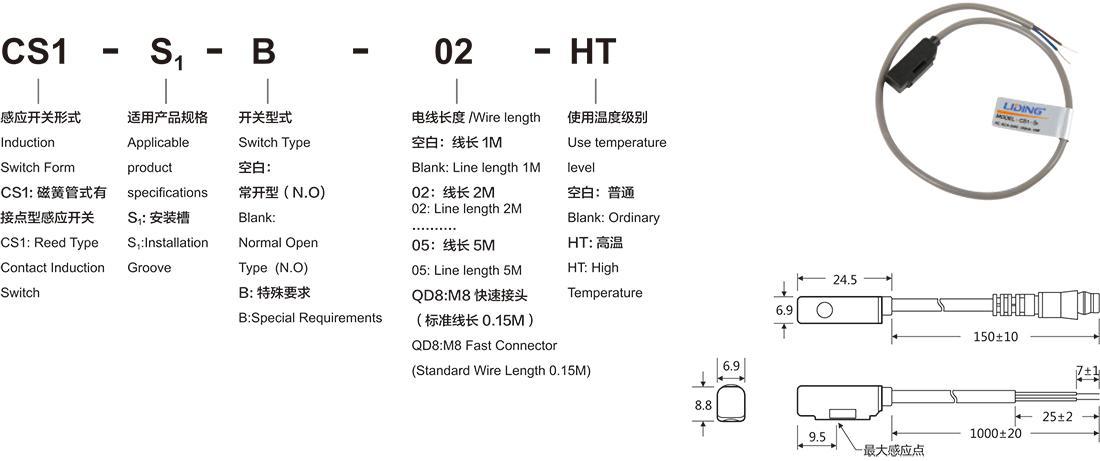

Ordering Code





Specification



Model CS1-S1
Switch Logic SPST Normal Open Type
Sensor Type Contact Reed Type
Opreating Voltage 5~240V DC/AC
Switching Current 100mA max
Contact Rating 10W max
Current Consumption Nothing
Voltage Drop 2.5V max@100mA
Leakage Current Nothing
Indicator Red LED
Cable 3.2Φ,2C,Grey Oil Resistant PVC
Sensitivity 60   Gauss
Max. switch Frequency 200Hz
Temperature Frequency -10~70℃
Shock 30G
Vibration 9G
Fence Classfication IEC 529 IP67(NEMA6)
Protcetion Circuit Nothing

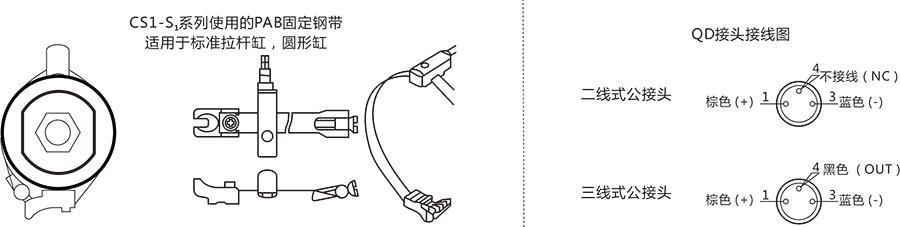

Conntct Diagram



Overall Dimension
