LSF STANDARD CYLINDER ACCESSORY

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

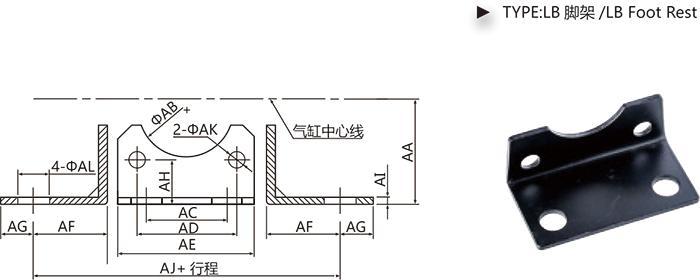

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100
AA	32	36	45	50	63	71
AB	30	35	40	45	45	55
AC	32	38	46	56	72	89
AD	32.5	38	46.5	56.5	72	89
AE	45	52	65	76	94	112
AF	24	28	32	31.5	41.5	41.5
AG	9	11	11	11	14	16
AH	15.8	17	21.8	21.8	27	26.5
Al	3.2	3.2	3.2	3.2	4	4
AJ	142	161	170	185	210	220
AK	6.5	6.5	8.5	8.5	10.5	10.5
AL	7	9	9	9	12	14

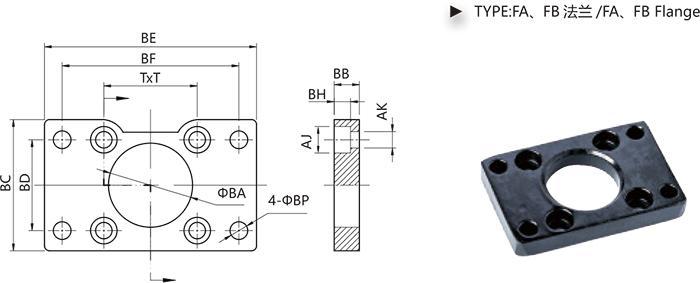

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100
BA	30.3	35.3	40.3	45.3	45.3	55.3
BB	10	10	12	12	16	16
BC	45	52	65	76	94	112
BD	32	36	45	50	63	75
BE	80	90	110	120	150	175
BF	64	72	90	100	126	150
BH	6.5	6.5	8.5	8.5	10.5	10.5
AJ	10.5	10.5	13.5	13.5	16.5	16.5
AK	6.5	6.5	8.5	8.5	10.5	10.5
BP	7	9	9	9	12	14
T	32.5	38	46.5	56.5	72	89

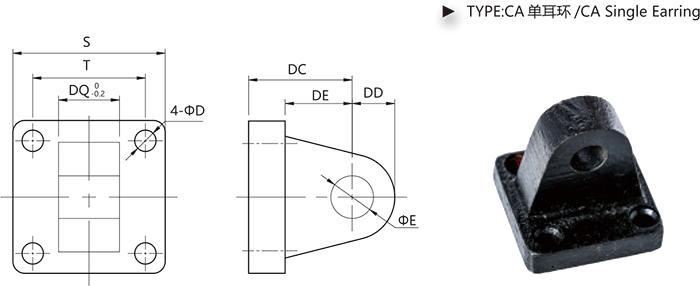

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100
S	45	52	65	76	94	112
T	32.5	38	46.5	56.5	72	89
DC	22	25	27	32	36	41
DD	10	11	13	16	16	20
DE	14	17	17	22	24	25
DQ	26	28	32	40	50	60
D	6.5	6.5	8.5	8.5	10.5	10.5
E	10	12	12	16	16	20

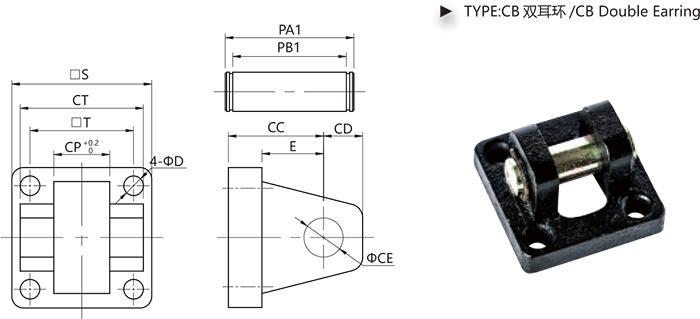

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100
S	45	52	65	76	94	112
T	32.5	38	46.5	56.5	72	89
D	6.5	6.5	8.5	8.5	10.5	10.5
E	14	17	17	22	24	25
CC	22	25	27	32	36	41
CD	10	11	13	16	16	20
CE	10	12	12	16	16	20
CP	26	28	32	40	50	60
CT	45	52	60	70	90	110
PA1	53	60	68	78	100	120
PB1	46.5	53.5	61.5	71.5	91.5	111.5
