LSF SERIES STANDARD CYLINDER(ISO15552:2004)

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

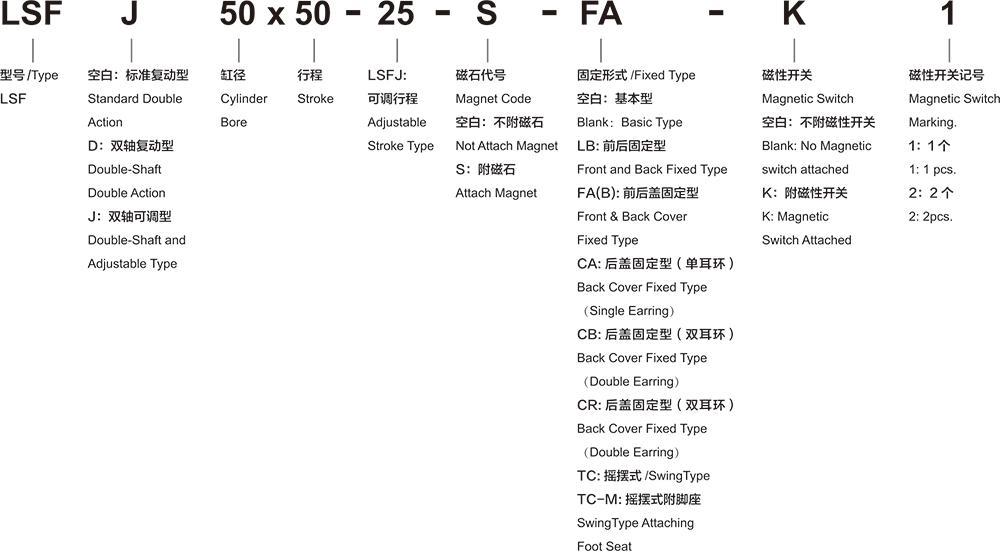

Ordering Code

Specification

Bore(mm)	32	40	50	63	80	100
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Basic Type. FA Type. FB Type. CA Type. CB Type. CR Type. LB Type. TC Type. TC-M Type
OperatingVoltage Range	1~9Kgf/cm²
Ensured Pressure Resistance	13.5Kgf/cm²
Operating Temperature Range	0~70℃
Operating Speed Range	500~800mm/s
Bufer Fom	Adjustable Buffer
Buffer Travel	24					32
Joint Pipe Bore	G1/8	G1/4		G3/8		G1/2

LSFD·LSFJ Fxed Type:FA.FB.LB.TC.TC-M.

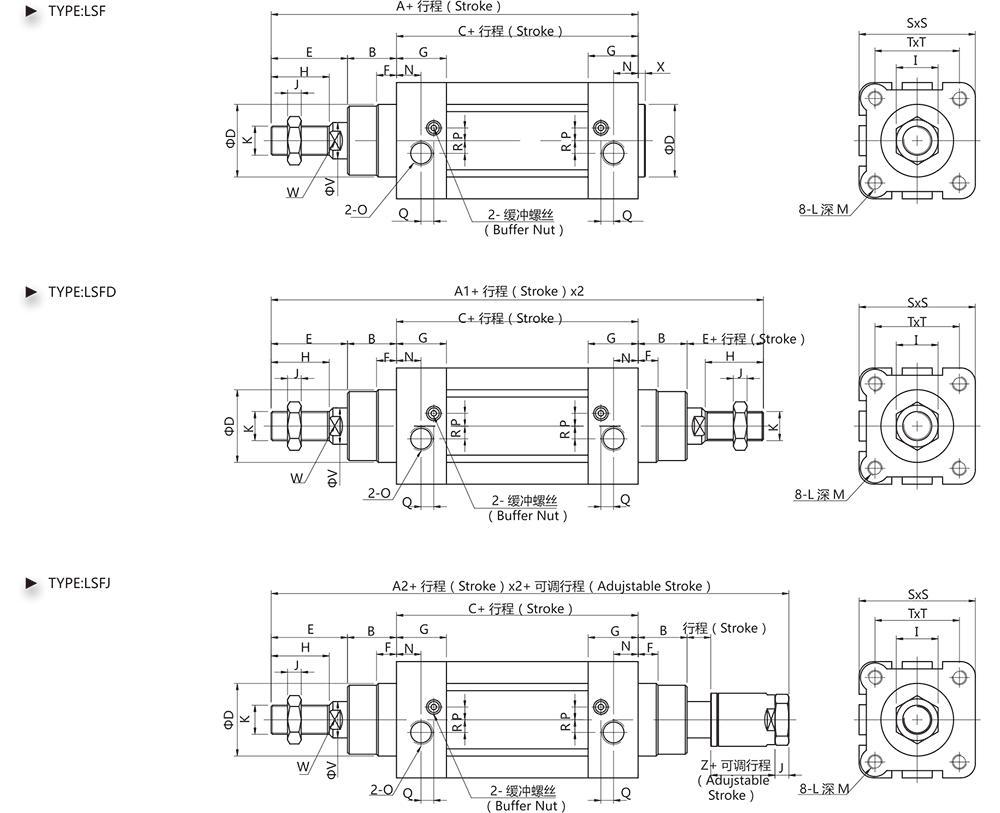

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	A	A1	A2	B	C	D	E	F	G	H	I	J	K	L
32	142	190	185	16	94	30	32	10	25	22	17	6	M10×1.25	M6
40	159	213	207	20	105	35	34	10	29.5	24	17	7	M12×1.25	M6
50	175	244	233	27	106	40	42	10	32	32	23	8	M16×1.5	M8
63	190	258	247	26	122	45	42	10	36	32	23	8	M16x1.5	M8
80	214	301	288	35	127	45	52	10	37	40	30	10	M20×1.5	M10
100	229	321	308	40	137	55	52	10	39	40	30	10	M20×1.5	M10
125	277	394	378	46	160	60	71	10	43.5	54	41	10	M27×2	M12

Symbol/Bore(mm)	M	N	o	P	Q	R	S	T	V	w	X	Z
32	12	15	G1/8	5	3	6.5	45	32.5	12	10	4	21
40	12	17.5	G1/4	7	3	7	52	38	16	13	4	21
50	12	21	G1/4	7	3	9	64	46.5	20	17	4	23
63	12	23	G3/8	8	5	9	75	56.5	20	17	4	23
80	15	24	G3/8	10	5	12	93	72	25	22	5	29
100	15	26	G1/2	10	5	14	112	89	25	22	6	29
125	20	29	G1/2	10	5	14	134	110	32	27	7	40.5
