OL SERIES LUBRICATOR

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

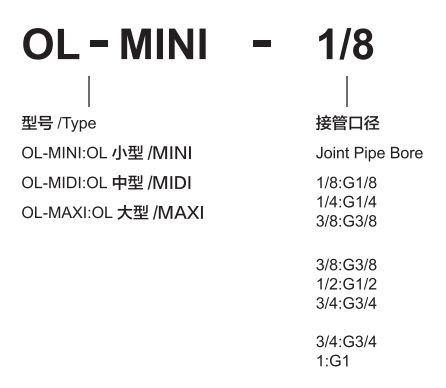

Ordering Code

GraPhic symbol

Synopsis

The direct constant-density lubricator add regulated quantity oil to the compressed air.A valve maintains oil mist content proportional to the compressed oil flow.The pressure drop that occurs
when the air flow through a sight oil indicator.The drop of the oil flows into the air channel when it is atomized.

The oil drop rate is controlled by means of the regulating scew.normally,1 to 12 drops/1000L of the air is sufficient.

Specification

Model		OL-MINI			OL-MIDI			OL-MAXI
Operating Fluid		Air
Joint Pipe Bore		G1/8	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Standard Nominal Flow Rate		1300	2300	2700	5500	6100	6300	8400	9000
Max.Working Pressure		1.6MPa
Min.Standard Nominal Flow Rate		3L/min			6L/min			10L/min
Capacity of Condensate Fluid		22ml			43ml			80ml
Operating Temperature Range		0~60℃
Suggested Lube		ISO VG32 or Same Grade Oil
Material	Housing	Zinc Die-Casting
	Fiter Bowl	PC
	Metal Bowl Guard	Aluminium Alloy
	Adjusting Knob	POM

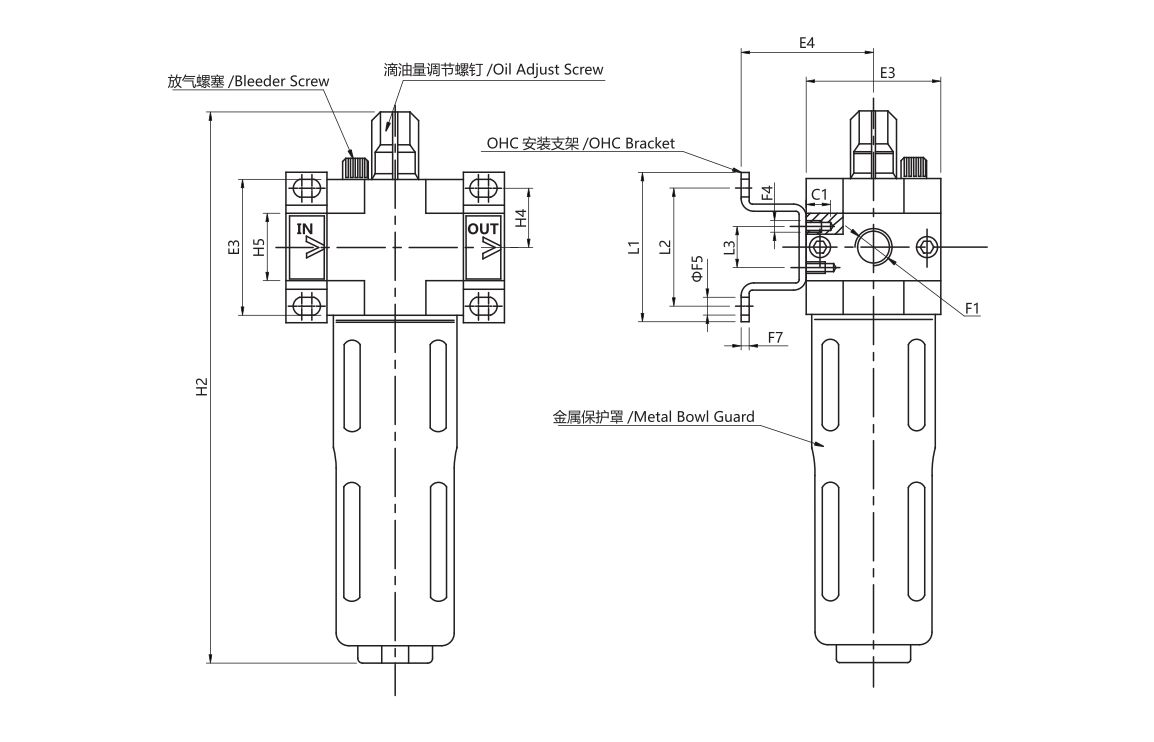

Overall Dimension

Model	E3	E4	E7	F1	F4	F5	L1	L2	L3	H4	H5
OL-MINl-.	40	39	2	G1/8 G1/4 G3/8	M4	4.5	44	35	11	17.5	20
OL-MIDl-.	55	47	3	G3/8 G1/2 G3/4	M5	5.5	71	60	22	24.5	32
OL-MAXI-.	66	53	3	G3/4G1	M5	5.5	71	60	22	24.5	3,240

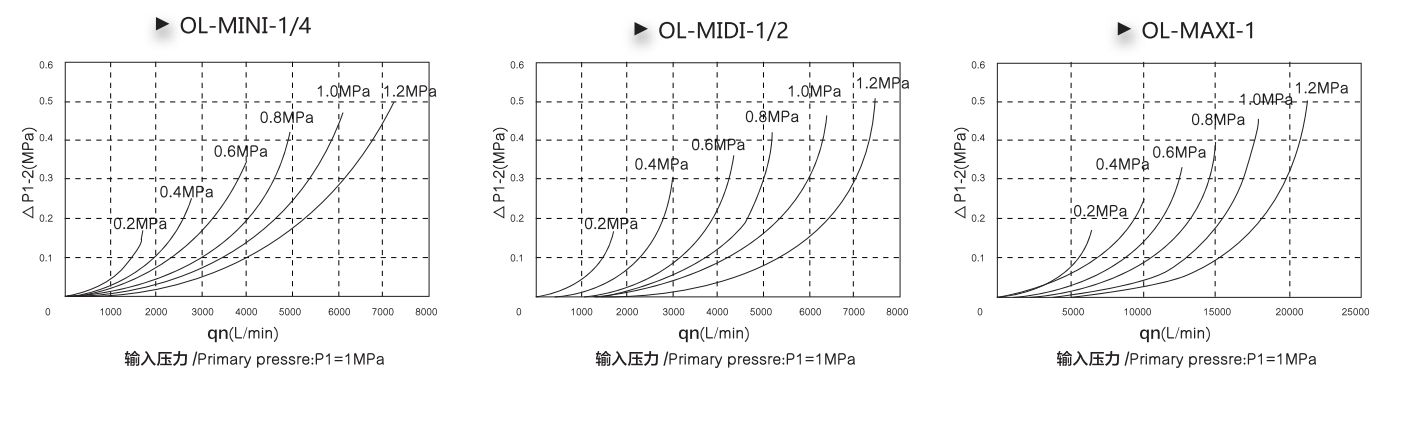

Flowing Character

Standard flow rate qn as a function of the output pressure p2
