Air treatment

OFR SERIES FILTER,REGULATOR

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

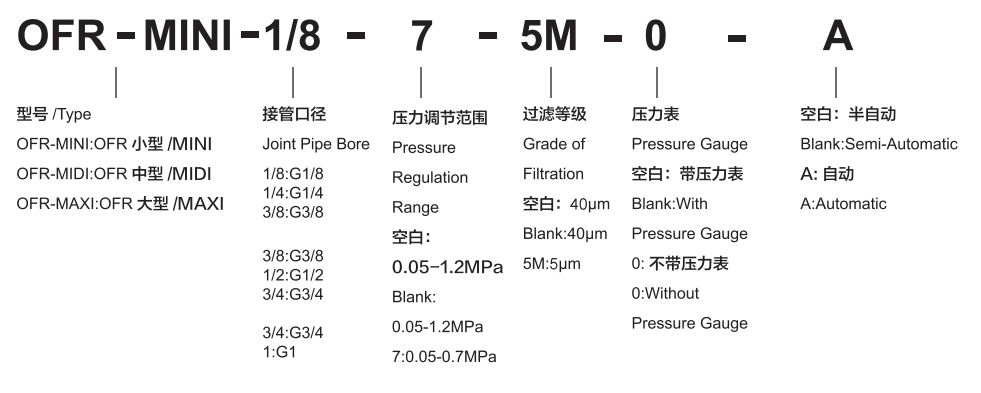

Ordering Code

GraPhic symbol

Synopsis

Filter and pressure regulator combine a single unit,and cleans the compressed air of fluid oil,condensation and dirt particles.

For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

Specification

Model		OFR-MINI			OFR-MIDI			OFR-MAXI
Operating Fluid		空气/Air
Joint Pipe Bore		G1/8	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Standard Nominal Flow Rate	OFR-…(-A)	750	1400	1600	3100	3400	3400	9700	10000
	OFR…-7-(-A)	900	1500	1700	3400	3900	4000	10000	11000
	OFR…-5M-(-A)	650	1200	1350	2400	2500	2600	7600	8000
Capacity of Condensate Fluid		22ml			43ml			80ml
Grade Of Filtration		40μm/5μm
Primary Pressure	Manual Condensate Drain	0.1~1.6MPa
	Automatic Condensate Drain	0.15~1.2MPa
Working Pressure		0.05~1.2MPa/0.05~0.7MPa
Operating Temperature Range		0~60℃
Material	Housing	Zinc Die-Casting
	Filter Bowl	PC
	Metal Bowl Guard	Aluminium Alloy
	Adjusting Knob	POM

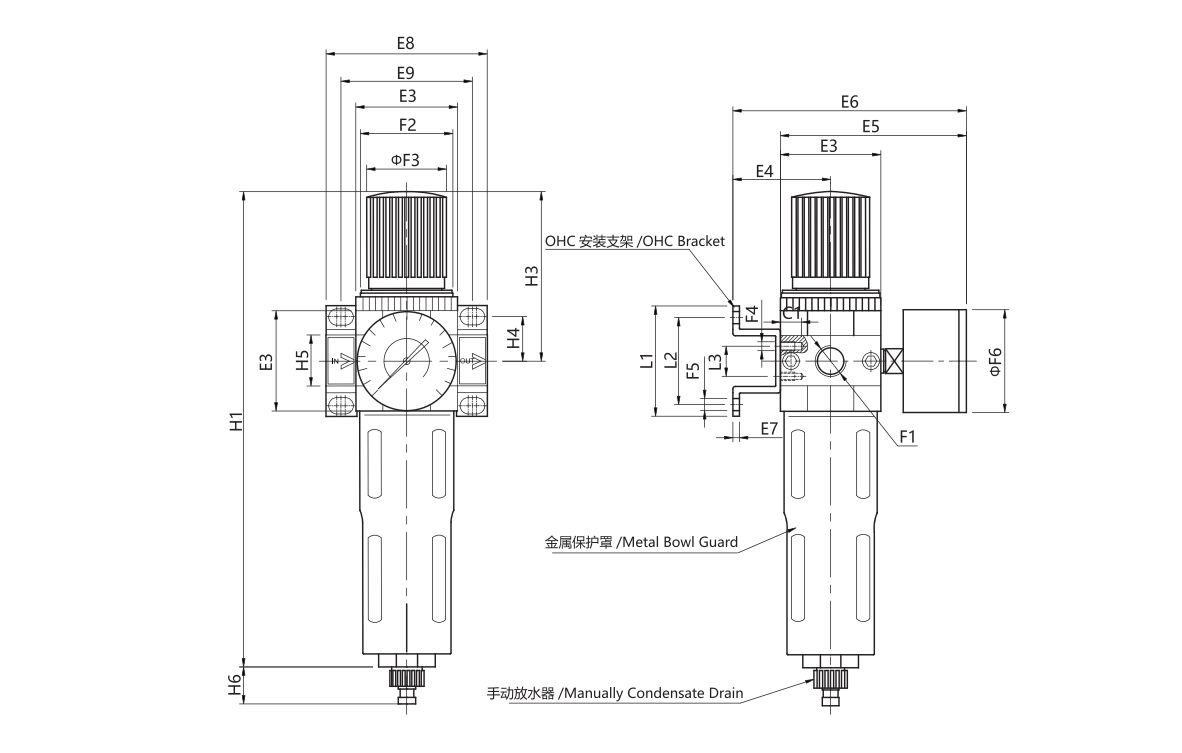

Overall Dimension

Model	E3	E4	E5	E6	E8	E9	F1	F2	F3	F4	F5	F6	L1	L2	L3	H1	H3	H4	H5	H6
OFR-MINl-...	40	39	76	95	64	52	G1/8 G1/4 G3/8	M36*1.5	31	M4	4.5	40	44	35	11	194	69	17.5	20	15
OFR-MIDI-..	55	47	93	112	85	70	G3/8 G1/2 G3/4	M52*1.5	50	M5	5.5	52	71	60	22	250	97	24.5	32	15
OFR-MAXI-..	66	53	104	124	96,116	8,091	G3/4 G1	M36*1.5	31	M5	5.5	63	71	60	22	250	80	24.5	3,240	15

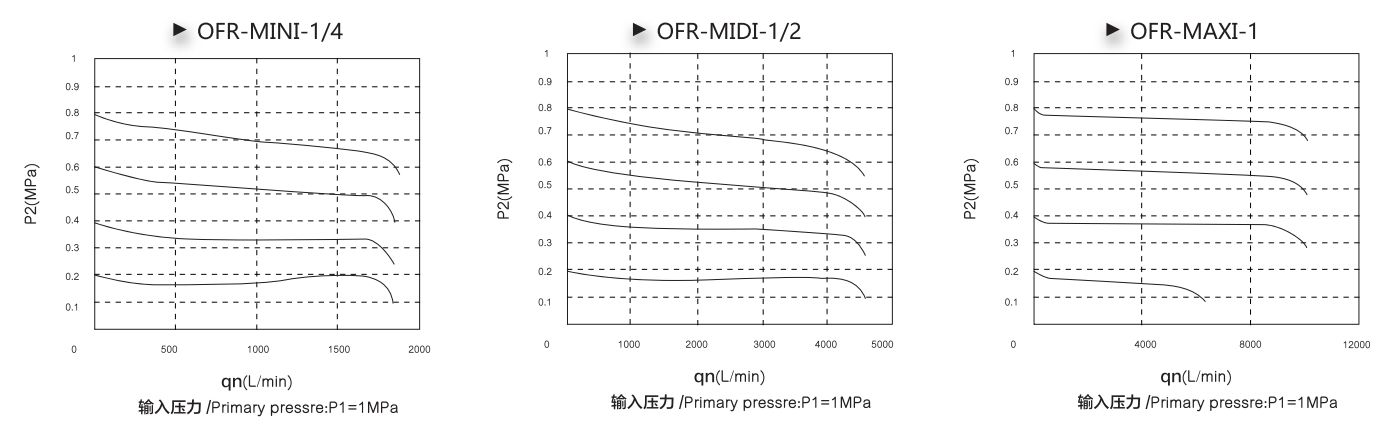

Flowing Character

Standard flow rate qn as a function of the output pressure p2
