LAR SERIES REGULATOR
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

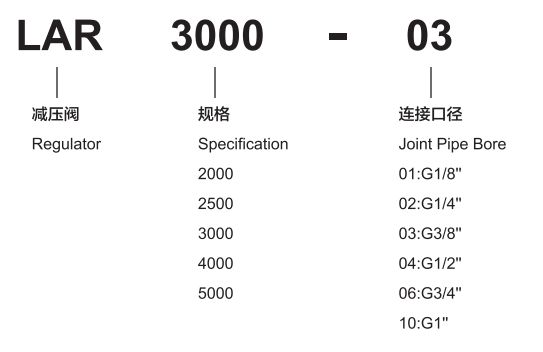

Ordering Code

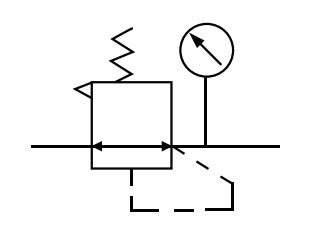

GraPhic symbol
Specification
| Model | LAR2000 -01 |
LAR2000 -02 |
LAR2500 -02 |
LAR2500 -03 |
LAR3000 -02 |
LAR3000 -03 |
LAR4000 -03 |
LAR4000 -04 |
LAR4000 -06 |
LAR5000 -06 |
LAR5000 -10 |
| Rated Flow | 550 | 550 | 2000 | 2000 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | G3/8 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G3/4 | G1 |
| Range of Adjustable Pressure | 0.05~0.85MPa | ||||||||||
| Max.Adjustable Pressure | 1.0MPa | ||||||||||
| Ensured Pressure Resistance | 1.5MPa | ||||||||||
| Operating Temperature Range | 5~60℃ | ||||||||||
| Nalve Type | With Overflow | ||||||||||

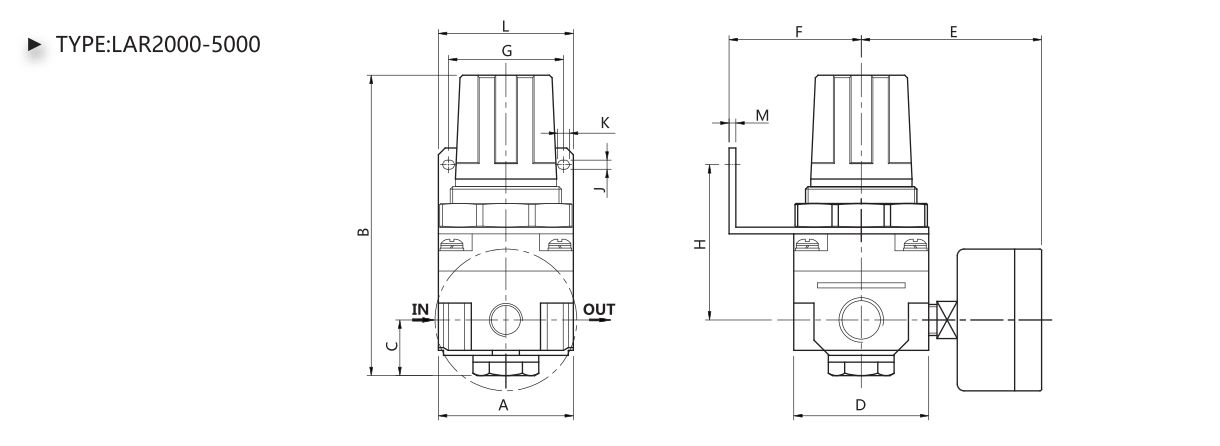

Overall Dimension
| Model | Bore | A | B | C | D | E | F | G | H | J | K | L |
| LAR2000 | 1/8 • 1/4 | 40 | 95 | 17 | 40 | 56.8 | 30 | 34 | 45 | 5.4 | 15.4 | 55 |
| LAR2500 | 1/4 • 3/8 | 53 | 102.5 | 25 | 48 | 60.8 | 30 | 34 | 44 | 5.4 | 15.4 | 55 |
| LAR3000 | 1/4 • 3/8 | 53 | 127.5 | 35 | 53 | 60.8 | 41 | 40 | 46 | 6.5 | 8 | 53 |
| LAR4000 | 3/8 • 1/2 | 70 | 149.5 | 37.5 | 70 | 65.5 | 50 | 54 | 54 | 8.5 | 10.5 | 70 |
| LAR4000-06 | 3/4 | 75 | 154.5 | 40.5 | 70 | 69.5 | 50 | 54 | 56 | 8.5 | 10.5 | 70 |
| LAR5000 | 3/4 • 1 | 90 | 168 | 48 | 90 | 75.5 | 70 | 66 | 65.8 | 11 | 13 | 90 |

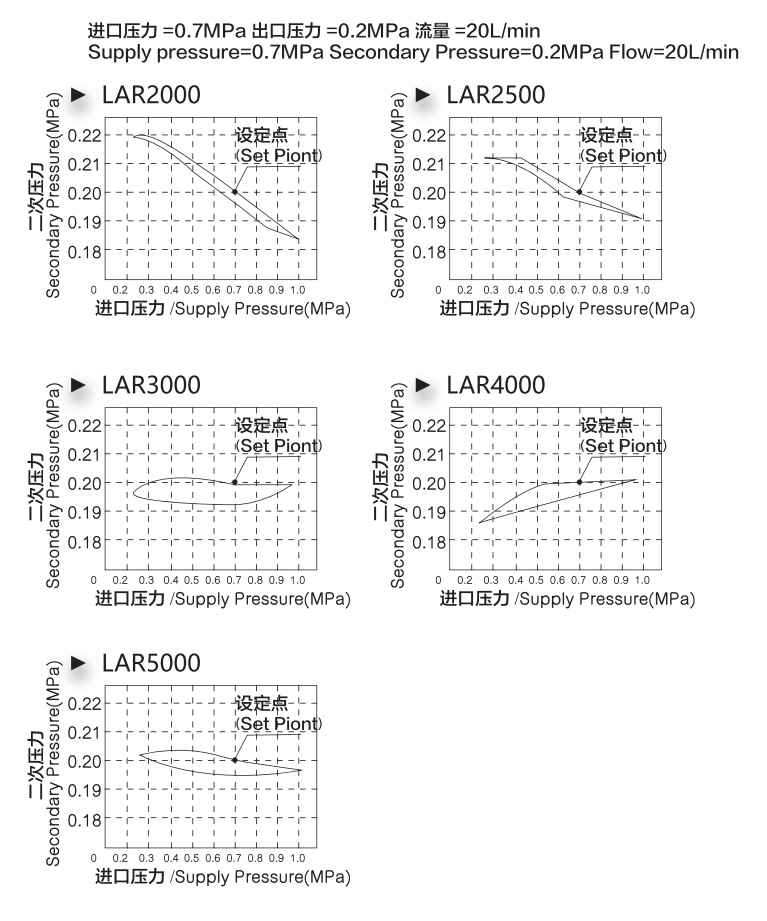

Pressure Character

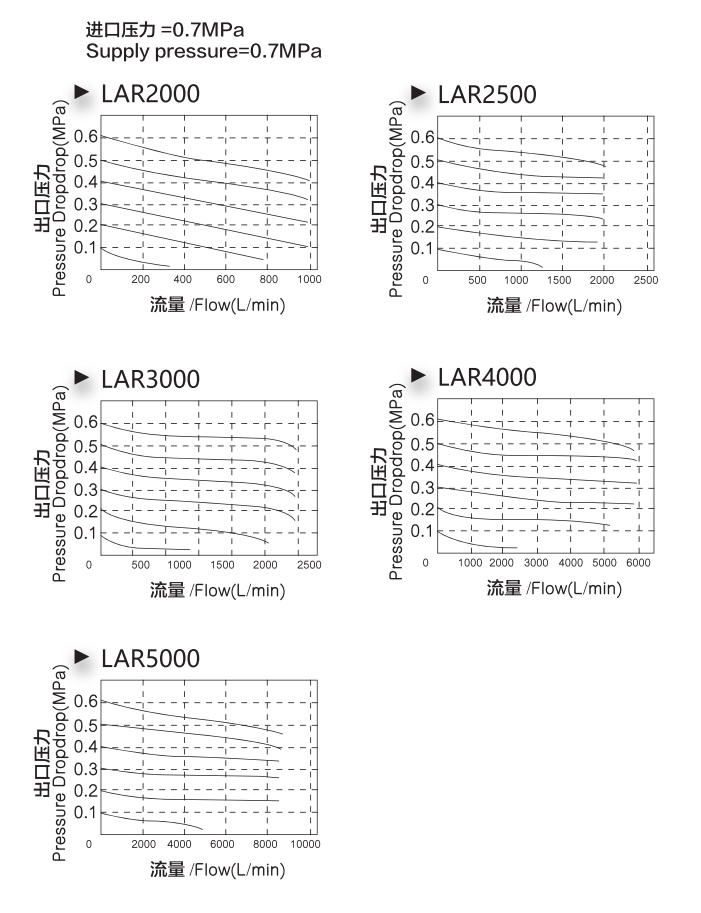

Flowing Character
