LQJ SERIES HEZAGON-CYLINDER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

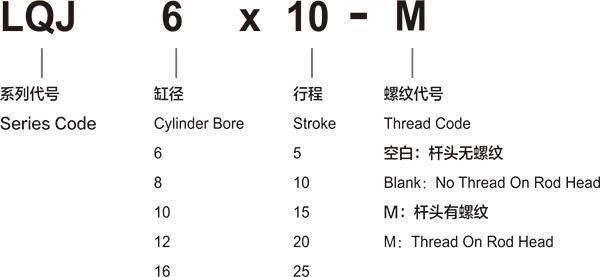

Ordering Code

Specification

Bore(mm)	6	8	10	16
Motion Pattern	Single Move Back Type
Operating Fluid	Air
Stroke	5、10、15、20、25
OperatingVoltage Range	2~7Kgf/cm²
Ensured Pressure Resistance	10.5Kgf/cm²
Operating Temperature Range	0~60℃
Lubrication	Not Repuired
Buffer Fom	一
Joint Pipe Bore	M5

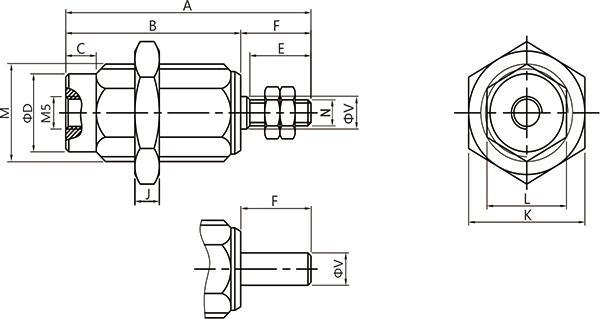

Overall Dimension

Dimension Sheet

Specifications	A	B	C	D	E	F	J	K	L	M	N	V
LQJ6×5	28.5	20	4	8.5	7	8.5	3	14	9	M10×1	M3×0.5	3
LQJ6×10	33.5	25	4	8.5	7	8.5	3	14	9	M10x1	M3×0.5	3
LQJ6×15	39.5	31	4	8.5	7	8.5	3	14	9	M10x1	M3×0.5	3
LQJ6×20	45.5	37	4	8.5	7	8.5	3	14	9	M10x1	M3×0.5	3
LQJ6×25	51.5	43	4	8.5	7	8.5	3	14	9	M10x1	M3×0.5	3
LQJ8x5	31.5	21.5	4	10	7	10	3.2	14	11	M12×1	M4×0.7	5
LQJ8×10	38.5	28.5	4	10	7	10	3.2	14	11	M12×1	M4×0.7	5
LQJ8x15	43.5	33.5	4	10	7	10	3.2	14	11	M12×1	M4×0.7	5
LQJ10×5	33	21.5	4	12	10	11.5	4	19	13	M15×1.5	M4×0.7	5
LQJ10×10	38	26.5	4	12	10	11.5	4	19	13	M15×1.5	M4×0.7	5
LQJ10x15	45	33.5	4	12	10	11.5	4	19	13	M15×1.5	M4×0.7	5
LQJ10×20	52	40.5	4	12	10	11.5	4	19	13	M15×1.5	M4×0.7	5
LQJ10×25	57	45.5	4	12	10	11.5	4	19	13	M15×1.5	M4×0.7	5
LQJ16×5	36.5	21.5	5	19.5	12	15	5	27	20	M22×1.5	M5×0.8	6
LQJ16x10	47	32	5	19.5	12	15	5	27	20	M22×1.5	M5×0.8	6
LQJ16x15	52	37	5	19.5	12	15	5	27	20	M22×1.5	M5×0.8	6
LQJ16×20	59	44	5	19.5	12	15	5	27	20	M22×1.5	M5x0.8	6
LQJ16x30	73	58	5	19.5	12	15	5	27	20	M22×1.5	M5×0.8	6
