LQW SERIES MICRO-CYLINDER
+
  • LQW SERIES MICRO-CYLINDER

Category:

Actuators

LQW SERIES MICRO-CYLINDER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic
LIDA Pneumatic

Product Description

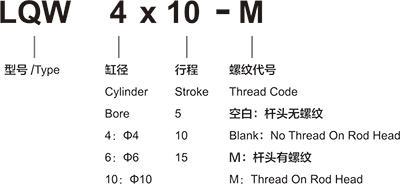

Ordering Code





Specification



Bore(mm) 4  6  10
Motion Pattern Single Move Back Type
Working Medium Air
Buffer Form 一 Buffer Spacer
Operating Voltage Range 2~7Kgf/cm²
Ensured Pressure Resistance 10.5Kgf/cm²
Operating Temperature Range 0~60℃
Lubrication Not Lubrication
Stroke 一 5、10、15 5、10、15、20
Joint Pipe Bore Tu0425 M5 M5

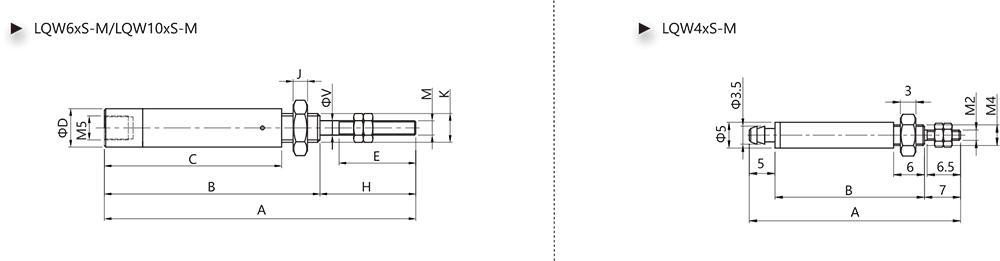

Overall Dimension





Dimension Sheet



Specifications A B C D E H J K M V
LQW4×5 41  29  一 一 一 一 一 一 一 一
LQW4×10 46  34  一 一 一 一 一 一 一 一
LQW4x15 54  42  一 一 一 一 一 一 一 一
LQW6x5 60  40  32  8  16  20  3  M6 M3 3
LQW6×10 65  45  37  8  16  20  3  M6 M3 3
LQW6×15 70  50  42  8  16  20  3  M6 M3 3
LQW6×20 77.5  57.5  49.5  8  16  20  3  M6 M3 3
LQW10×5 69  49  41  11  15  20  3  M8×1 M4 4
LQW10×10 74  54  46  11  15  20  3  M8x1 M4 4
LQW10×15 79  59  51  11  15  20  3  M8x1 M4 4
