INTEGRATIVE MACHINE SERIES SPECIAL CYLINDER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

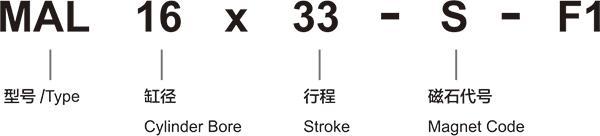

Ordering Code

Specification

Bore(mm)	16
Motion Pattern	Double Action
Working Medium	Air
Buffer Form	Buffer Spacer
OperatingVoltage Range	1~9Kgf/cm²
Ensured Pressure Resistance	13.5Kgf/cm²
Operating Temperature Range	0~70℃
Operating Speed Range	500~800mm/s
Pipe Outer Diameter	φ3.17mm
Joint Pipe Bore	M5×0.8

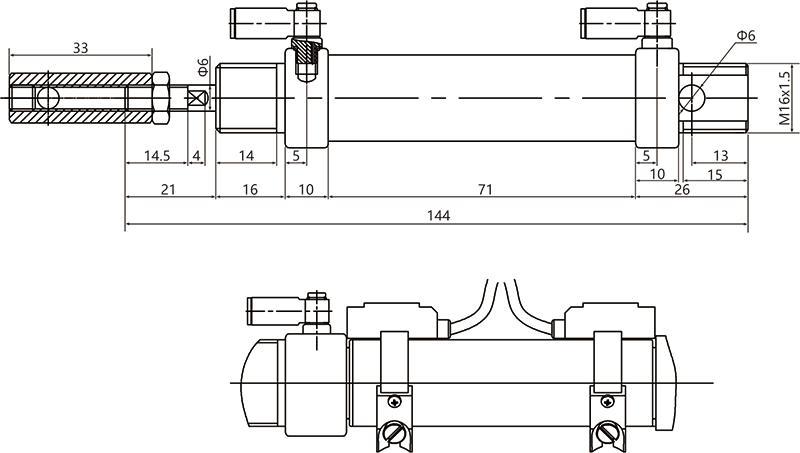

Overall Dimension
