Product Description

Overall Dimension

Dimension Sheet

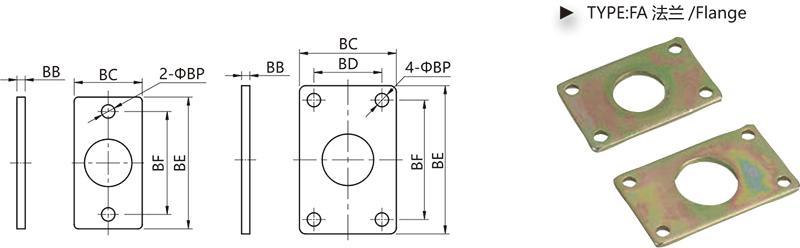

Symbol/Bore(mm)	16	20	25	32	40
BB	3	4	4	4	4
BC	26	38	38	47	50
BD	一	一	一	33	36
BE	52	64	64	72	84
BF	40	50	50	58	70
BP	5.5	6.5	6.5	6.5	6.5

Overall Dimension

Dimension Sheet

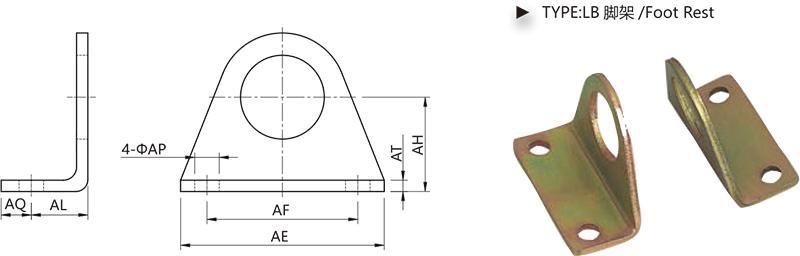

Symbol/Bore(mm)	16	20	25	32	40
AE	44	54	54	59	64
AF	32	40	40	45	50
AH	20	25	25	32	36
AL	13	15	15	25	25
AP	5.5	6.5	6.5	6.5	6.5
AQ	6	8	8	8	8
AT	3	3	3	3	3

Overall Dimension

Dimension Sheet

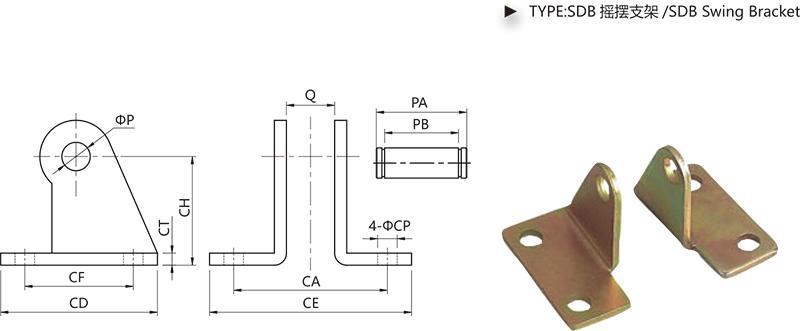

Symbol/Bore(mm)	16	20	25	32	40
CA	44	54	54	41	52
CD	36	48	48	52	56
CE	56	67	67	67	67
CF	24	32	32	36	40
CH	25	32	32	36	40
CT	3	3	3	3	3
CP	5.5	6.5	6.5	6.5	6.5
Q	12	16	16	16	20
PA	21	27	27	30	32
PB	18.5	22.5	22.5	22.5	26.5
φP	6	8	8	10	12

Overall Dimension

Dimension Sheet

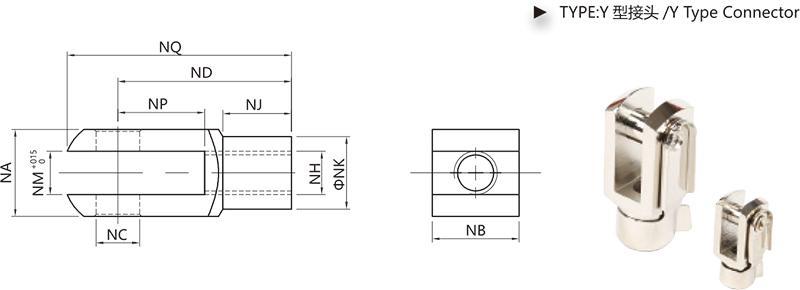

Symbol/Bore(mm)	16	20	25	40	50	80
NA	12	16	19	24	32	40
NB	12	16	19	24	32	40
NC	6	8	10	12	16	20
ND	24	32	40	48	64	80
NH	M6	M8	M10x1.25	M12×1.25	M16×1.75	M20x1.5
NJ	9.5	13.5	15.5	20.5	26	30
NK	10	14	16	20	30	39
NM	6	8	10	12	16	20
NP	12	16	20	24	32	39.5
NQ	31	42	52	62	83	105
