MA SERIES STAINLESS STEEL MINI CYLINDER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

Ordering Code

Specification

Bore(mm)	16	20	25	32	40
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Basic Type、FA Type、LB Type、SDB Type
OperatingVoltage Range	1~9Kgf/cm²
Ensured Pressure Resistance	13.5Kgf/cm²
OperatngTemperature Range	0~70℃
Operating Speed Range	500~800mm/s
Buffer Fom	Buffer Spacer
Joint Pipe Bore	M5×0.8	G1/8

Cylinder Theory Output Sheet

Cylinder I.D. (mm)		16			20			25			32			40
Motion Pattern		Singl- Eaction	Double Action		Singl- Eaction	Double Action		Singl- Eaction	Double Action		Singl- Eaction	Double Action		Singl- Eaction	Double Action
Motion Pattern		Singl- Eaction	Extrusion Side	Pull Side	Singl- Eaction	Extrusion Side	Pull Side	Singl- Eaction	Extrusion Side	Pull Side	Singl- Eaction	Extrusion Side	Pull Side	Singl- Eaction	Extrusion Side	Pull Side
Compression Area(cm²)		2.01	2.01	1.81	3.14	3.14	2.64	4.9	4.9	4.12	8.04	8.04	6.9	12.56	12.56	10.55
AirPressure (Kgficm²)	1	一	2.01	1.81	一	3.14	2.64	一	4.9	4.12	一	8.04	6.9	一	12.56	10.55
	2	一	4.02	3.62	1.57	6.28	5.28	2.45	9.8	8.24	4.02	16.08	13.8	6.28	25.12	21.10
	3	2.01	6.03	5.43	4.71	9.42	7.92	7.35	14.7	12.36	12.06	24.12	20.7	18.84	37.68	31.65
	4	4.02	8.04	7.24	7.85	12.56	10.56	12.25	19.6	16.48	20.10	32.16	27.6	31.40	50.24	42.20
	5	6.03	10.05	9.05	10.99	15.70	13.20	17.15	24.5	20.60	28.14	40.20	34.5	43.96	62.80	52.75
	6	8.04	12.06	10.86	14.13	18.84	15.84	22.05	29.4	24.72	36.18	48.24	41.4	56.52	75.36	63.30
	7	10.04	14.07	12.67	17.27	21.98	18.48	26.95	34.3	28.84	44.22	56.28	48.3	69.08	87.92	73.85
	8	一	一	一	20.41	25.12	21.12	31.85	39.2	32.96	52.26	64.32	55.2	81.64	100.48	84.40
	9	一	一	一	23.55	28.26	23.76	36.75	44.1	37.08	60.30	72.36	62.1	94.20	113.04	94.95

Stroke

Bore(mm)	Standard Stroke														Max.Stroke	Permissible Stroke
16	25	50	75	100	125	150	175	200							300	500
20	25	50	75	100	125	150	175	200	250	300					500	650
25	25	50	75	100	125	150	175	200	250	300	350	400	450	500	500	650
32	25	50	75	100	125	150	175	200	250	300	350	400	450	500	500	650
40	25	50	75	100	125	150	175	200	250	300	350	400	450	500	500	650

Please contact with our company if your cylider stroke is special.

Overall Dimension

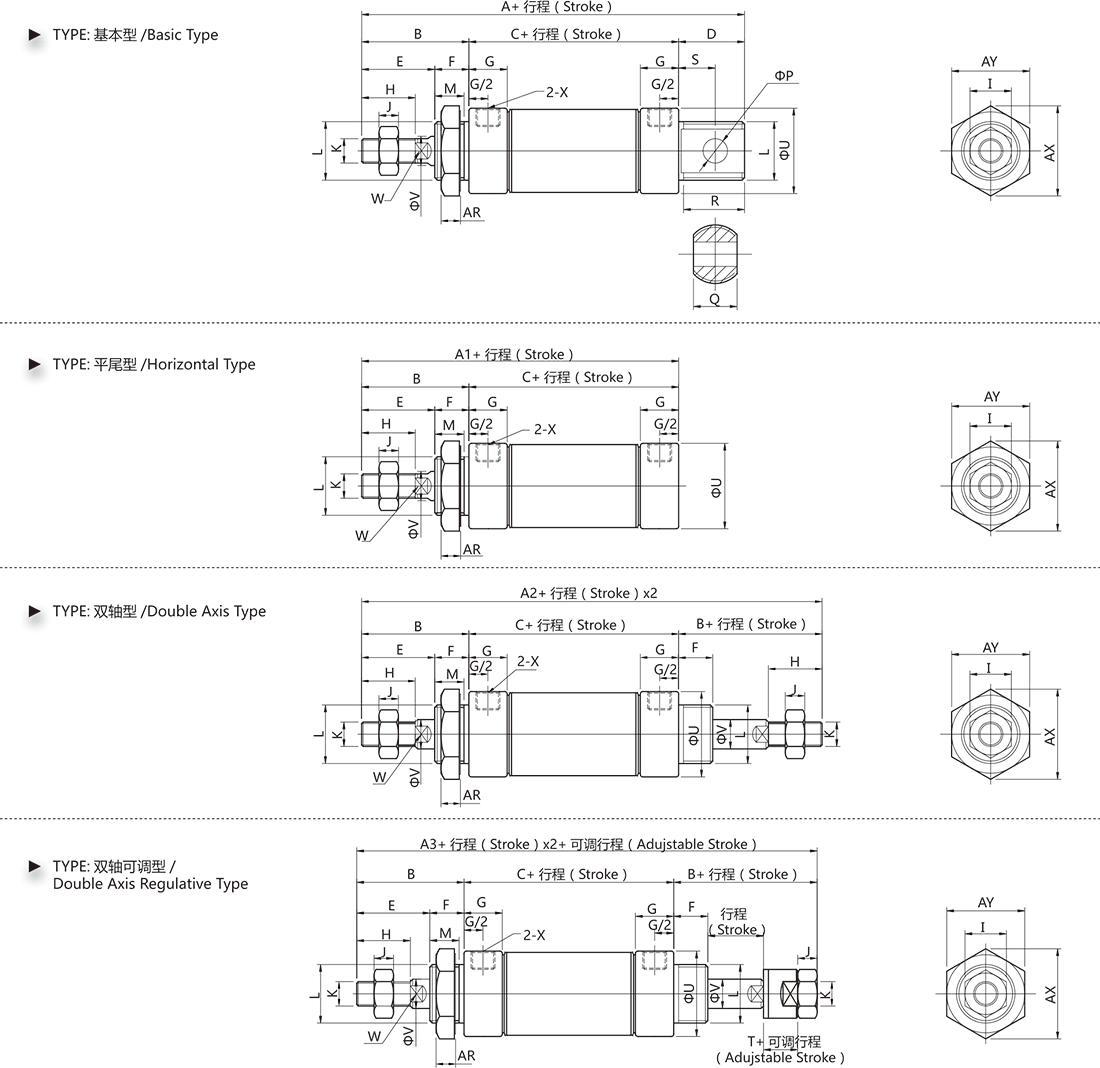

TYPE:MA Double Action

Dimension Sheet

Symbol/Bore(mm)	A	A1	A2	A3	B	C	D	E	F	G	H	I	J	K
16	114	98	136	135	38	60	16	22	16	10	16	10	5	M6
20	137	116	156	153	40	76	21	28	12	16	20	12	6	M8
25	141	120	164	161	44	76	21	30	14	16	22	17	6	M10×1.25
32	147	120	164	161	44	76	27	30	14	16	22	17	6	M10×1.25
40	149	122	168	164	46	76	27	32	14	16.7	24	17	7	M12×1.25

Symbol/Bore(mm)	L	M	P	Q	R	S	T	U	V	W	X	AR	AX	AY
16	M16×1.5	14	6	12	14	9	16	21	6	5	M5	6	25	22
20	M22×1.5	10	8	16	19	12	19	27	8	6	G1/8	7	33	29
25	M22x1.5	12	8	16	19	12	21	30	10	8	G1/8	7	33	29
32	M24×2	12	10	16	25	15	21	35	12	10	G1/8	8	37	32
40	M30×2	12	12	20	25	15	21	41.8	16	14	G1/8	9	47	41

Overall Dimension

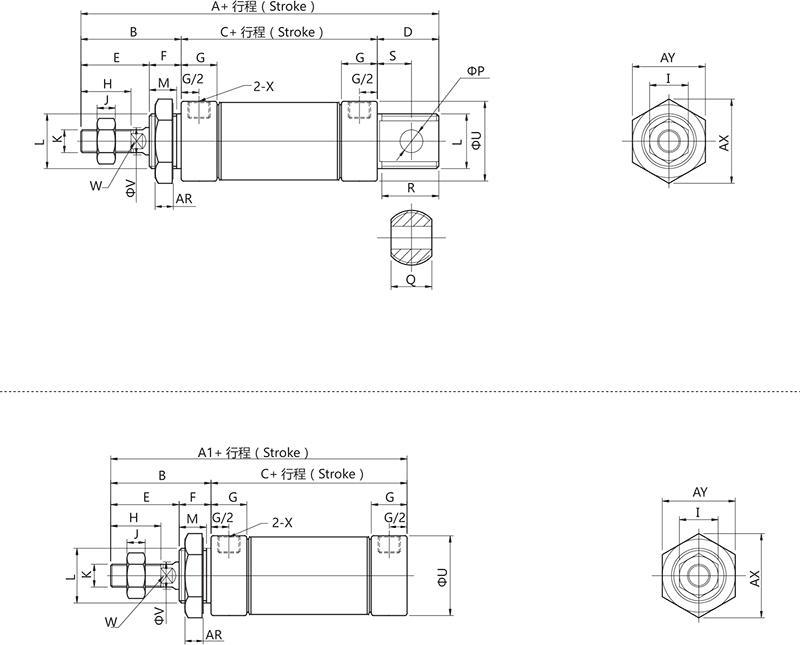

TYPE:MA Single Action

Dimension Sheet

Symbol/Bore(mm)	A		A1		B	C		D	E	F	G	H	I	J	K
Symbol/Bore(mm)	0-50	51-100	0-50	51-100	B	0-50	51-100	D	E	F	G	H	I	J	K
16	114	139	98	123	38	60	85	16	22	16	10	16	10	5	M6
20	137	162	116	141	40	76	101	21	28	12	16	20	12	6	M8
25	141	166	120	145	44	76	101	21	30	14	16	22	17	6	M10×1.25
32	147	172	120	145	44	76	101	27	30	14	16	22	17	6	M10x1.25
40	149	174	122	147	46	76	101	27	32	14	16.7	24	17	7	M12x1.25

Symbol/Bore(mm)	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY
16	M16×1.5	14	6	12	14	9	21	6	5	M5	6	25	22
20	M22×1.5	10	8	16	19	12	27	8	6	G1/8	7	33	29
25	M22x1.5	12	8	16	19	12	30	10	8	G1/8	7	33	29
32	M24×2	12	10	16	25	15	35	12	10	G1/8	8	37	32
40	M30×2	12	12	20	25	15	41.8	16	14	G1/8	9	47	41
