Actuators

CQ2 SERIES STANDARD CYLINDER

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

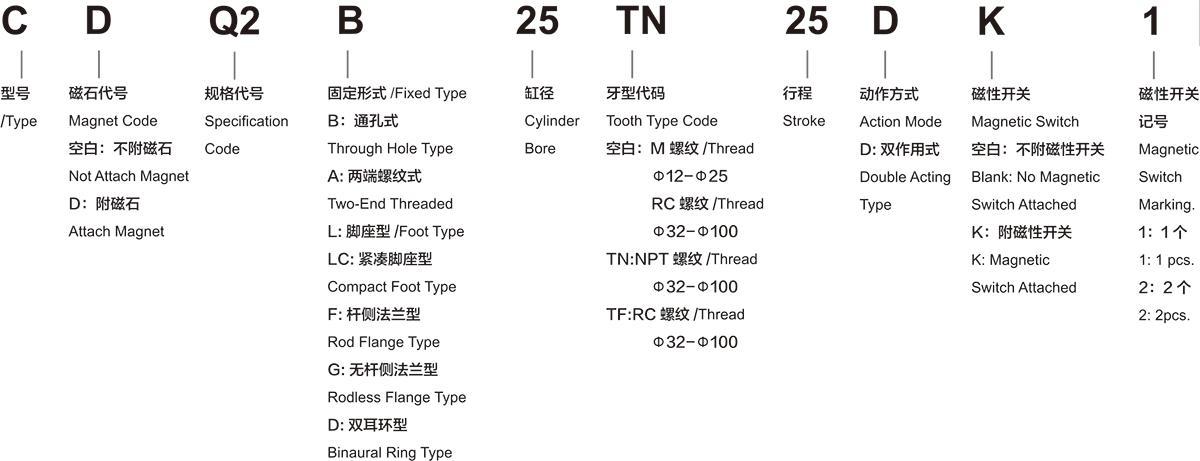

Ordering Code

Specification

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Motion Pattern	Double Action
Working Medium	Air
Ensured Pressure Resistance	1.5MPa
Max.OperatingVoltage	1.0MPa
Min.OperatingVoltage	0.07MPa		0.05MPa
Operating Temperature Range	Non-magnetic switch-10~70℃/With magnetic switch-10~60℃
Operating SpeedRange	50~500mm/s
Joint Pipe Bore	M5				1/8		1/4		3/8

Stroke

Bore(mm)	Standard Stroke
12、16	5	10	15	20	25	30
20、25	5	10	15	20	25	30	35	40	45	50
32、40	5	10	15	20	25	30	35	40	45	50	7	100
50、63、80、100	10	15	20	25	30	35	40	45	50	75	100

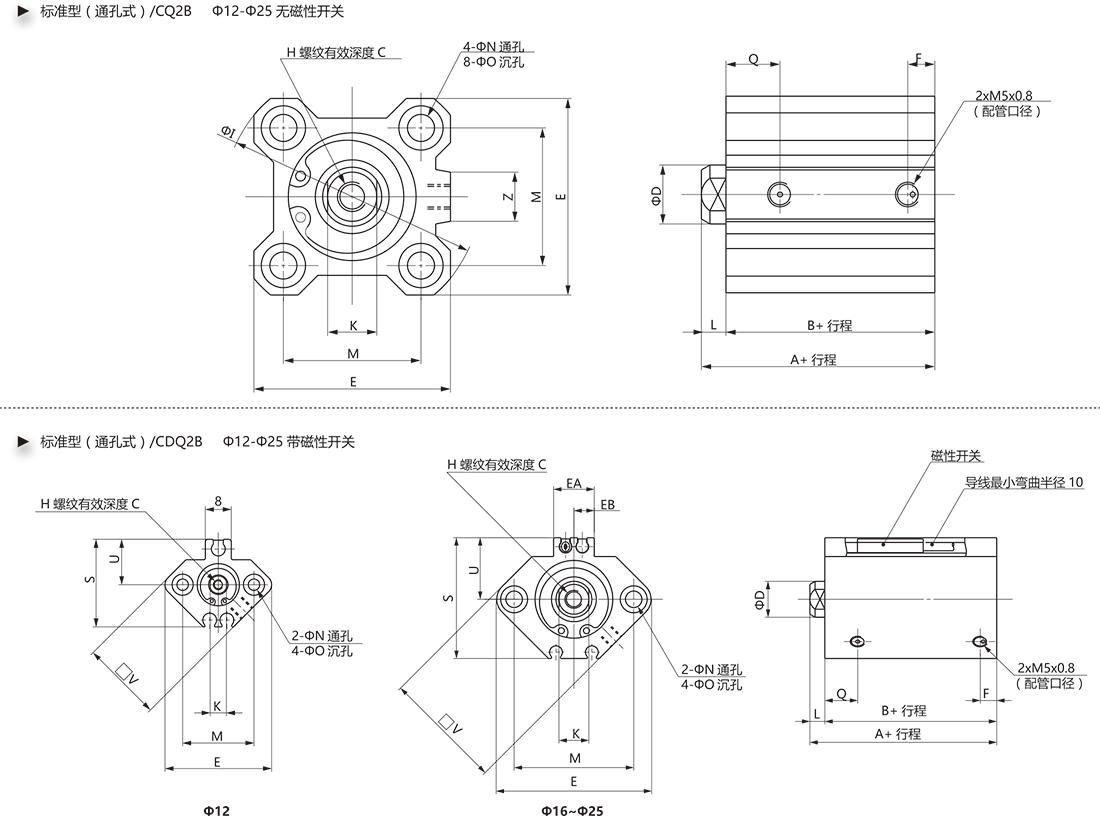

Overall Dimension

Dimension Sheet

CQ2B 12-φ 25Non-magnetic switch
Bore(mm)	Travel range(mm)	A	B	C	D	E	F	H	I	K	L	M	N	O	Q	Z
12	5~30	20.5	17	6	6	25	5	M3×0.5	32	5	3.5	15.5	3.5	6.5 deep 3.5	7.5	一
16	5~30	22	18.5	8	8	29	5.5	M4×0.7	38	6	3.5	20	3.5	6.5 deep 3.5	8	10
20	5~50	24	19.5	7	10	36	5.5	M5x0.8	47	8	4.5	25.5	5.5	9 deep 7	9	10
25	5~50	27.5	22.5	12	12	40	5.5	M6x1.0	52	10	5	28	5.5	9 deep 7	11	10

CDQ2B φ12-φ25 With magnetic switch
Bore(mm)	Travel range(mm)	A B	C	D	E	EA	EB	F	H	I	K	L	M	N	O	Q	S	U	V
12	5~30	31.5 28	6	6	33	一	一	6.5	M3×0.5	32	5	3.5	22	3.5	6.5 deep 3.5	11	27.5	14	25
16	5~30	34 30.5	8	8	37	13.2	6.6	5.5	M4×0.7	38	6	3.5	28	3.5	6.5 deep 3.5	10	29.5	15	29
20	5~50	36 31.5	7	10	47	13.6	6.8	5.5	M5×0.8	47	8	4.5	36	5.5	9 deep 7	10.5	35.5	18	36
25	5~50	37.5 32.5	12	12	52	13.6	6.8	5.5	M6x1.0	52	10	5	40	5.5	9 deep 7	11	40.5	21	40

Overall Dimension

Dimension Sheet

Type	Standard Type
Bore (mm)	Travel Ra ng(mm)	Non-Magnetic Switch					Magnetic Switch					C	D	E	H	J	K	L	M	N	O	W	Z
		A	B	F	P	Q	A	B	F	P	Q
32	5	30	23	5.5	M5×0.8	11.5	40	33	7.5	1/8	10.5	13	16	45	M8x1.25	4.5	14	7	34	5.5	9deep7	49.5	14
	10~50			7.5	1/8	10.5
	75,100	40	33
40	5~50	36.5	29.5	8	1/8	11	46.5	39.5	8	1/8	11	13	16	52	M8x1.25	5	14	7	40	5.5	9deep7	57	15
	75,100	46.5	39.5
50	10~50	38.5	30.5	10.5	1/4	10.5	48.5	405	0.5	1/4	10.5	15	20	64	M10×1.5	7	17	8	50	6.6	11deep8	71	19
	75,100	48.5	40.5

Type	Standard Type
Bore(mm)	Travel Range (mm)	Non-Magnetic Switch		Magnetic Switch		C	D	E	F	H	J	K	L	M	N	O	P	Q	W	Z
		A	B	A	B
63	10~50	44	36	54	46	15	20	77	10.5	M10×1.5	7	17	8	60	9	14deep10.5	1/4	15	84	19
	75,100	54	46
80	10~50	53.5	43.5	63.5	53.5	21	25	98	12.5	M16×2.0	6	22	10	77	11	17.5deep13.5	3/8	16	104	25
	75,100	63.5	53.5
100	10~50	65	53	75	63	27	30	117	13	M20×2.5	6.5	27	12	94	11	17.5deep13.5	3/8	23	123.5	25
	75,100	75	63
