Product Description

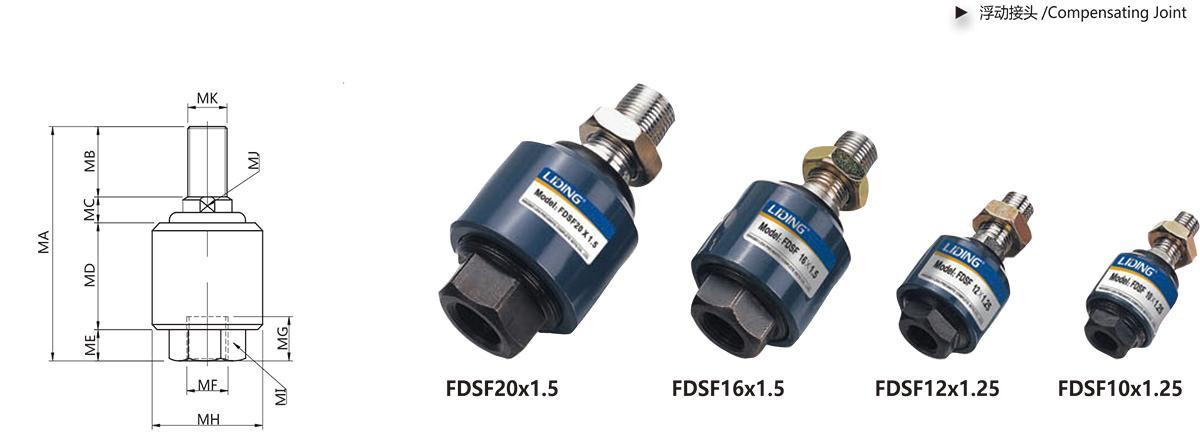

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	MA	MB	MC	MD	ME	MF	MG	MH	MI	MJ	MK
20	51	20	6	17	8	M8	12	24	13	8	M8
25	58	22	7	21	8	M10×1.25	12	26	17	10	M10×1.25
32	58	22	7	21	8	M10×1.25	12	26	17	10	M10×1.25
40	58	22	8	21	7	M12x1.25	12	28	19	12	M12x1.25
50	90	27	10	41	12	M16×1.5	14	45	27	15	M16×1.5
63	90	27	10	41	12	M16×1.5	14	45	27	15	M16×1.5
80	102	29	13	46	14	M20×1.5	18	53	33	22	M20×1.5
100	102	29	13	46	14	M20×1.5	18	53	33	22	M20×1.5

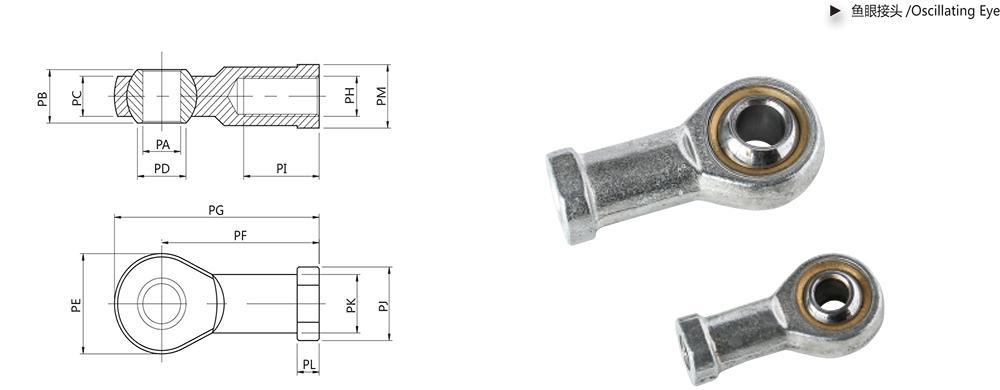

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	PA	PB	PC	PD	PE	PF	PG	PH	PI	PJ	PK	PL	PM
20	8	12	9	10.4	22	36	47	M8	17	16	12.5	5	14
25	10	14	11	12.9	26	43	56	M10×1.25	21	19	15	6.5	17
32	10	14	11	12.9	26	43	56	M10×1.25	21	19	15	6.5	17
40	12	16	12	15.4	30	50	65	M12×1.25	24	22	17.5	6.5	19
50	16	21	15	19.3	38	64	83	M16x1.5	33	27	22	8	22
63	16	21	15	19.3	38	64	83	M16×1.5	33	27	22	8	22
80	20	25	18	24.3	46	77	100	M20×1.5	40	34	27.5	10	32
100	20	25	18	24.3	46	77	100	M20x1.5	40	34	27.5	10	32
