SC STANDARD CYLINDER ACCESSORY

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125

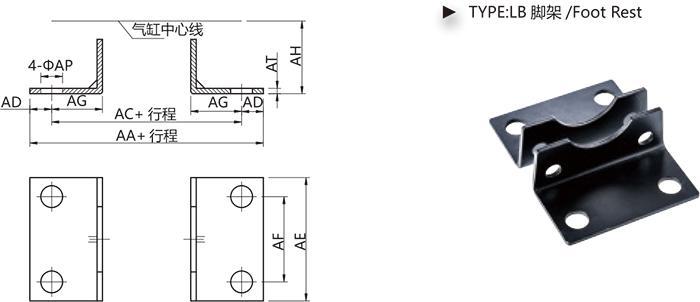

AA	153	169	173	184	200	210	250
AC	134	140	149	158	168	174	214
AD	9.5	14.5	12	13	16	18	18
AE	50	57	68	80	97	112	140
AF	33	36	47	56	70	84	90
AG	20.5	23.5	28	31	30	30	45
AH	28	30	36.5	41	49	57	90
AP	9	12	12	12	14	14	16
AT	3.2	3.2	3.2	3.2	4	4	8

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125

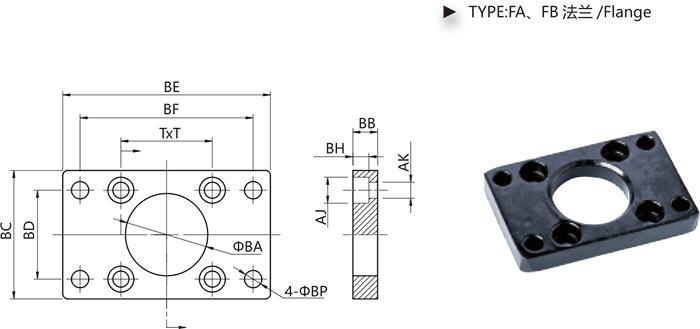

BA	28.3	32.3	38.3	38.3	47.3	47.3	56
BB	10	10	10	12	16	16	20
BC	47	52	65	76	95	115	140
BD	33	36	47	56	70	84	90
BE	72	84	104	116	143	162	224
BF	58	70	86	98	119	138	180
BH	6.5	6.5	6.5	8.5	10.5	10.5	15
AJ	10.5	10.5	10.5	13.5	16.5	16.5	19
AK	6.5	6.5	6.5	8.5	10.5	10.5	12.5
BP	7	7	9	9	11	11	16
T	33	37	47	56	70	84	110

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125

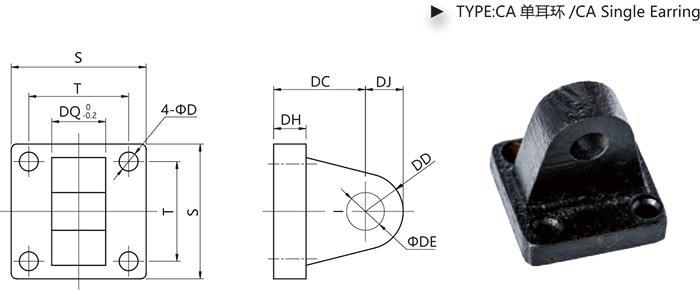

S	44	50	62	75	94	112	140
T	33	37	47	56	70	84	110
DC	34	34	34	34	48	48	50
DD	13	14	15	15	20	20	25
DE	12	14	14	14	20	20	25
DJ	13	14	15	15	20	20	25
DQ	16	20	20	20	32	32	70
DH	10	10	10	10	15	15	15
D	6.5	6.5	6.5	8.5	10.5	10.5	12.5

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125
S	48	50	62	75	94	112	140
T	33	37	47	56	70	84	110

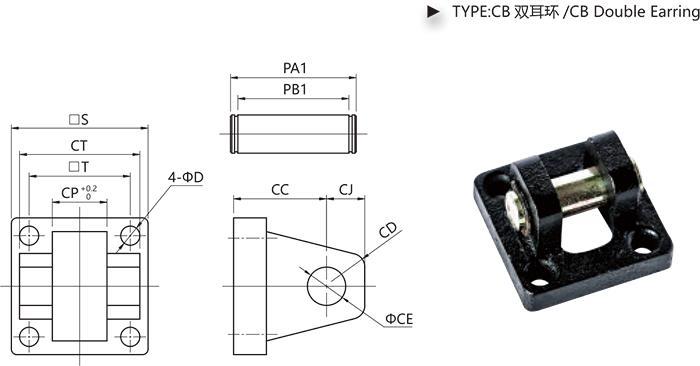

CC	19	19	19	19	32	32	50
CD	5	5	3	3	8	8	25
CE	12	14	14	14	20	20	25
CJ	13	13	15	15	21	21	25
CP	16.3	20.5	20.3	20.3	32.3	32.3	70
CT	32	44	52	52	64	64	120
PA1	41	51.8	60.3	60.3	73.8	73.8	130
PB1	33.5	45.8	54	54	65.5	65.5	121.5
CH	10	10	10	10	15	15	15
D	6.5	6.5	6.5	8.5	10.5	10.5	12.5

Overall Dimension

Dimension Sheet

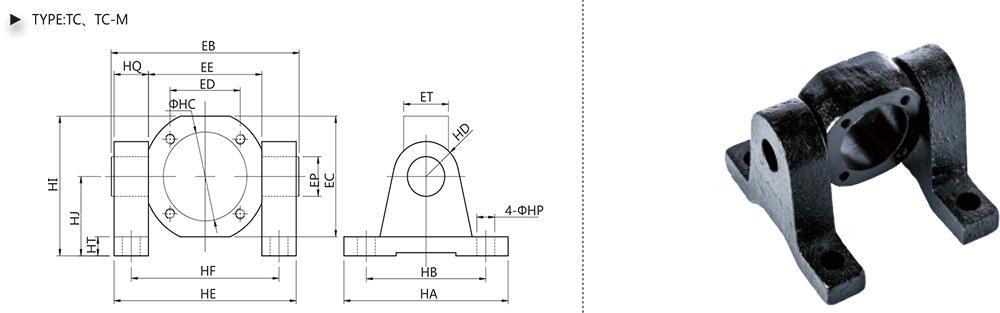

Symbol/Bore(mm)	EB	EC	ED	EE	EP	ET	HA	HB	HC	HD	HE	HF	HI	HJ	HP	HQ	HT
40	113	63	37	63	25	30	110	80	45.5	22	109	86	81.5	50	12	23	12
50	126	76	47	76	25	30	110	80	55.5	22	122	99	88	50	12	23	12
63	138	88	56	88	25	30	110	80	68.5	22	134	111	94	50	12	23	12
80	164	114	70	114	25	35	110	80	87.5	22	160	137	127	70	14	23	14
100	182	132	84	132	25	40	110	80	107.5	22	178	155	136	70	14	23	14
125	209	154	110	158	30	36	145	105	一	一	212	185	一	85	18	27	28

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	16	20	25	32	40	50	63	80	100	125

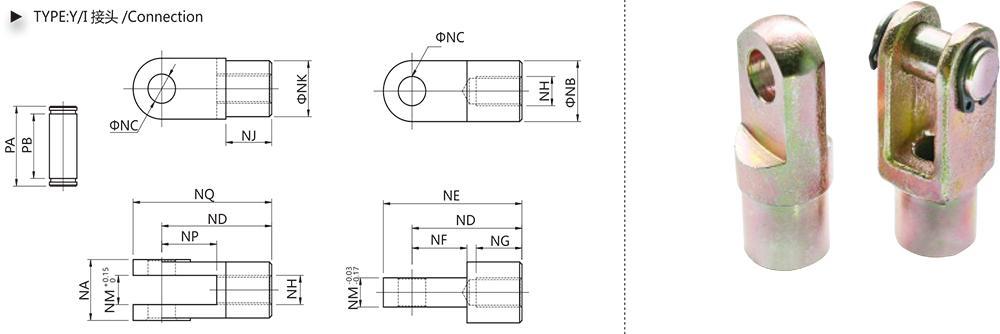

NA	12	16	20	19	25.4	32	32	44.4	44.4	62
NB	6	8	10	20	24	32	32	40	40	49
NC	6	8	10	10	12	16	16	20	20	20
ND	24	32	40	40	48	64	64	80	80	100
NE	30	40	52	52	67	89	89	112	112	120
NF	8.5	11	15	15	24	32	32	40	40	一
NG	10	15	20	20	20	23	23	30	30	55
NH	M6	M8	M10×1.25	M10×1.25	M12×1.25	M16×1.5	M16×1.5	M20×1.5	M20×1.5	M27×2
NJ	6	10	14	12	20	22	22	30	30	27
NK	11.5	14	18	18	23	30	30	39	39	38
NM	6	8	11	10	12	16	16	20	20	32.5
NP	10	17	21	20	24	32	32	40	40	40
NQ	30	40	51	52	62	83	83	105	105	120
PA	17	19	25	25	32.8	39.3	39.3	53.3	53.3	74
PB	12	16	20	19.5	26.5	33	33	45	45	64
