AL、BL SERIES LUBRICATOR

To Provide Better Pneumatic Products For Automatic Equipment Industry

Enquiry

Contact

Product Description

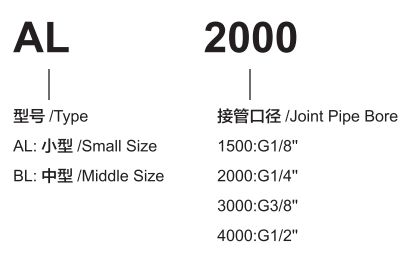

Ordering Code

GraPhic symbol

Specification

Model		AL1500	AL2000	BL2000	BL3000	BL4000
Operating Fluid		Air
Joint Pipe Bore		G1/8	G1/4	G1/4	G3/8	G1/2
Ensured Pressure Resistance		1.5MPa
Operating Temperature Range		5~60℃
Capacity of Oil Feed Cup		25cc		90cc
Suggested Lube		ISO VG32 or Same Grade Oil
Weight		0.17kg 0.25kg
Material	Body	Aluminum Die-casting Fomring
	Container Cup	PE
	Proteclive Cup Cover	一		铁/Iron

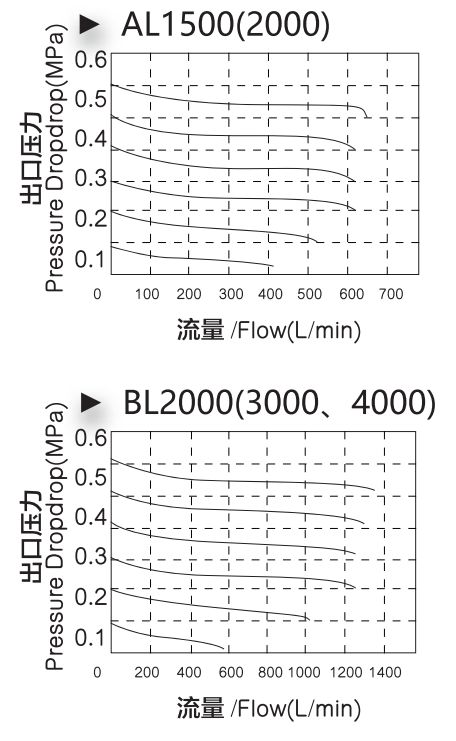

Pressure Character

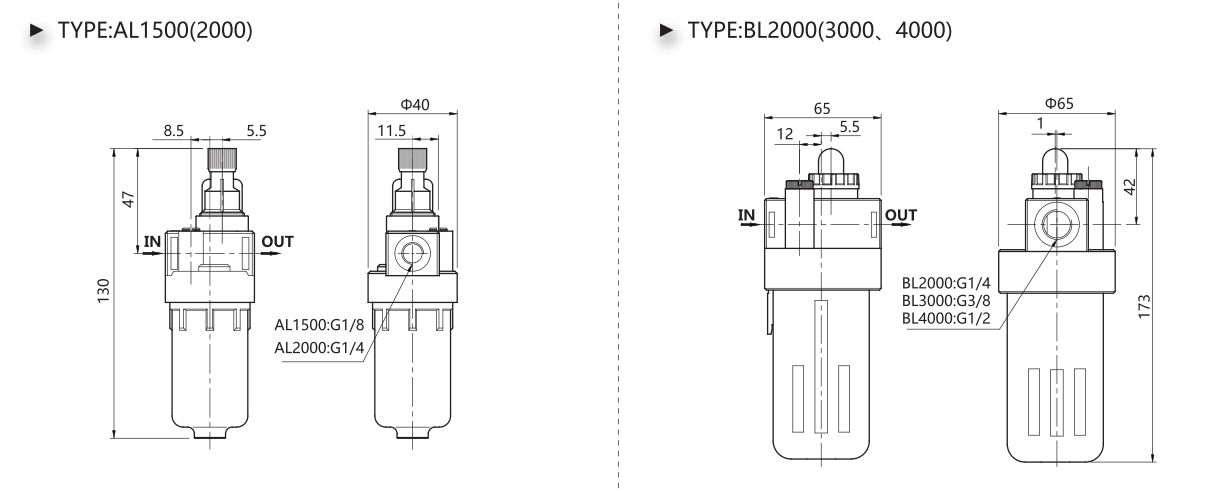

Overall Dimension

Lubricator is a mechanical device designed to deliver controlled lubrication to machinery and equipment, ensuring smooth operation and reducing wear and friction. It provides a consistent supply of oil or grease to moving parts, helping extend equipment service life and improve performance efficiency.

Made from high-quality metal or durable engineering plastic, it offers excellent pressure resistance and long-lasting reliability. The adjustable flow control allows precise lubrication according to different working conditions. It is widely used in pneumatic systems, industrial machinery, automotive maintenance, and manufacturing equipment. Easy to install and maintain, it is an essential component for reducing downtime and improving operational stability.
