WG SERIES MINI-VALVE
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description
WG23-6 solenoid valve adopts three-wire special coil (utility wire,open wire,close wire).When the utility wire and open wire are energized,the solenoid valve keeps open;when the utility wire and close wire are energized,the solenoid valve keeps closed.This valve can be used in the working environment with long switching period,and it solves the defect of coil damaged by heating due to long time electrification.It is safe,reliable and has long service life.

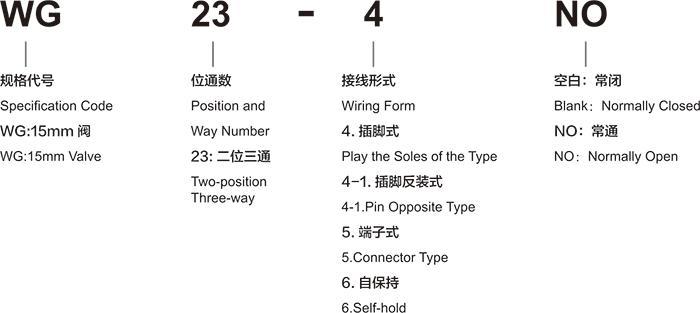

Ordering Code
Synopsis
The valve is designed according to WE series valves developed by our company.The valve body is made of high-quality synthetic plastics,special sealing materials and advanced technology.It has simple and beautiful appearance.sensitive commutation,good stability,high frequency,low power and long service life.It is widely used in the field of air route commutation control in machinery manufacturing and textile industry.
Specification
| Model | WG23-4 | WG23-4NO | WG23-5 |
| Working Medium | 40 Micron Filtered Air | ||
| Operating Temperature | -25~50℃ | ||
| Response time(ms) | ≤10ms/10ms or Less | ||
| Max Operating Frequency | Cycle/Sec | ||
| Min.Operating Frequency | Cycle/Day | ||
| Lubrication | Not Lubrication | ||
| ManualOverride | Not Lubrication | ||
| Enclosure | Dust-Proof | ||
| Electrical Entry | Play the Soles of the Type | Connector Type | |
| Working-Pressure | 0~0.7MPa | ||
| Standard Voltage | DC24V.12V.6V | ||
| Allowable Voltage | ±10% | ||
| Power Consumption | 2.0W | ||
| Joint Pipe Bore | Plate Connection Type | ||

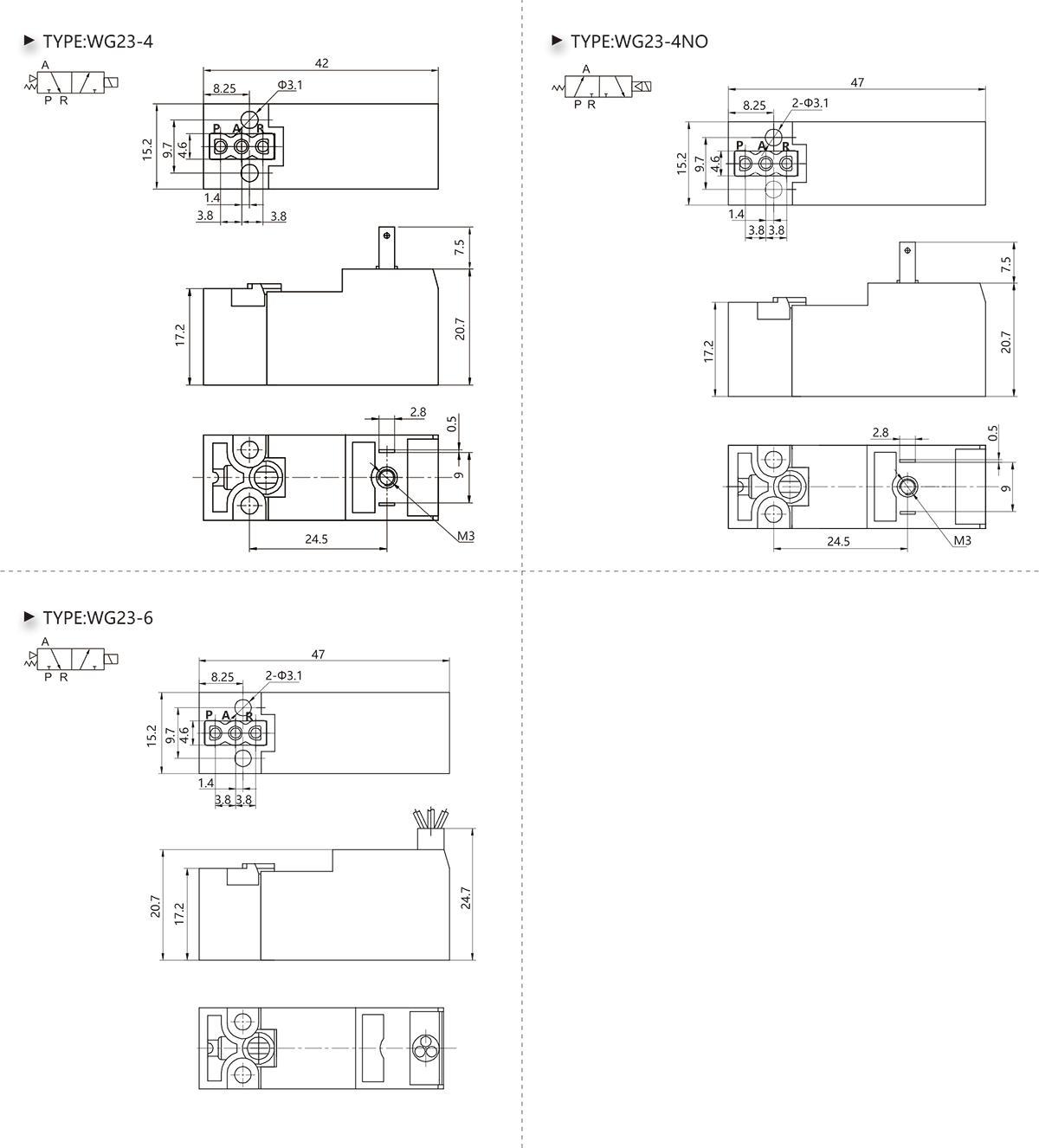

Overall Dimension

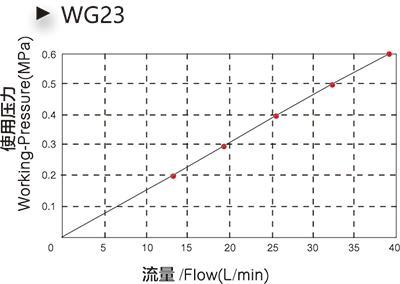

Flowing Character
