Product Description

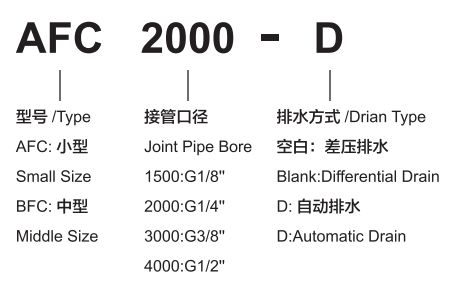

Ordering Code

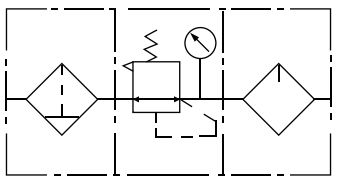

GraPhic symbol

Specification

Model		AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Operating Fluid		Air
Joint Pipe Bore		G1/8	G1/4	G1/4	G3/8	G1/2
Filtering Eliment Roughness		40μ
Range of Adjustable Pressure		0.05~0.85MPa
Max.Adjustable Pressure		0.95MPa
Ensured Pressure Resistance		1.5MPa
Operating Temperature Range		5~60℃
Capacity of Filter Cup		15cc		60cc
Capacity of Oil Feed Cup		25cc		90cc
Suggested Lube		ISO VG32 or Same Grade Oil
Weight		0.5kg		0.7kg
Material	Body	Aluminum Die-casting Fomring
	Container Cup	PE
	Proteclive Cup Cover	一		Iron
Composing Elements	Filter&Regulator	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

The Air Source Treatment Unit from Ningbo LIDA is a professional pneumatic FRL assembly that prepares compressed air for reliable system performance. It integrates a filter, regulator, and lubricator (FRL) to remove moisture, oil, and particles, regulate air pressure, and supply controlled lubrication to downstream pneumatic components. Built with durable aluminum bodies and clear bowls for easy monitoring, this unit enhances the efficiency and lifespan of cylinders, valves, and tools in industrial automation, packaging, and machinery systems requiring clean, stable air supply.

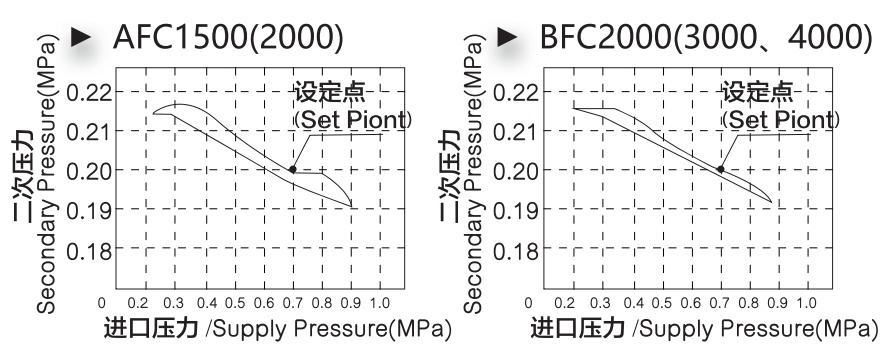

Pressure Character

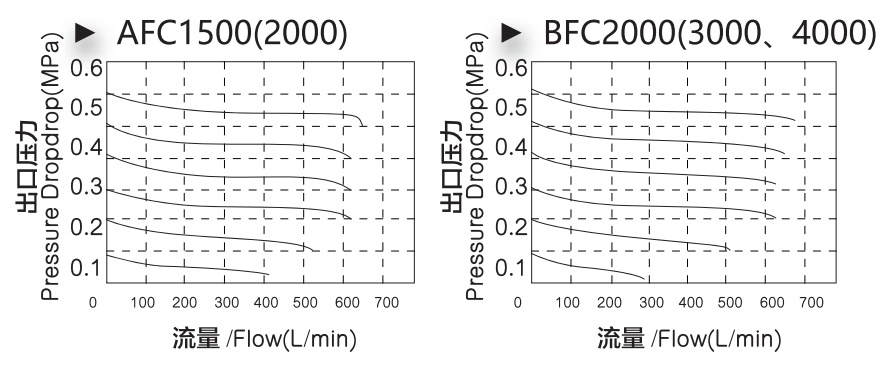

Flowing Character

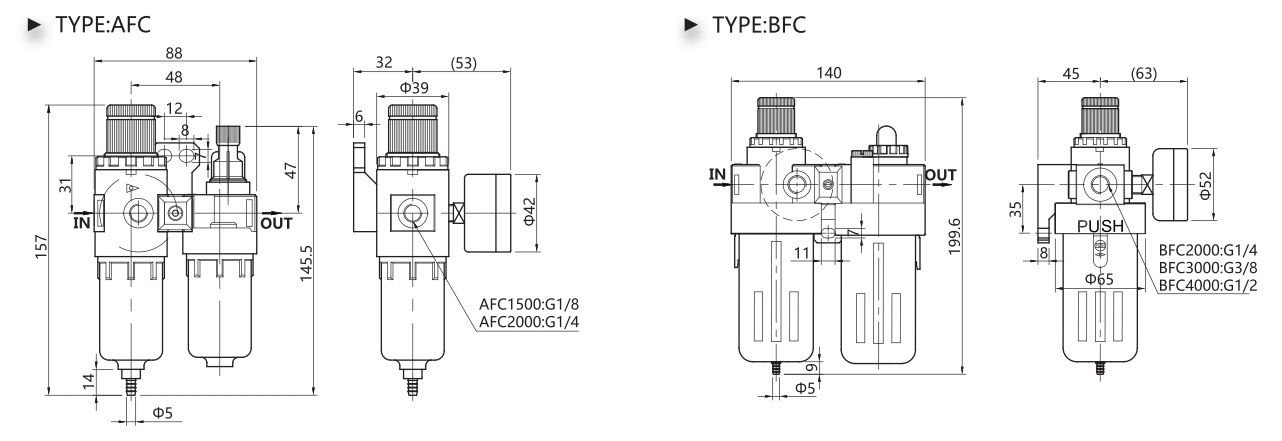

Overall Dimension
