QTY SERIES REGULATOR
To Provide Better Pneumatic Products For Automatic Equipment Industry
Product Description

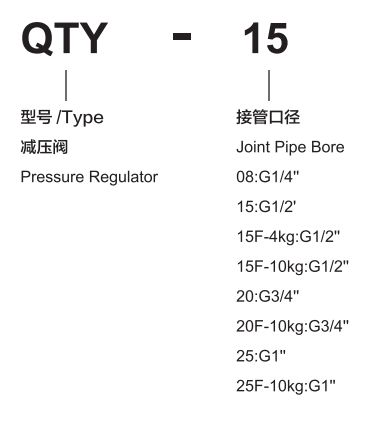

Ordering Code
GraPhic symbol
Specification
| Model | QTY-08 | QTY-15 | QTY-15F-4KG | QTY-15F-10KG | QTY-20 | QTY-20F-10KG | QTY-25 | QTY-25F-10KG |
| Operating Fluid | Air | LPG | Air | LPG | Air | LPG | ||
| Joint Pipe Bore | G1/4 | G1/2 | G1/2 | G1/2 | G3/4 | G3/4 | G1 | G1 |
| Range of Adjustable Pressure | 0.05~1.0MPa | 0.05~0.4MPa | 0.05~1.0MPa | 0.05~1.0MPa | ||||
| Max.Adjustable Pressure | 1.0MPa | 0.4MPa | 1.0MPa | 1.0MPa | ||||
| Operating Temperature Range | 5~80℃ | |||||||

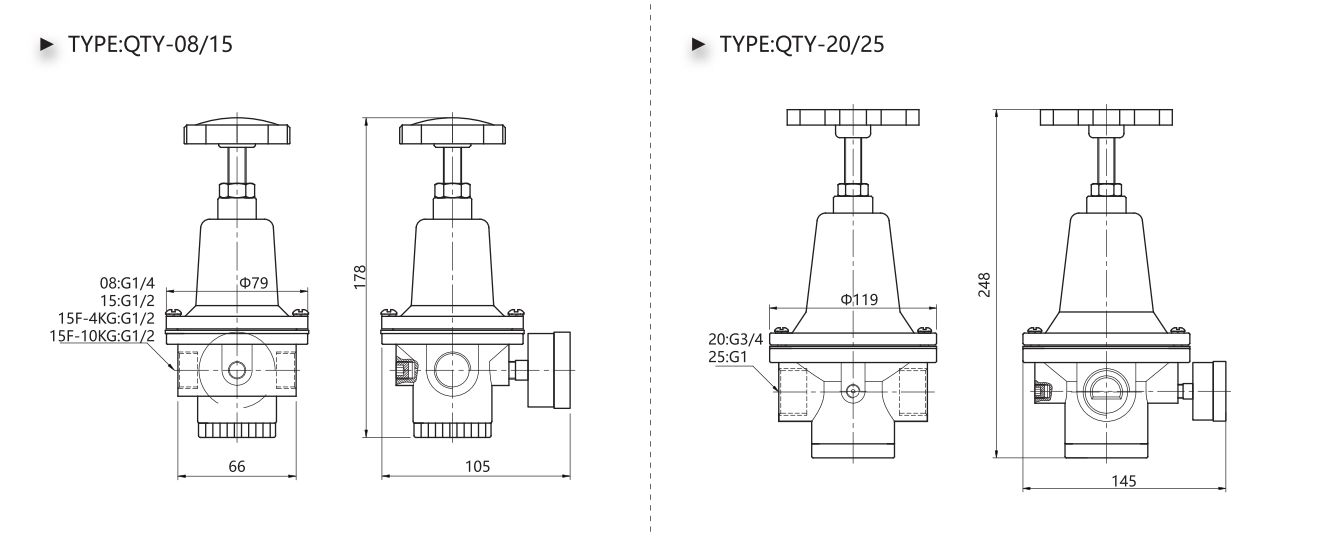

Overall Dimension
Air Pressure Regulator is a control device designed to maintain and adjust air pressure within pneumatic systems to ensure stable and safe operation. It automatically reduces high inlet pressure to a consistent downstream pressure, protecting equipment from pressure fluctuations and improving system performance. The Air Pressure Regulator features precise adjustment capability, reliable sealing, and durable construction, typically made from aluminum alloy, brass, or engineering plastics. It is widely used in industrial automation, air compressors, pneumatic tools, machinery, and manufacturing systems. With stable output and easy adjustment, the Air Pressure Regulator ensures efficient and safe compressed air usage.
